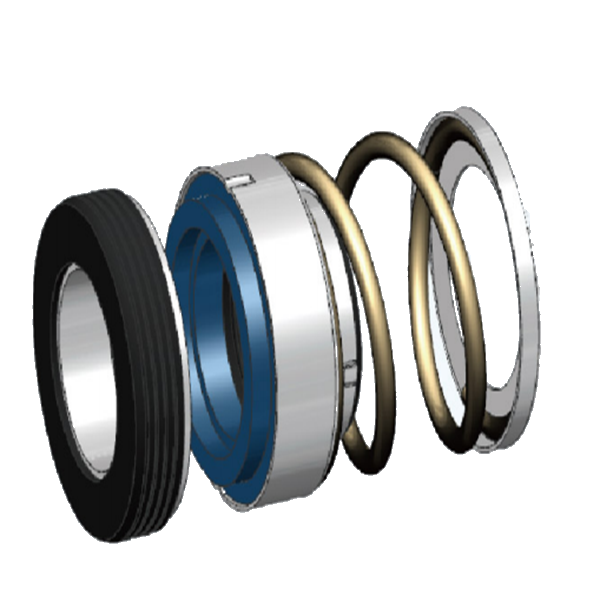

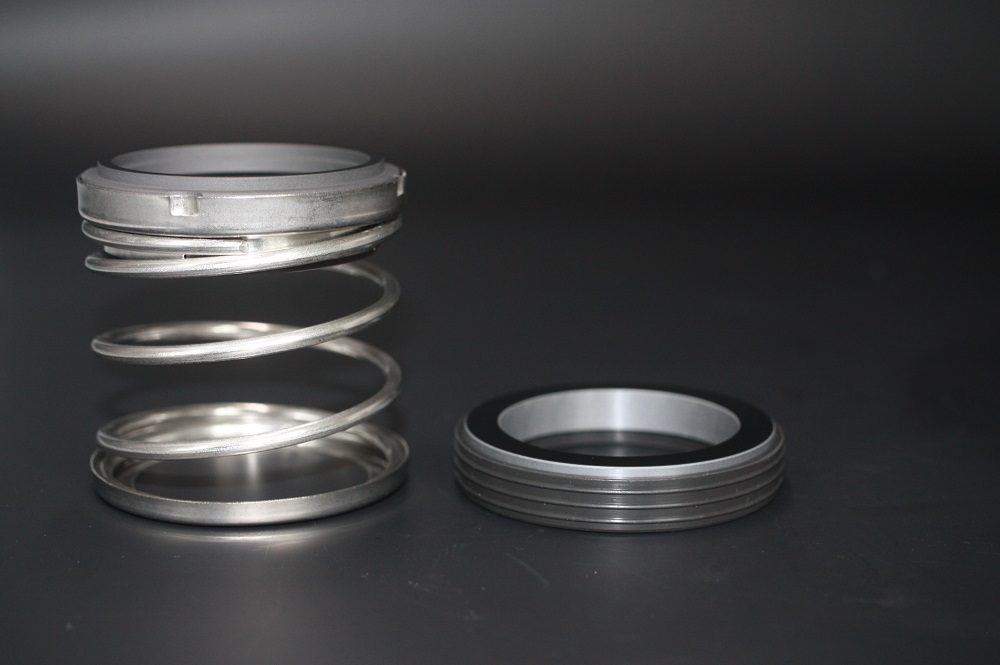

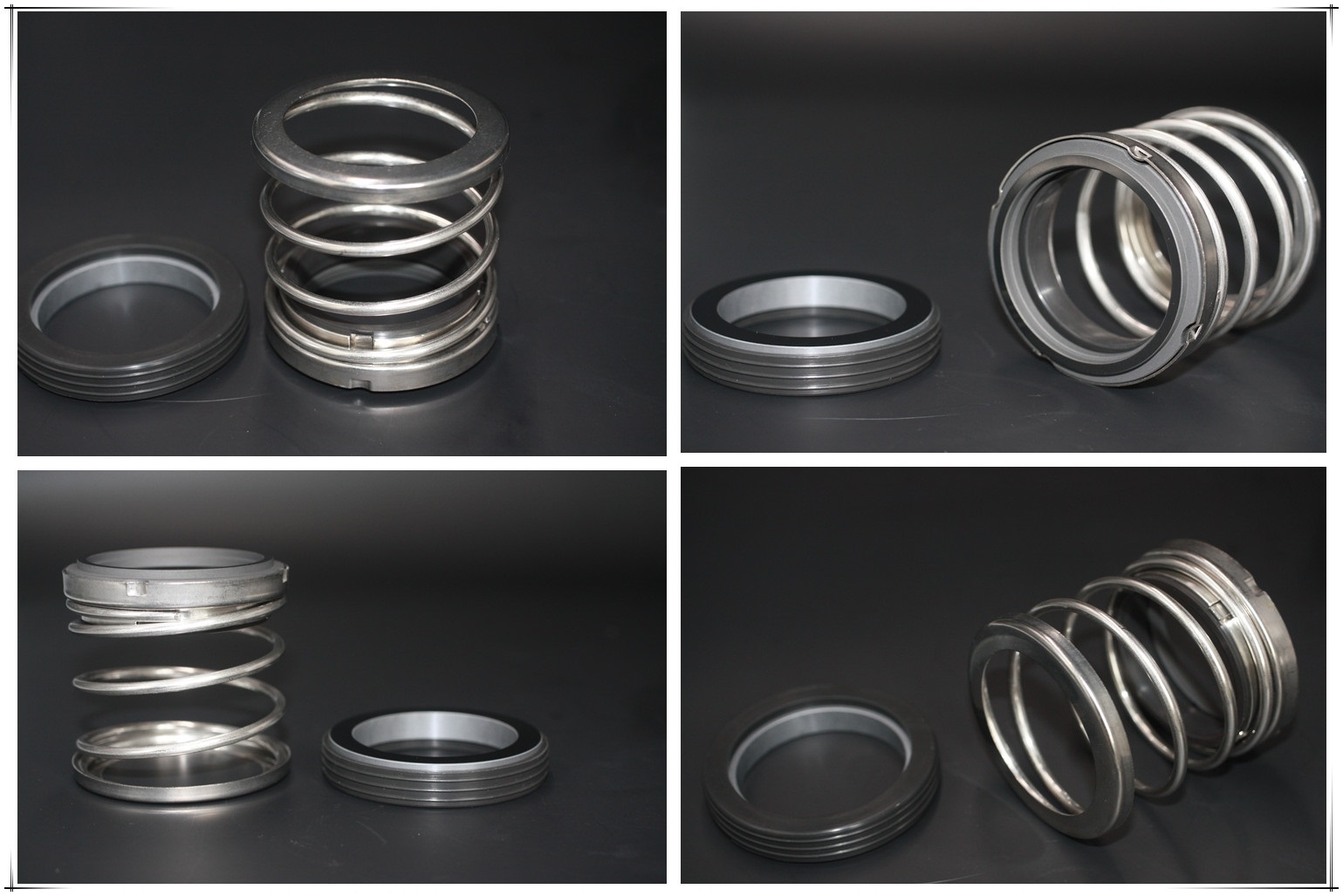

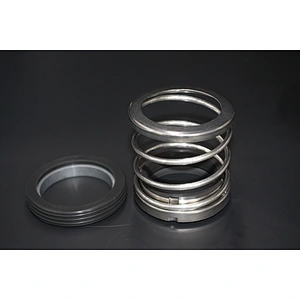

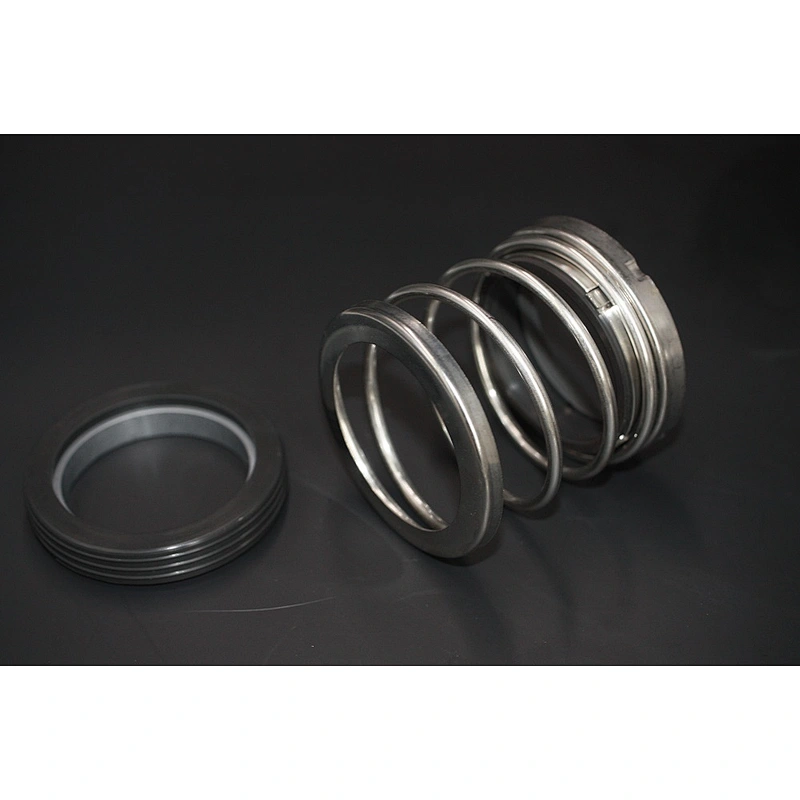

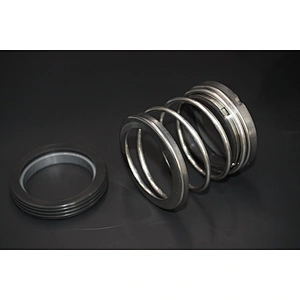

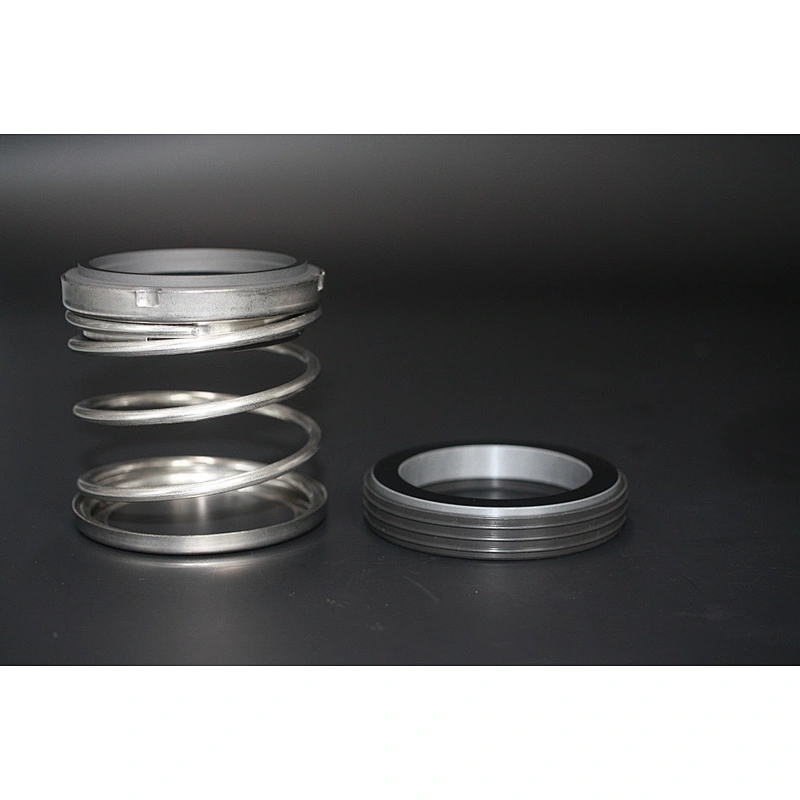

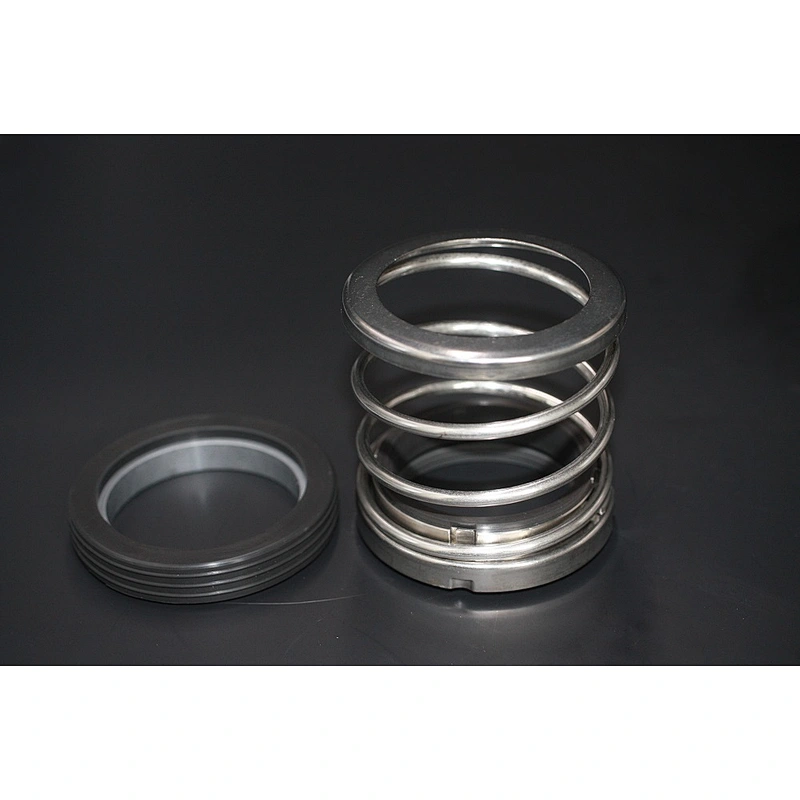

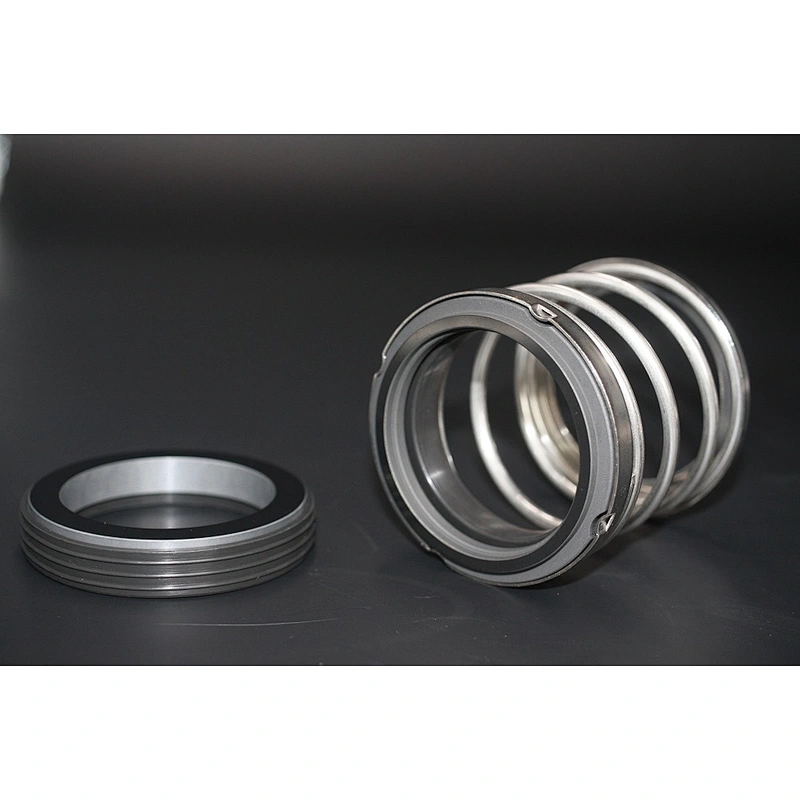

AS-E21 эластомерное сильфонное механическое уплотнение,

Suggested operating limits

Temperature: -20 ～120℃

Speed: ≤15m/s

Pressure≤1.0Mpa

Combined material

Rotary face: Carbon/Sic/TC

Stat Ring: Ceramic/Sic/TC

Seat Type:Standard AS-S11, Alternative AS-S20/S21.

Features

The drive band's"dent and groove"design eliminates overstressing of the elastomer bellows to prevent bellows slip and protect the shaft and sleeve from wear.

Non-clogging, single-coil spring provides greater dependability than multiple spring designs and will not foul due to fluid contact.

Flexible elastomer bellows automatically compensates for abnormal shaft-end play, run-out, primary ring wear and equipment tolerances.
