Suggested operating limits
Temperature: -20 - 120℃
Speed: ≤15m/s
Pressure≤1.8Mpa
Combined material
Rotary face: Carbon/Sic/TC
Stat Ring: Ceramic/Sic/TC
Seat Type:Standard AS-S210,Alternative AS-S60/SBS.
Features:
Unitized construction allows for fast and easy installation and replacement. Design fits DIN24960, ISO 3069 and ANSI B73.1 M-1991 standards.
Innovative bellows design is pressure-supported and will not crease or fold under high pressure.
Non-clogging, single-coil spring keeps seal faces closed and properly tracking during all phases of operation.
Positive drive through interlocking tangs will not slip or break free during upset conditions.
Available in the widest array of material options, including high performance silicon carbides.
Recommended Application:
Process Pumps
Other Rotating Equipment
Description:

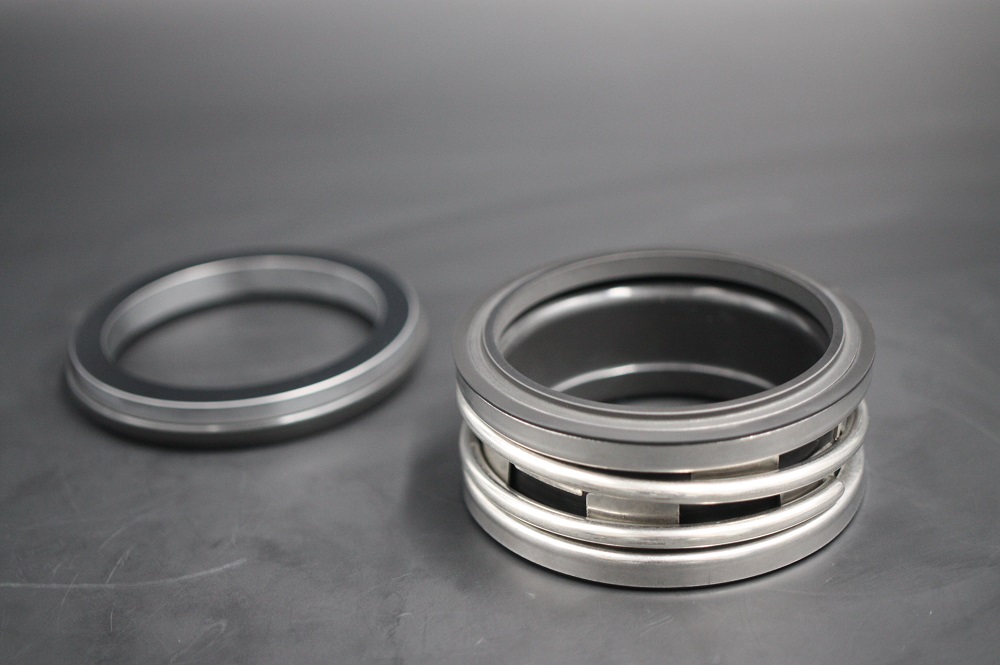

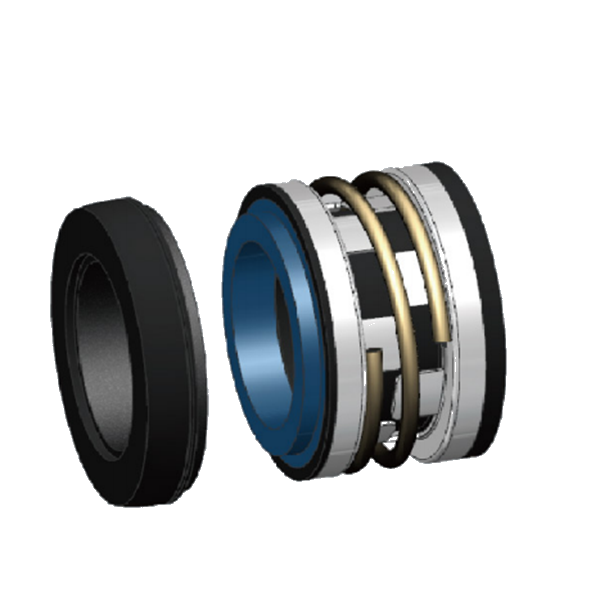

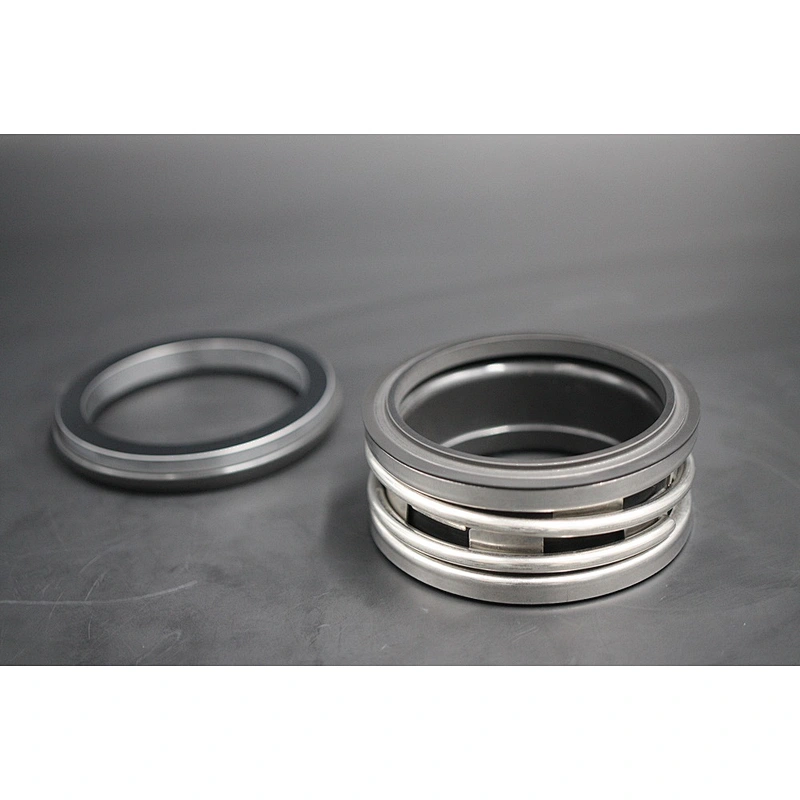

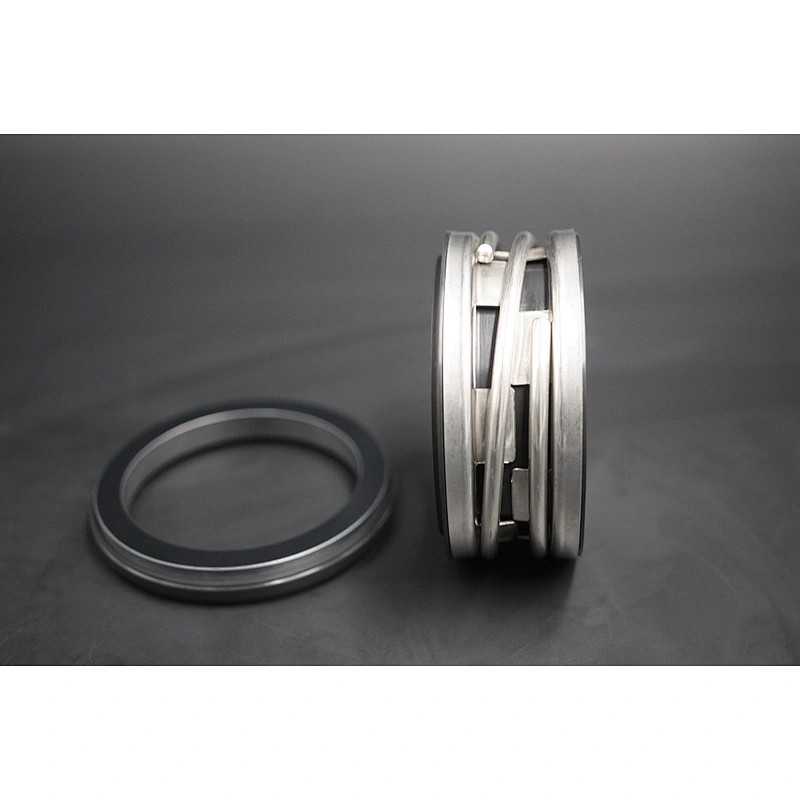

Elastomer bellow mechanical seal AS-E210, can be replacment of Johncrane 2100.
Designed for demanding applications, the Type 2100 mechanical seal is a compact, unitized, single-spring elastomer bellows seal that offers maximum durability and performance.
Ideal for use in centrifugal, rotary and turbine pumps, compressors, chillers and other rotary equipment
The Type 2100 is often found in water-based applications, such as wastewater treatment, potable water, HVAC, pool and spa and other general ap
