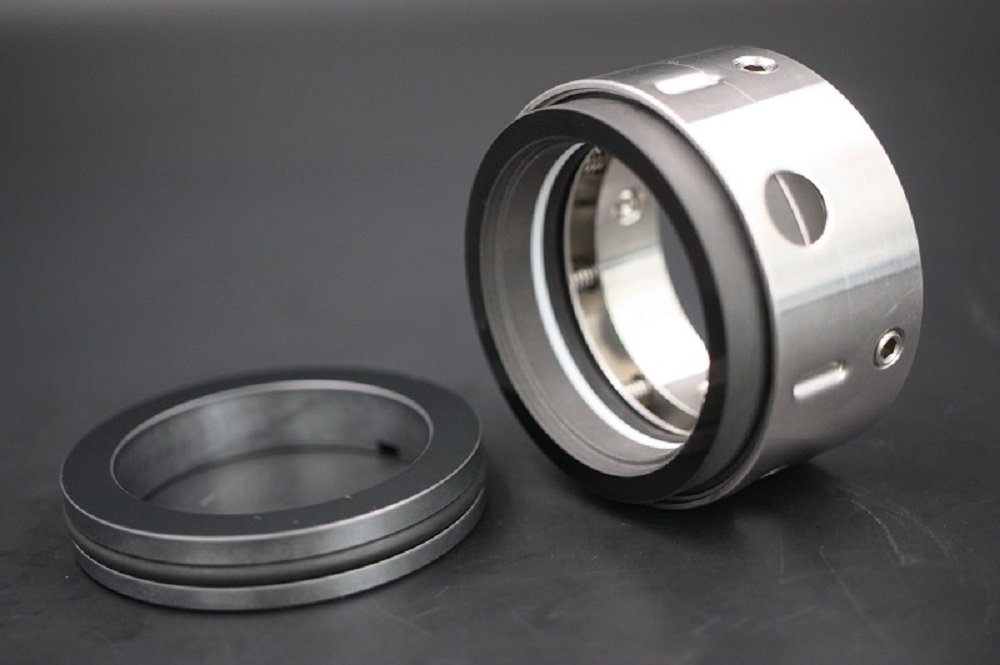

AS-R8-1 is a Multiple Spring Mechanical Seal with a highly effective ‘O’-Ring Mounted  design, commonly used in chemical and petrochemical duties. Frequently fitted along with the Type 25 clamped Stationary.

A PTFE backup ring is recommended to be specified for higher pressure ‘O’-Ring applications.

Features
Standard Multiple Spring, Grub Screw Mechanical Seal
Commonly used in Chemical and Petrochemical duties
Frequently fitted along with the Type 25 clamped Stationary.

Operating Limits
Temperature: -30°C to +140°C
Pressure: Up to 23 bar (333 psi)
