Suggested operating limits
Temperature: -30 ～ 210℃
Speed: ≤18m/s
Pressure≤1.2 Mpa

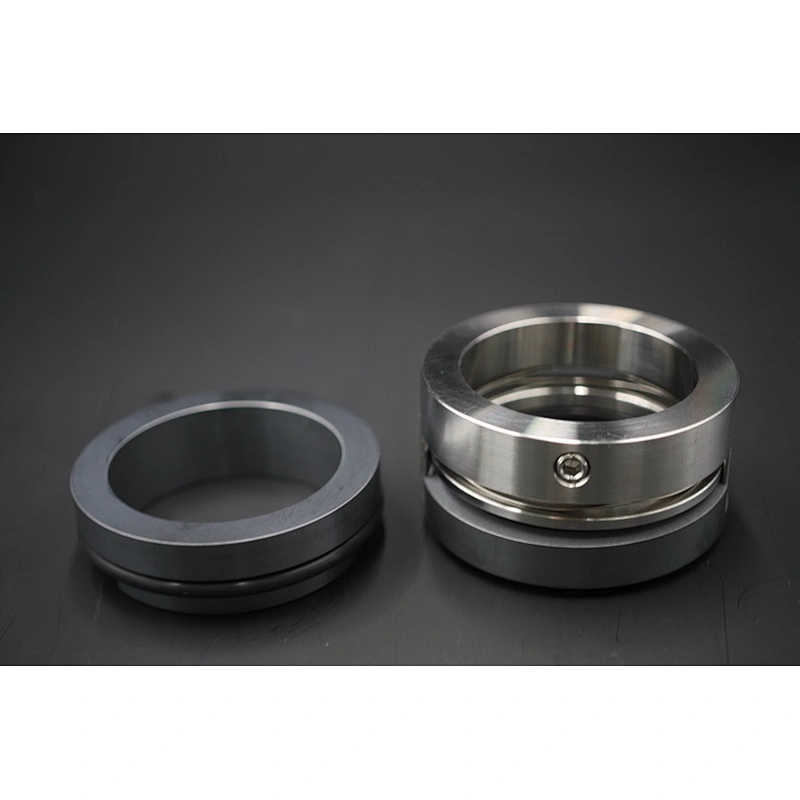

Combined material
Rotary face: Carbon/Sic/TC
Stat Ring: Carbon/Sic/TC
Seat Type:Standard Vulcan type 8DIN Long seat
Features:
Stainless steel head retainer and inserted face
Double wave spring for strength and reliability
Compact design for confined spaces
Minimal shaft wear

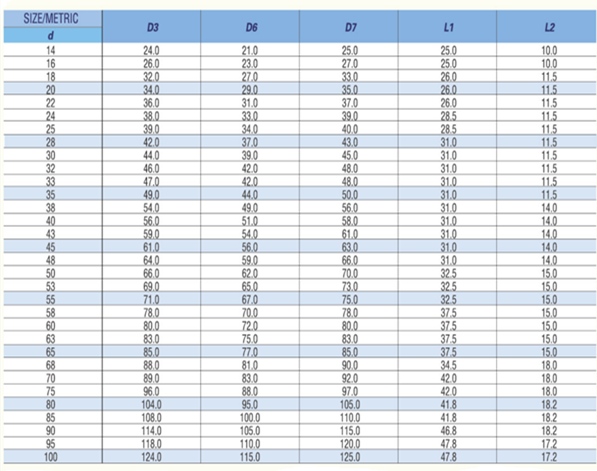

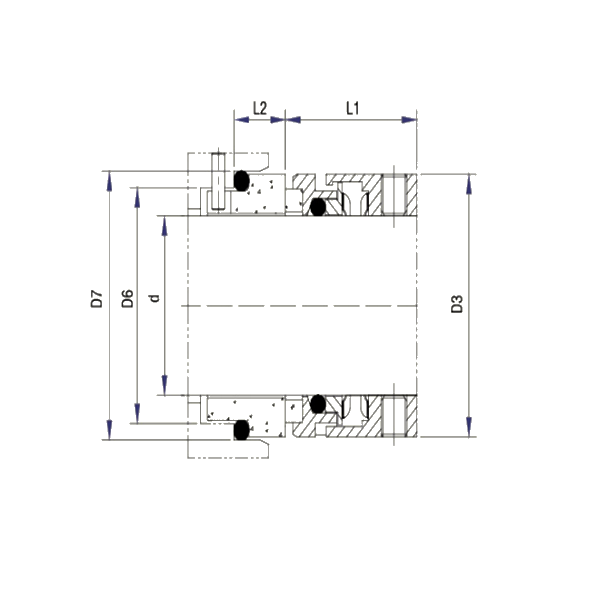

Suitable to DIN24960 (EN12756) dimensions
Advantages:
The one-piece double wave spring provides superior strength and reliability compared to welded multiple-part wave springs which are prone to breakage under pressure
Recommended applications
Commonly used in chemical process industries.
