Suggested operating limits
Temperature: -30 ～ 210℃
Speed: ≤18m/s
Pressure≤1.2 Mpa
Combined material
Rotary face: Carbon/Sic/TC
Stat Ring: Carbon/Sic/TC
Seat Type:Standard Vulcan type 8DIN Long seat
Features
⑴Double wave spring for strength and reliability
⑵Compact design for confined spaces
⑶Minimal shaft wear
Advanages
The monolithic dual wave spring provides excellent strength and reliability compared to welded multiple-part wave springs which are easily broken under pressure
Recommended applications
⑴Commonly used in chemical process industries.
⑵Widely used and highly reliable in food, drink, petroleum, chemistry, refinery, paper making, pharmacy, power and auto industry etc.
Background Knowledge：

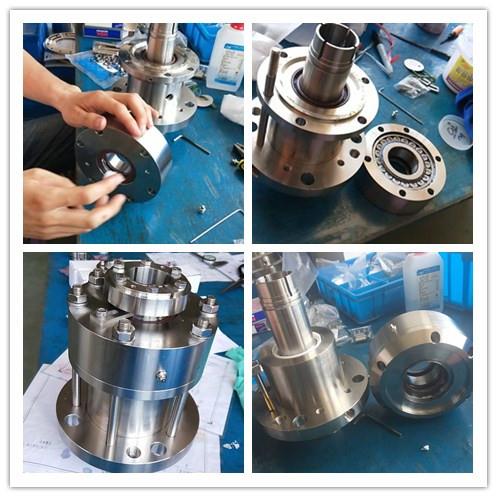

Agitator seal for Pharmaceutical industry
Asinoseal,as a professional mechanical seal manufacturer in China, is more focused on agitator seal design,production and on-site service. Here’s a show for the agitator seal in Pharmaceutical industry,with NSK bearing inside,Dupont kalrez o ring,import oil seal,Silicone Fep,Basic seal inside is similar to Johncrane 58U mechanical seal design...
While for most of the asinoseal agitator seals,they are designed especially according to customer’s requirement,if you have special requirement on them,let us work it together!
