Commonly used materials of main parts of mechanical seals

09/11/2021
Mechanical seals are made of several parts and their individual materials are chosen according to their corresponding functions. Commonly used materials of main parts of mechanical seals are divided into four categories：friction pair（rotary face and stationary seat）material，secondary seal material，elastic element material and other material.The following has listed friction pair material and secondary seal material according to different（medium，concentration，temperature）working conditions.

Working condition Friction pair Secondary seal
Medium Concentration temperature/℃ Rotary face Stationary seat
Clean water room temperature Carbon Ceramic，High nickel cast iron，Cobalt chromium tungsten surfacing Nitrile rubber
river water (Containing silt) Tungsten carbide，silicon carbide Tungsten carbide，silicon carbide Nitrile rubber
Sea water Carbon Ceramic，Tungsten carbide Nitrile rubber
Gasoline -20～80 Carbon High nickel cast iron，Tungsten carbide，Ceramic fluororubber
80～135 PTFE
kerosene -20～80 Carbon High nickel cast iron，Tungsten carbide，Ceramic Nitrile rubber
80～200 fluororubber，PTFE
diesel fuel -20～80 carbon High nickel cast iron，Tungsten carbide，Ceramic Nitrile rubber
80～200 fluororubber，PTFE
Engine oil -20～30 carbon High nickel cast iron，Tungsten carbide，Cobalt chromium tungsten surfacing，bronze，Ceramic Nitrile rubber
Crude oil -20～135 carbon Tungsten carbide，Ceramic fluororubber
135～200 PTFE
（Containing impurities） -20～135 Tungsten carbide Tungsten carbide fluororubber
135～200 PTFE
Light hydrocarbons -20～80 carbon Tungsten carbide fluororubber，PTFE
sulfuric acid <10% -20～80 carbon Ceramic fluororubber
>10% -20～135 Filled PTFE PTFE
Nitric acid <5% -20～80 carbon Ceramic，High silicon cast iron fluororubber
>5% Filled PTFE Ceramic PTFE
acetic acid <30% -20～135 Filled PTFE Ceramic Ethylene Propylene Rubber，PTFE
>30% carbon PTFE
Alkali -20～80 carbon，filledPTFE High nickel cast iron，Ceramic，Tungsten carbide Ethylene Propylene Rubber
80～200 PTFE
Food -20～80 carbon Ceramic Nitrile rubber
Vegetable oil -20～80 carbon High nickel cast iron，Ceramic Ethylene Propylene Rubber，PTFE
Organic matter -20～80 carbon Tungsten carbide，cast iron，Cobalt chromium tungsten surfacing Ethylene Propylene Rubber，PTFE

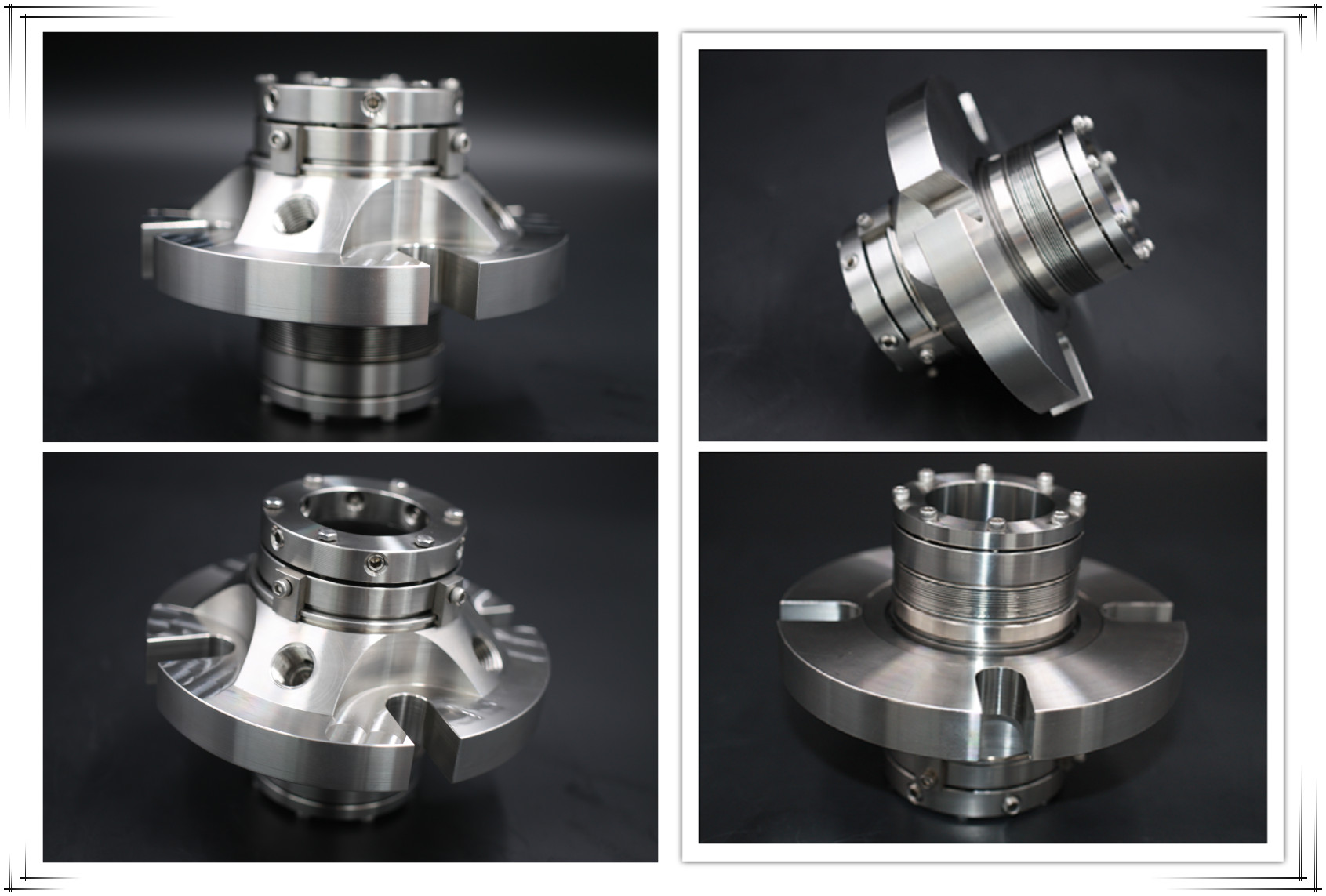

mechanical seal for water pump，mechanical seal pump，pump seals，water pump mechanical seal
