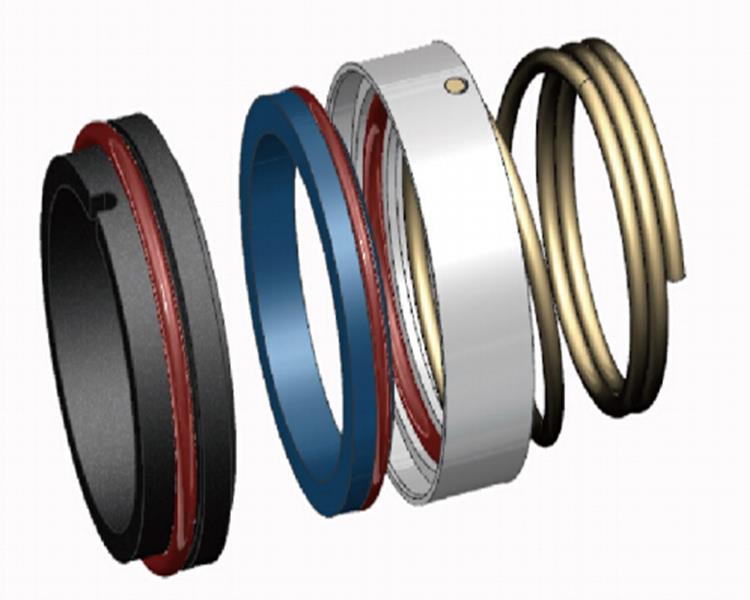

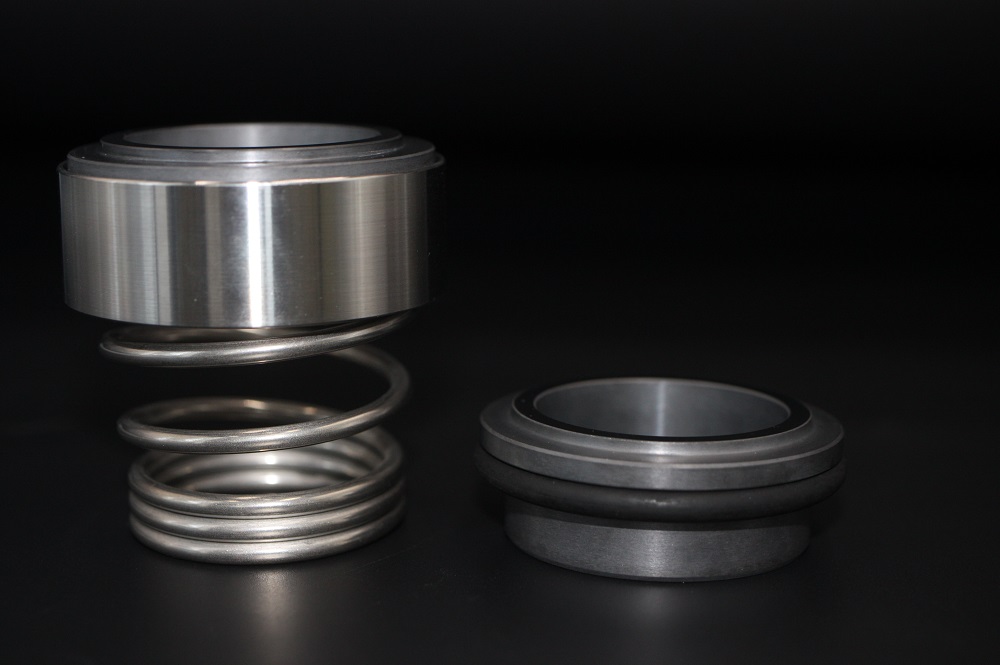

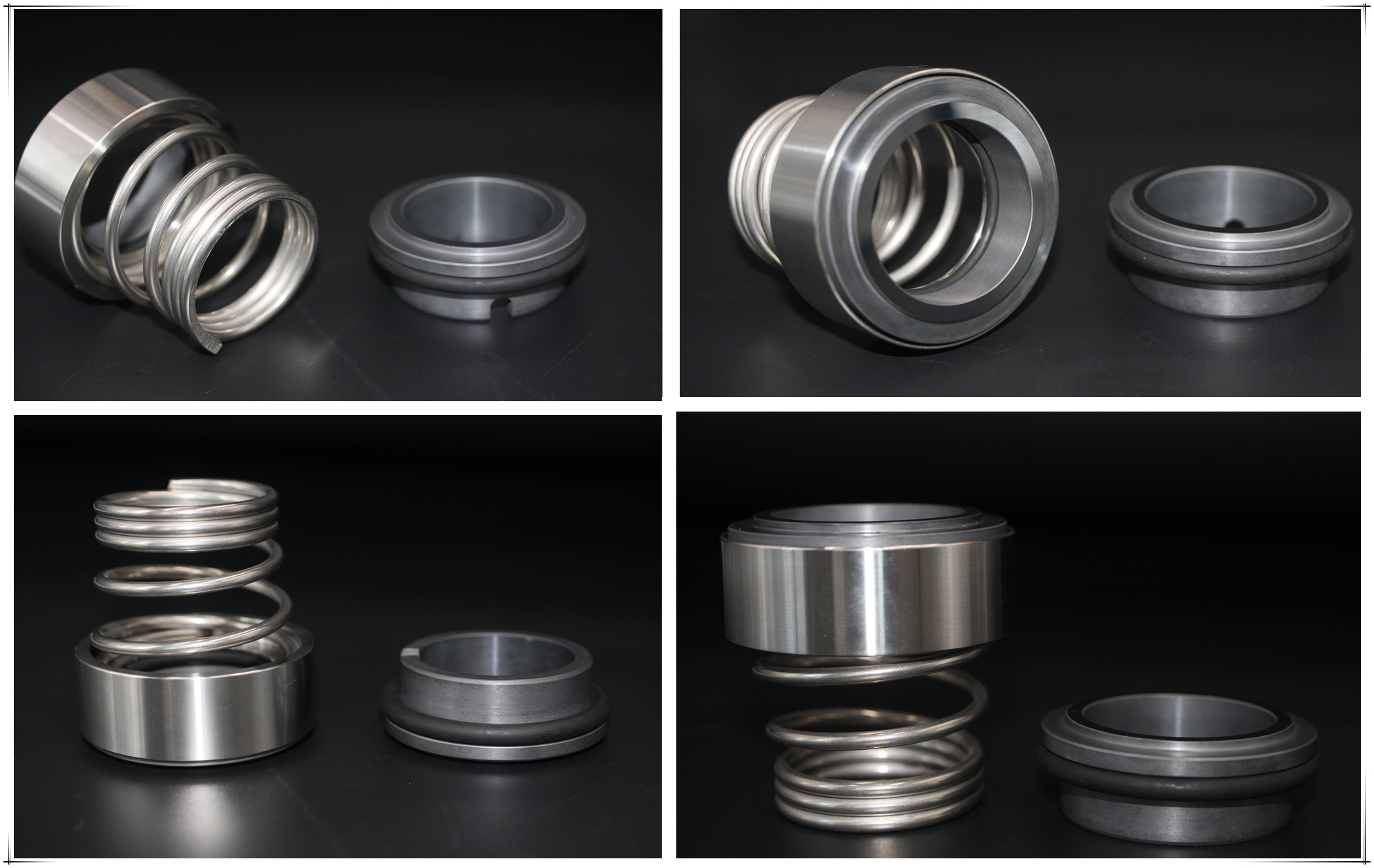

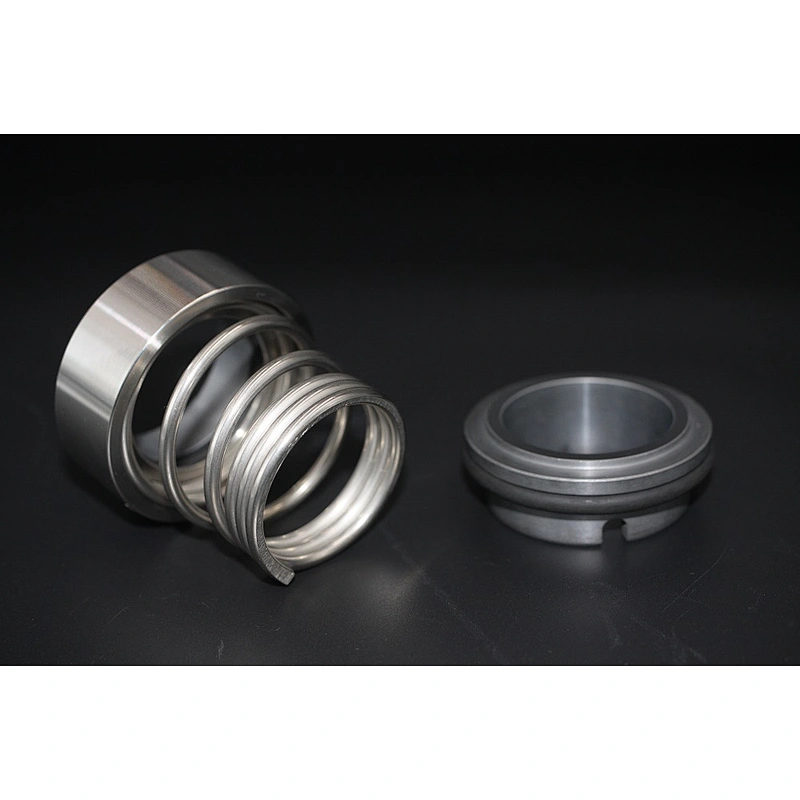

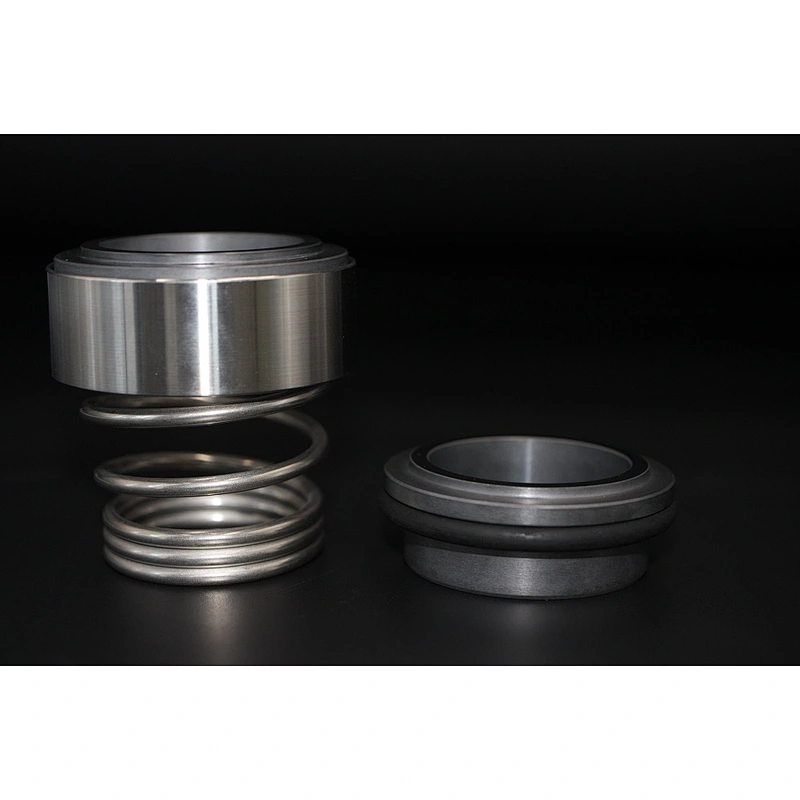

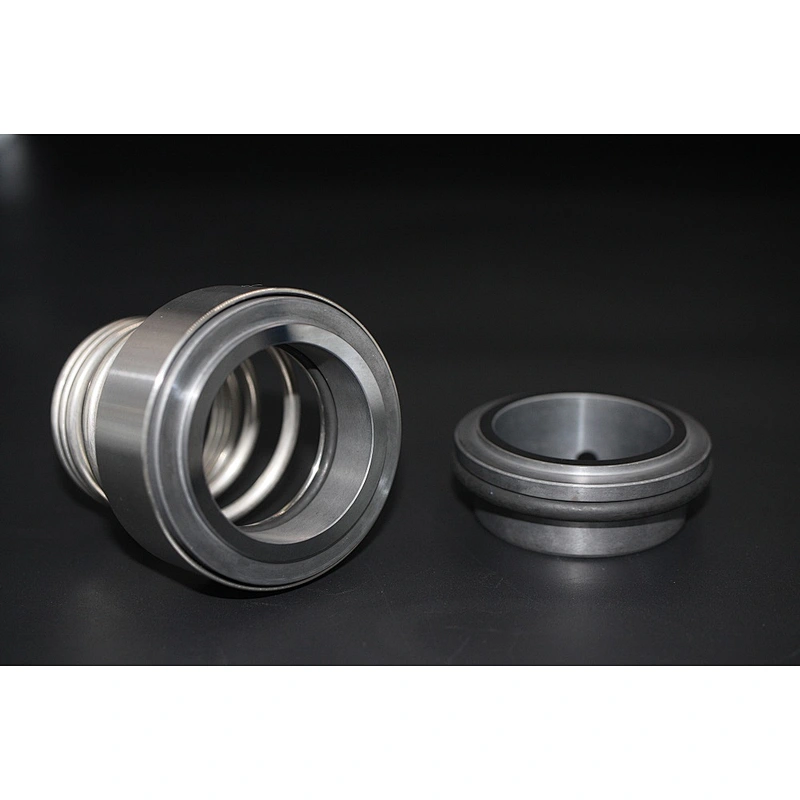

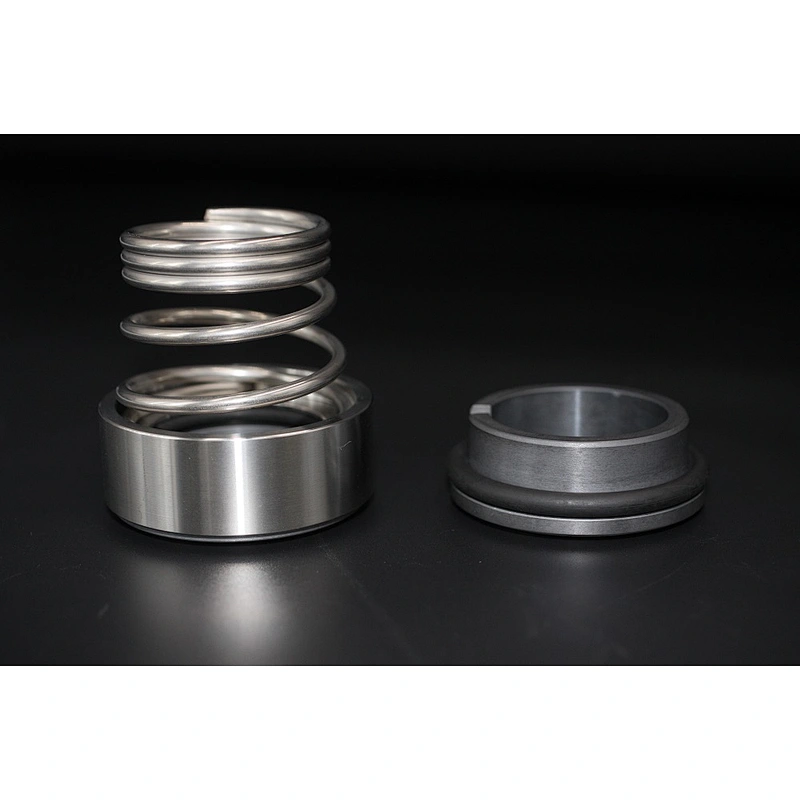

AS-RT5 seal is to replace Roten Type 5 Conical Spring Mechanical Seal.
Suggested operating limits
Temperature:-20℃~180℃
Speed:≤15m/s
Pressure:≤1.6Mpa
Combined material
Rotary face:Stainless steel/Carbon/Sic/Tc
Stat Ring:Carbon/Ceramic/Sic/Tc
Description：
Possible to replace only the wearing faces during overhauls
Great versatility particularly for heavy duties
Very resilient in reducing the effects of vibration & misalignment of the machine where it is installed.
Temperature:-20℃~180℃
Speed:≤15m/s
Pressure:≤1.6Mpa
Combined material
Rotary face:Stainless steel/Carbon/Sic/Tc
Stat Ring:Carbon/Ceramic/Sic/Tc
Description：
Possible to replace only the wearing faces during overhauls
Great versatility particularly for heavy duties
Very resilient in reducing the effects of vibration & misalignment of the machine where it is installed.
Send Message
Related Products
Model NO. AS-R1653
Model NO. AS-R155

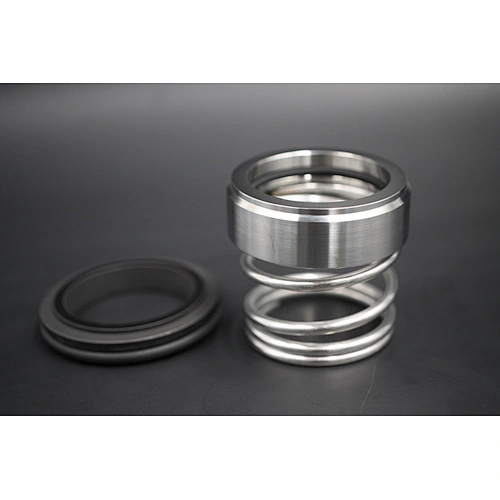

Model NO. AS-R12
