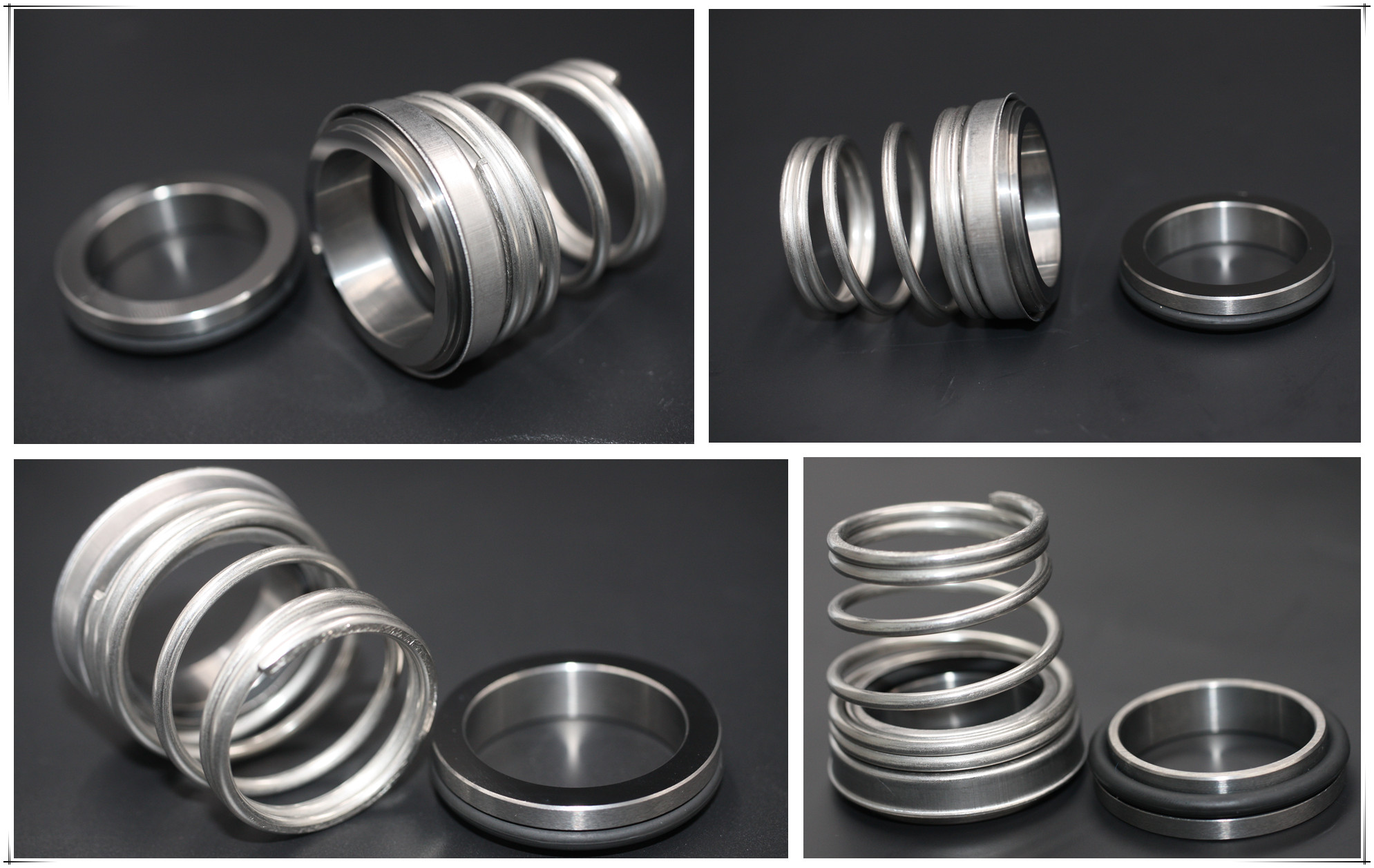

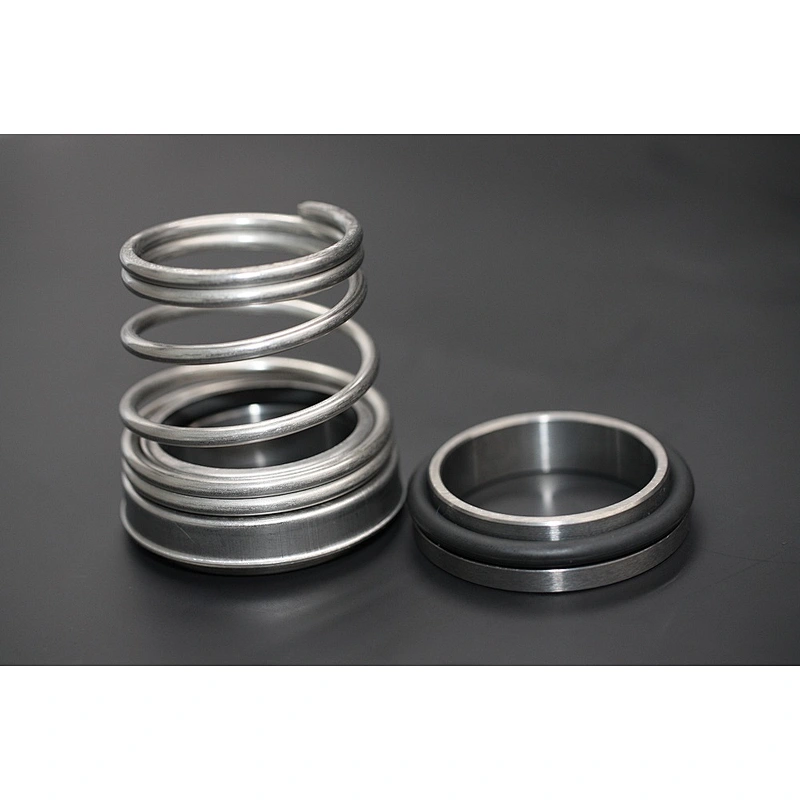

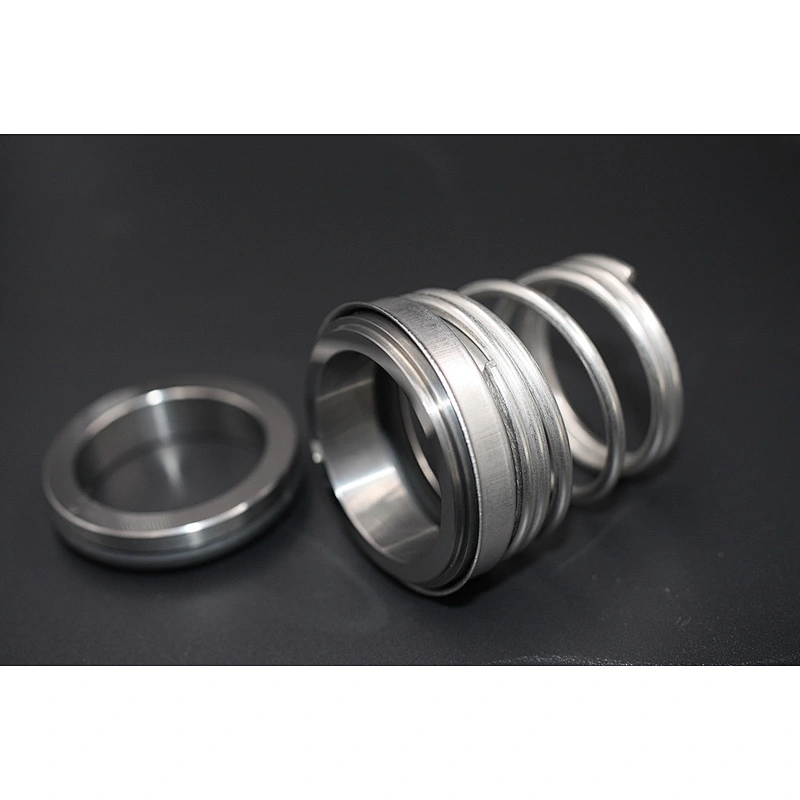

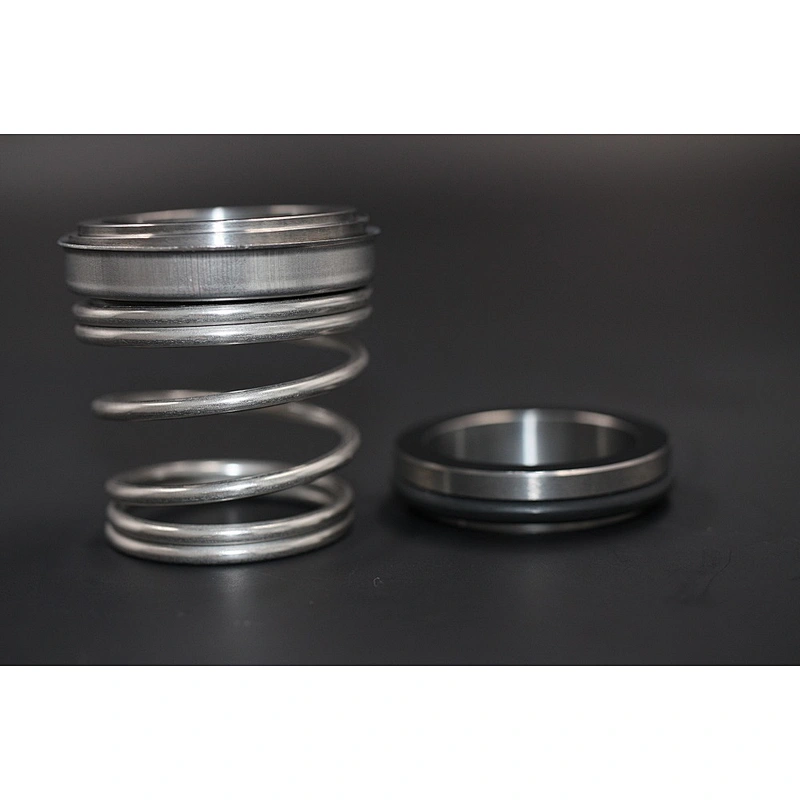

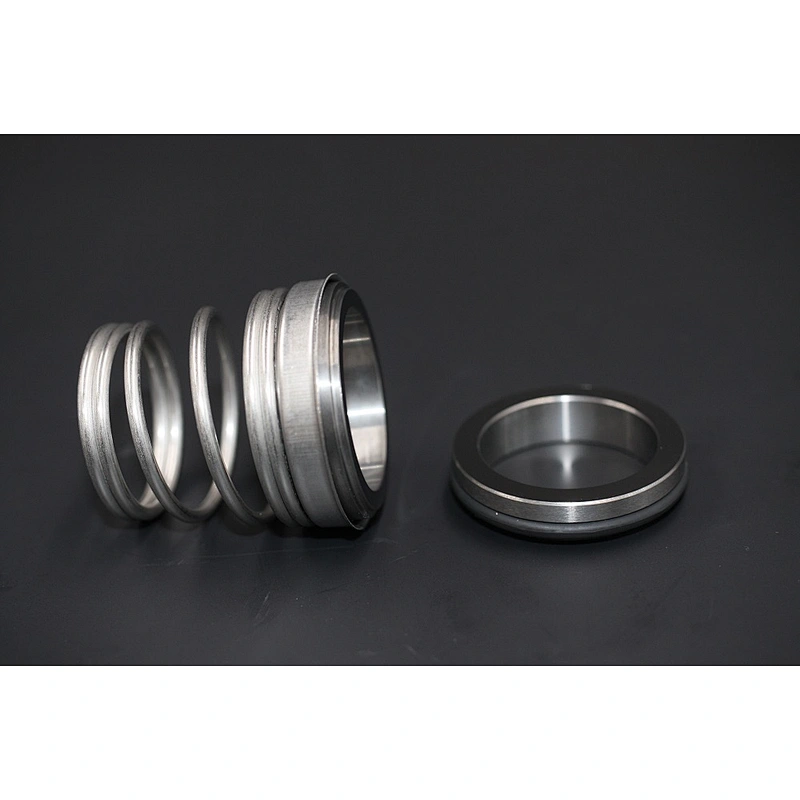

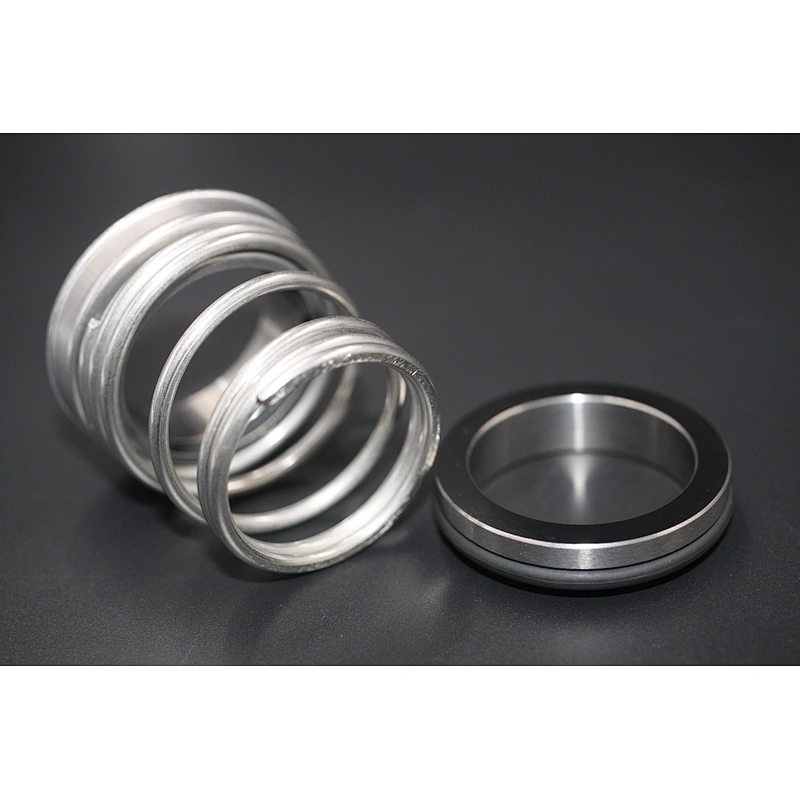

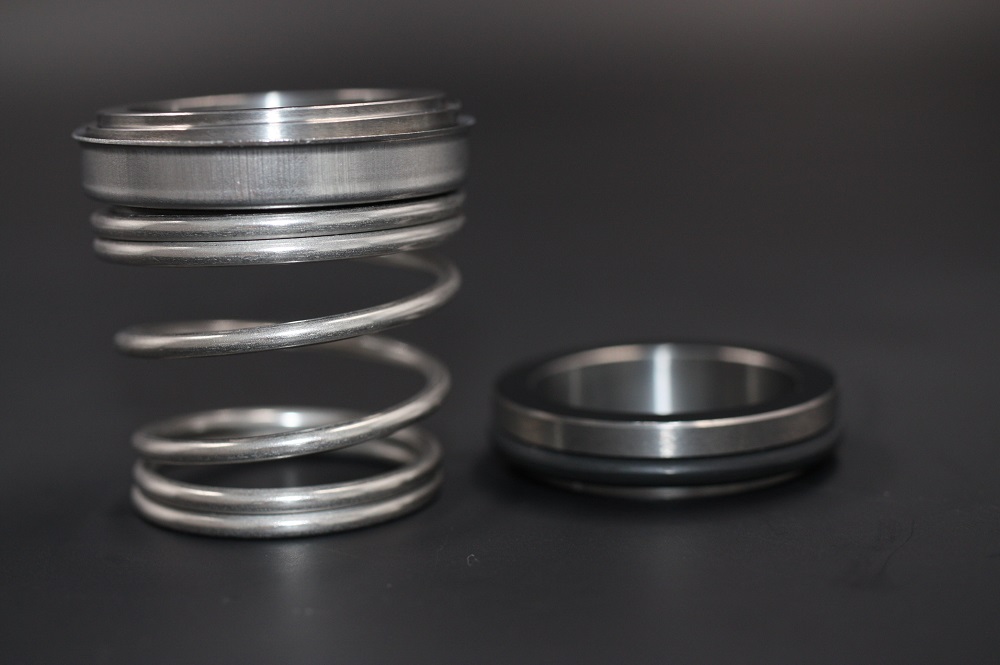

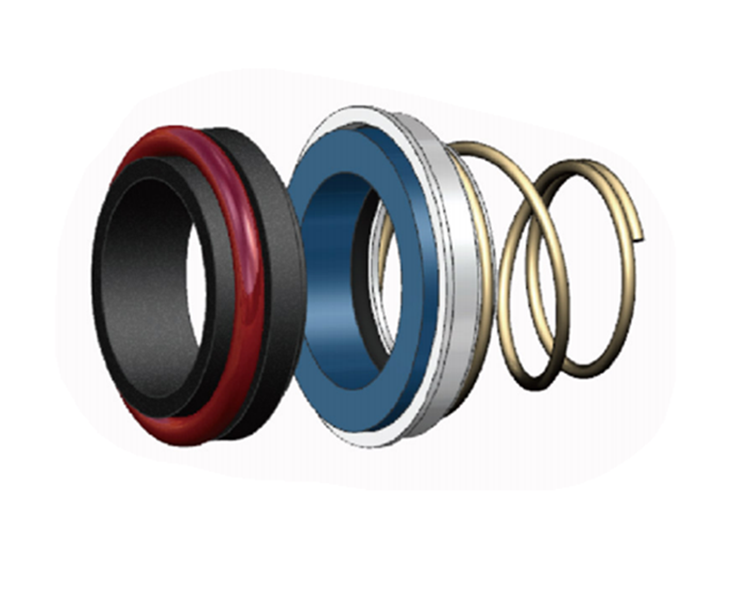

AS-R155

SUGGESTED OPERATING LIMITS

Temperature:-20℃~180℃

Speed:≤10m/s

Pressure:≤1.0Mpa

COMBINED MATERIAL

Rotary face:Ceramic/Sic/Tc

Stat Ring:Carbon/Sic/Tc


Features：
Single pusher-type seal
Unbalanced
Conical spring
Dependent on direction of rotation

Advantages:
AS-R155 seal，combining a spring loaded ceramic seal face and the traditional pusher mechanical seal design，are suitable for a wide range of applications. The seal is produced with punched metal parts that allow an economical design，making it quite cost-effective.
AS-R155 mechanical seals are also ideal suitable for light chemicals media applications. （To ensure that it has best reliable performance,a material combination of hard material sliding faces and proper elastomer O-Rings are recommended.）

Recommended applications：
Building services industry
Household appliances
Centrifugal pumps
Clean water pumps
Pumps for domestic applications and gardening
