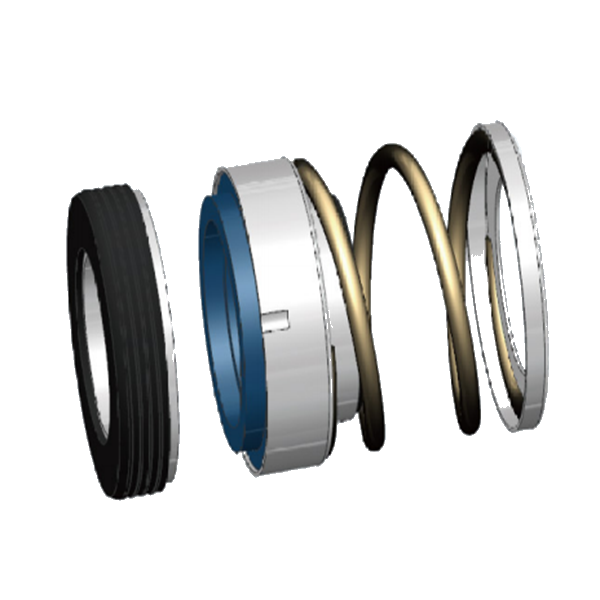

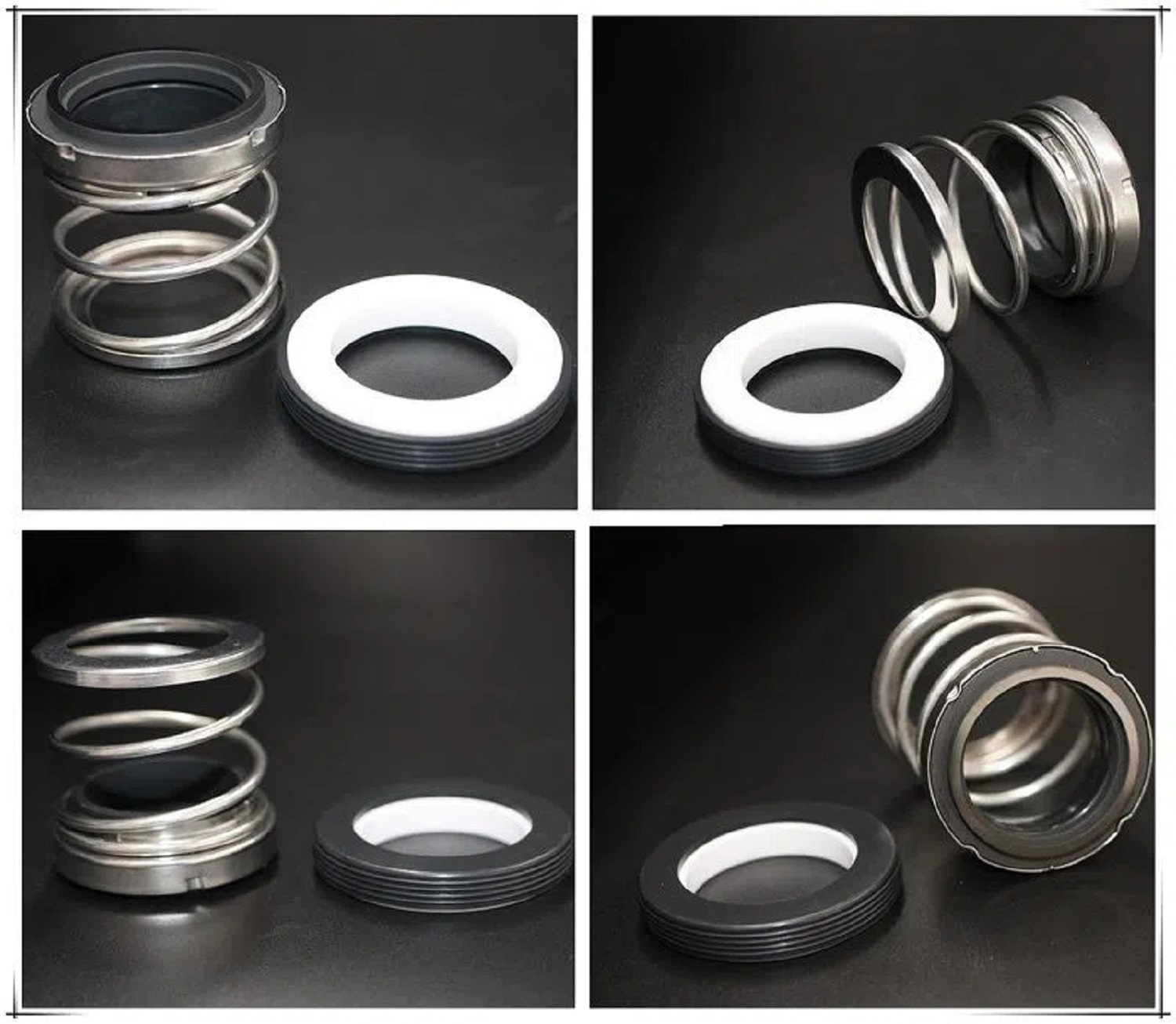

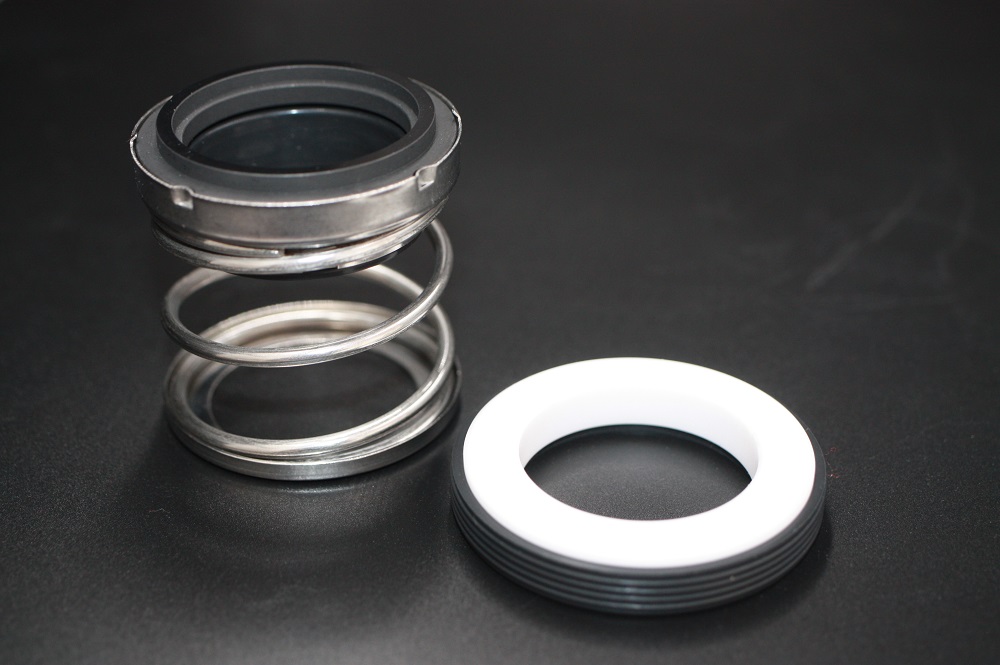

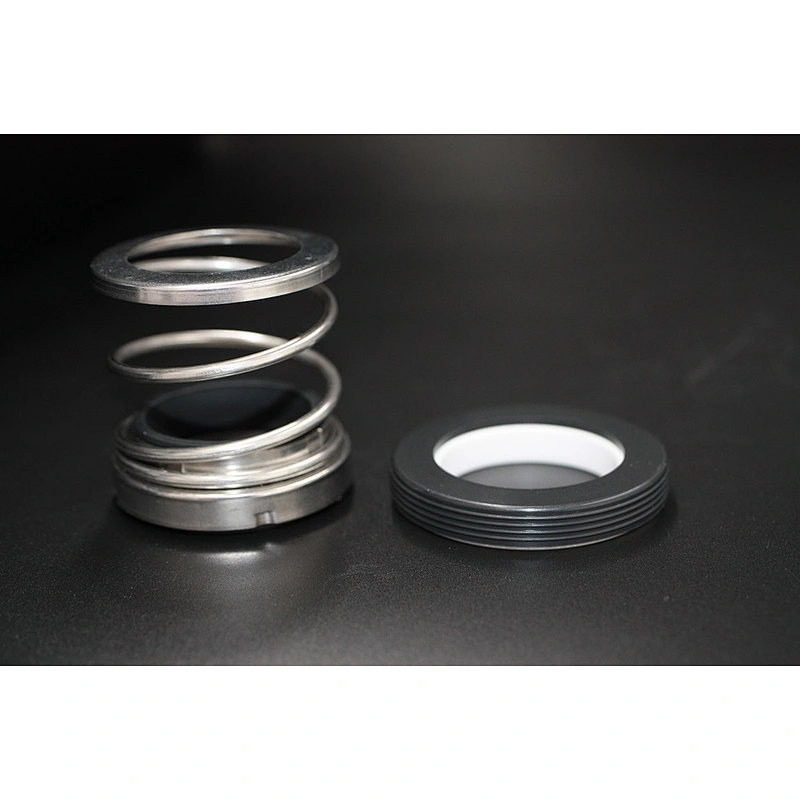

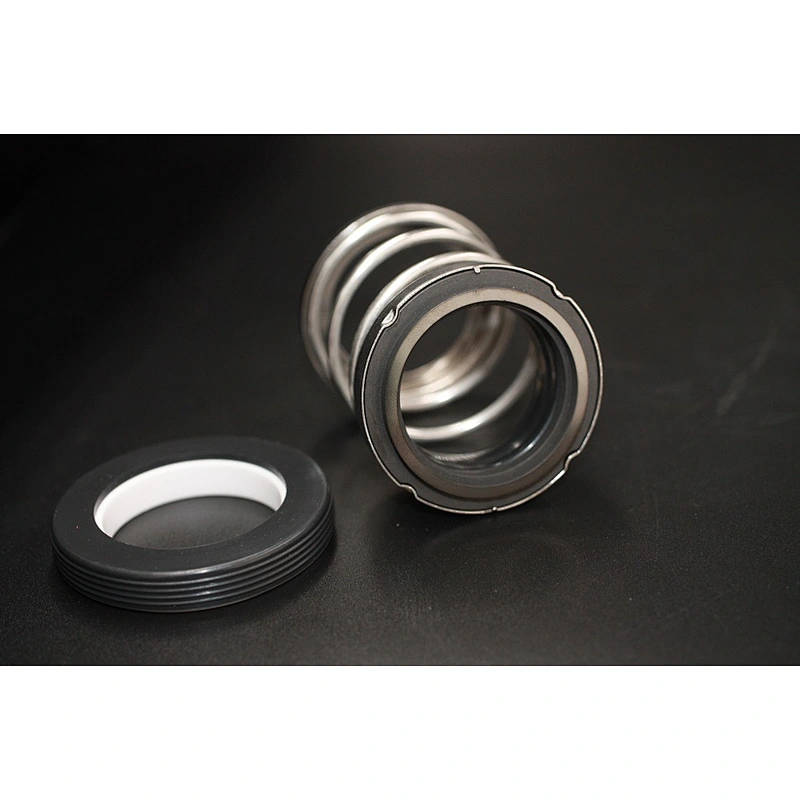

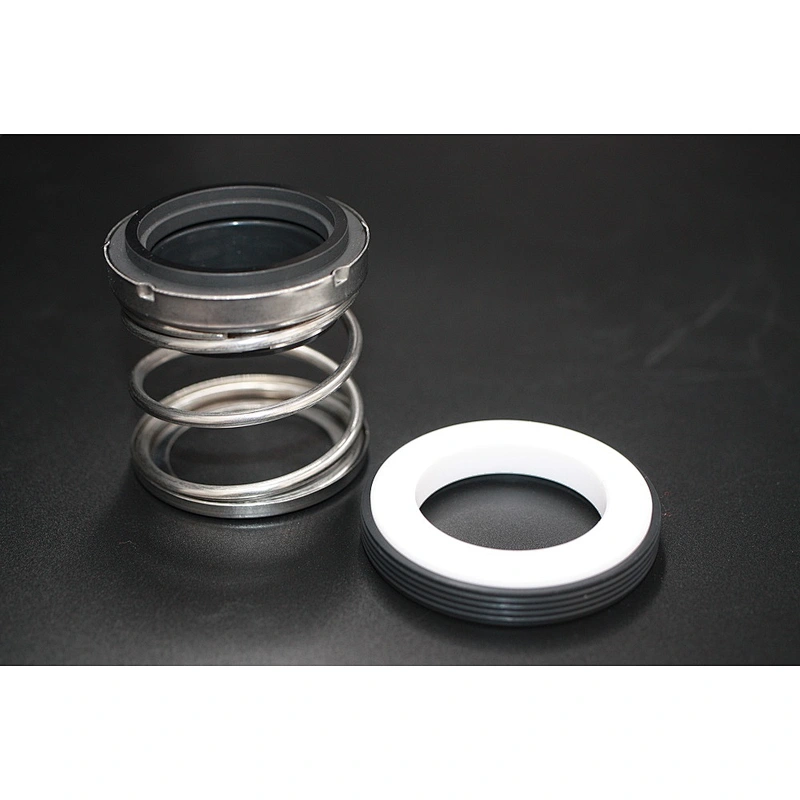

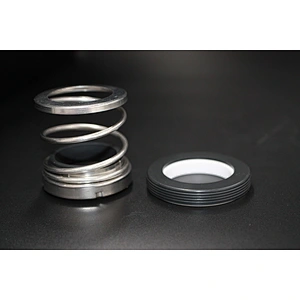

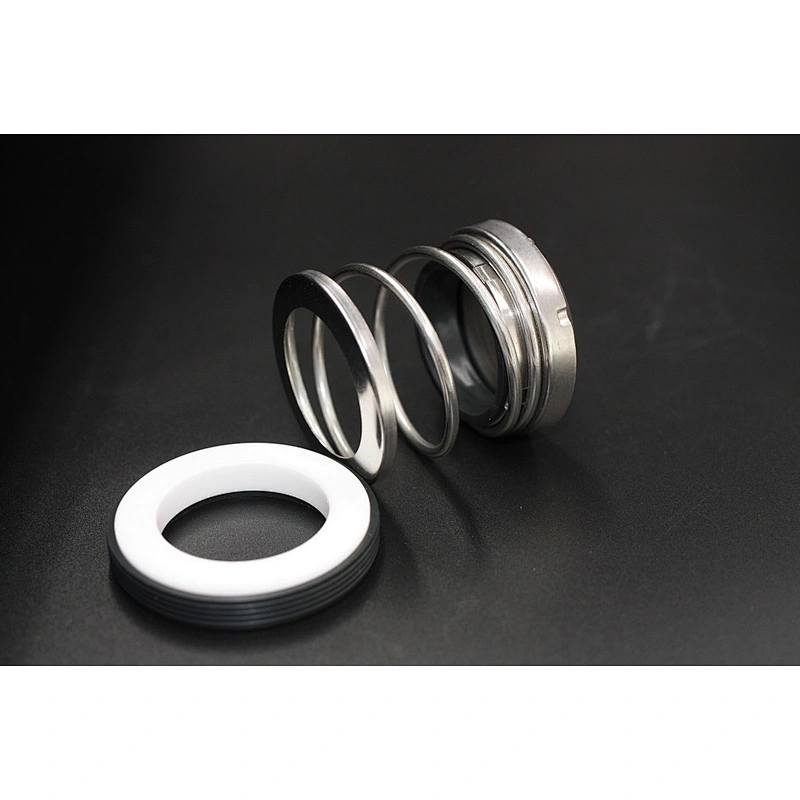

AS-E560 elastomer bellow mechanical seal

Suggested operating limits

Temperature: -20～120℃

Speed: ≤15m/s

Pressure≤1.0Mpa

Combined material

Rotary face: Carbon/Sic/TC

Stat Ring: Ceramic/Sic/TC

Features：
Single seal
Loosely inserted seal face provides self-adjusting capability
In-house manufactured sliding parts


Advantages
The type is self-adjusting to shaft misalignments and deflections because of the loosely inserted seal face as well as the ability of the bellows to stretch and tighten. The length of the contact area of the bellows with the shaft is an optimum compromise between ease of assembly (less friction) and sufficient adhesive force for torque transmission. Additionally the seal fulfills very specific leakage requirements. Because the sliding parts are made in-house, a wide variety of special needs can be accommodated.


Recommended applications：
⑴Water and waste water technology
⑵Chemical industry
⑶Process industry
⑷Water and waste water
⑸Glycols
⑹Oils
⑺Industrial pumps/equipment
⑻Submersible pumps
⑼Engine pumps
⑽Circulating pumps


Description

Mechanical Seal AS-E560 is to Replace Eagle Burgmann EA560 seal
