Suggested operating limits
Temperature: -20 - 100℃
Speed: ≤8m/s
Pressure≤0.5Mpa
Combined material
Rotary face: Carbon/Sic/TC
Stat Ring: Ceramic/Sic/TC
Features
⑴Dual seal
⑵Good chemical resistance and ability to handle solids
⑶In-house manufactured sliding parts
Advantages

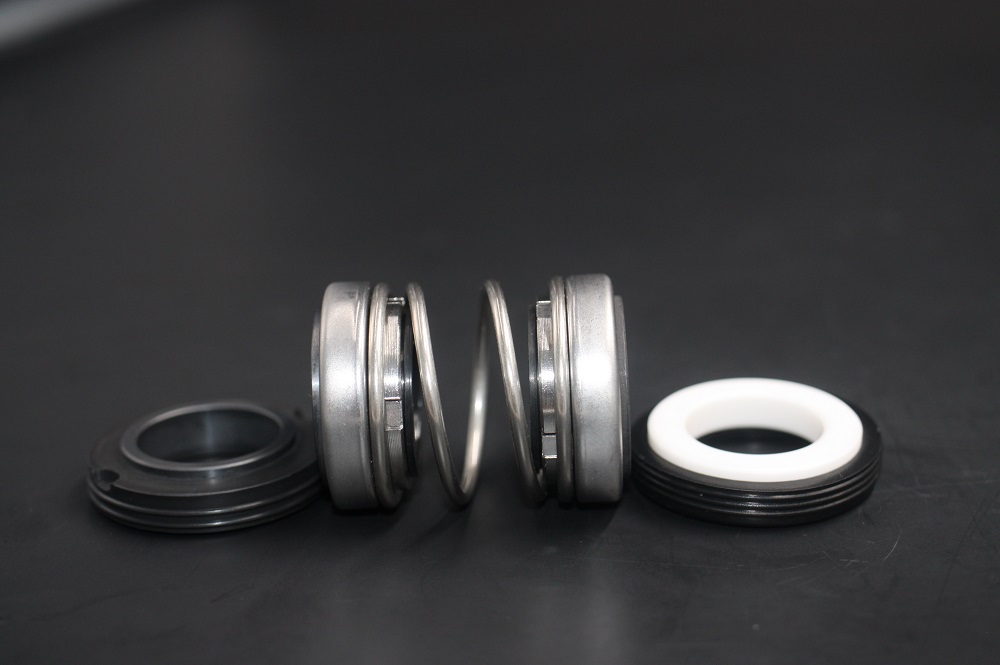

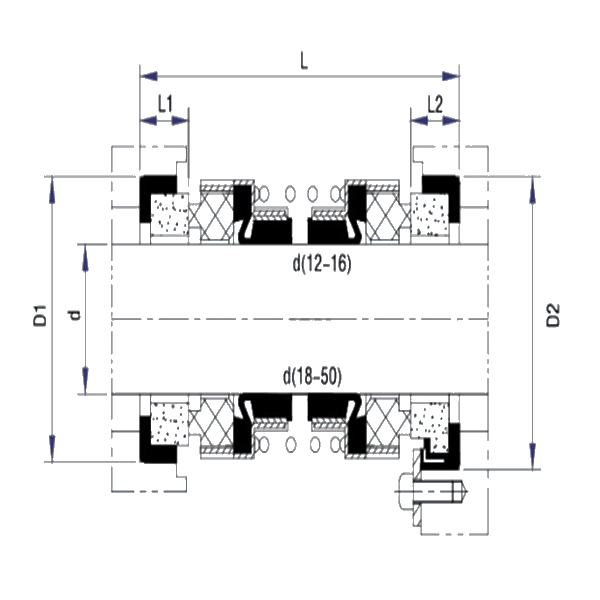

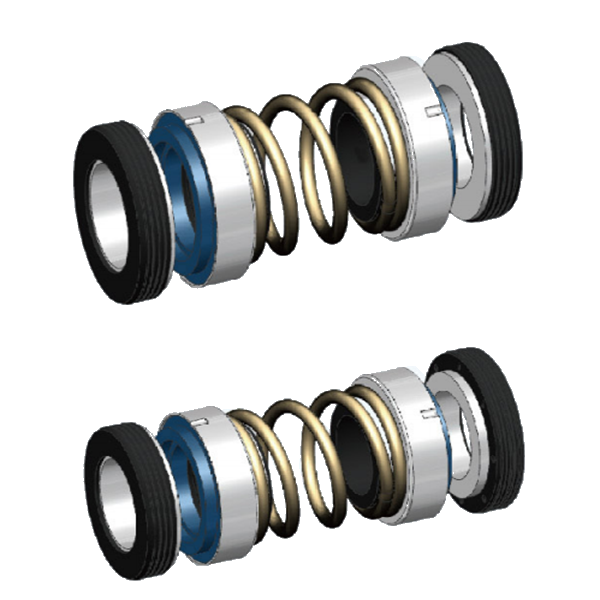

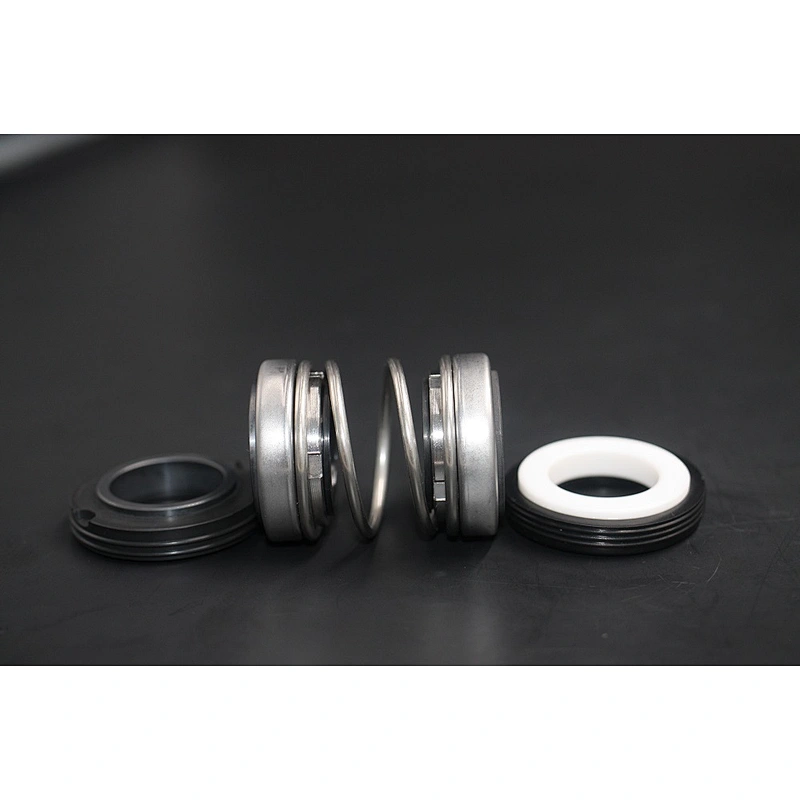

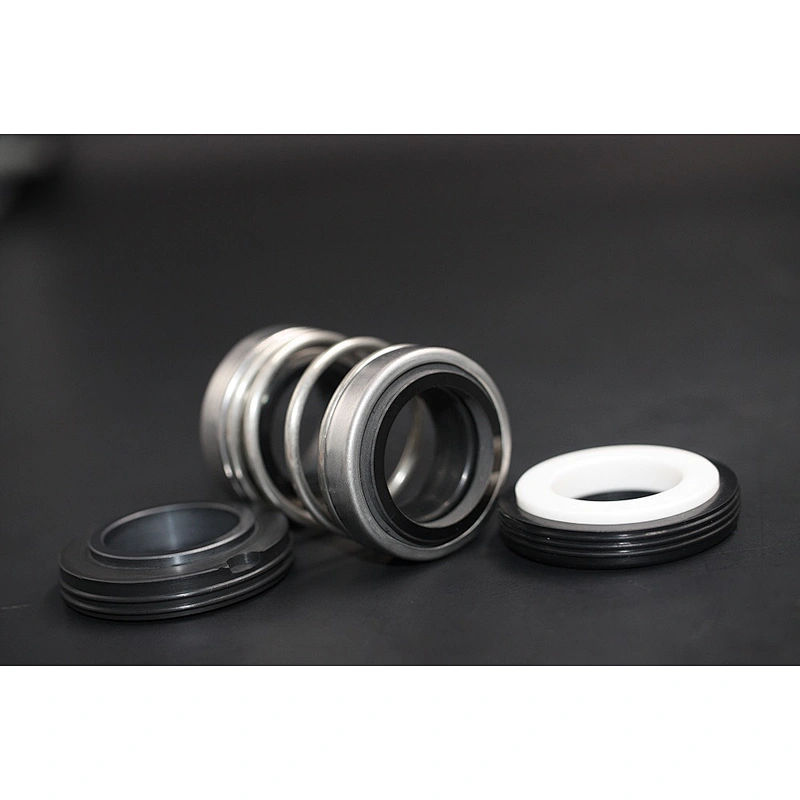

The ED560 is a dual seal in a back-to-back arrangement with an EA560 base. Therefore, the seal combines the advantages of the EA560 with the advantages of a dual seal.
recommended application
⑴Water and waste water technology
⑵Chemical industry
⑶Process industry
⑷Water and waste water
⑸Glycols
⑹Oils
⑺Industrial pumps/equipment
⑻Submersible pumps
⑼Engine pumps
⑽Circulating pumps
