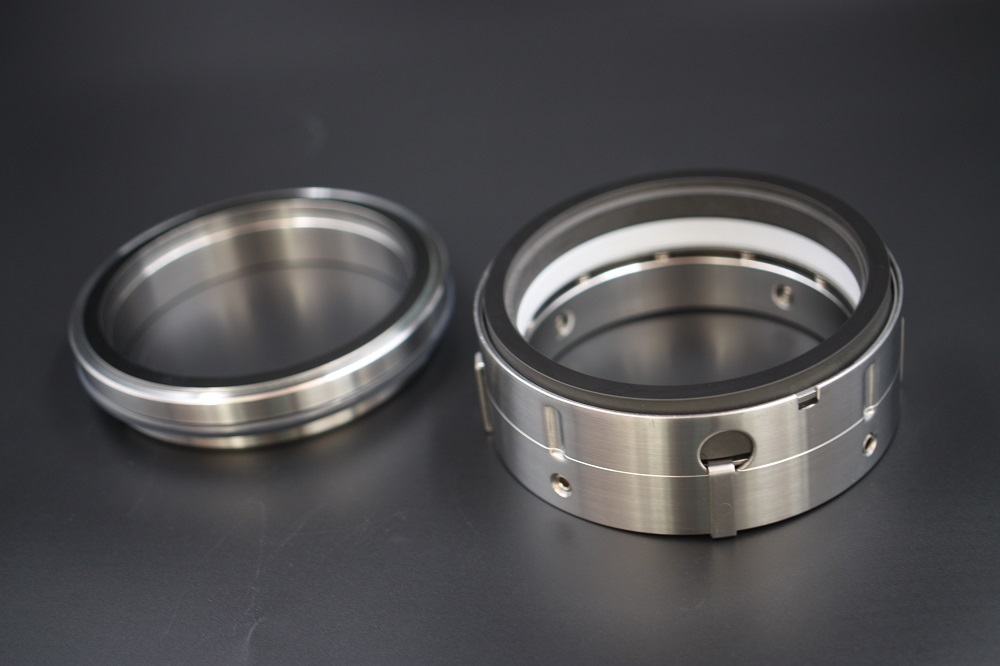

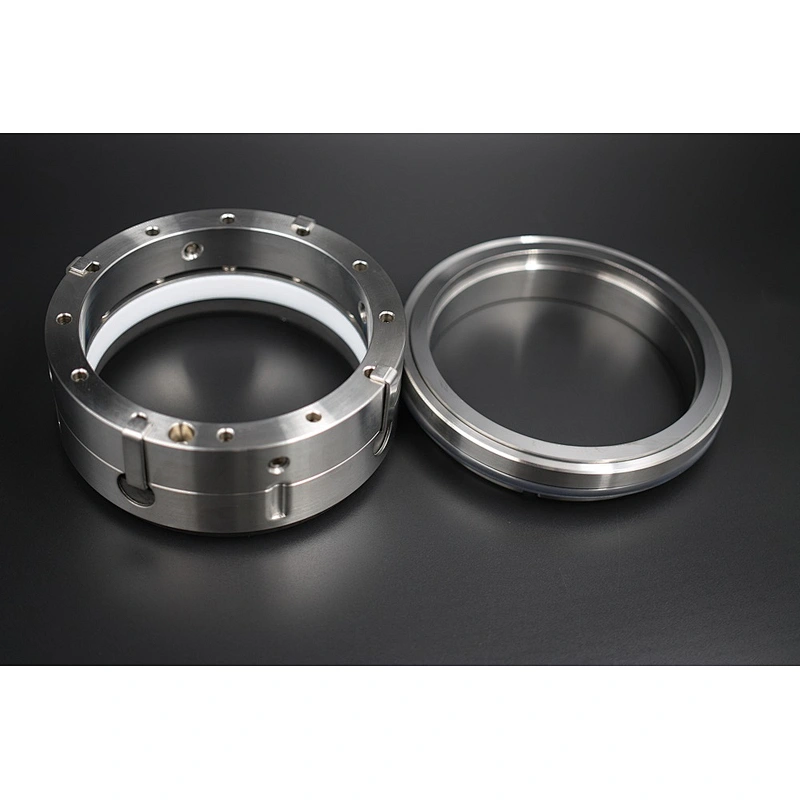

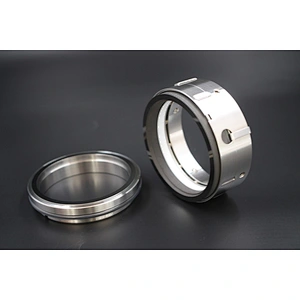

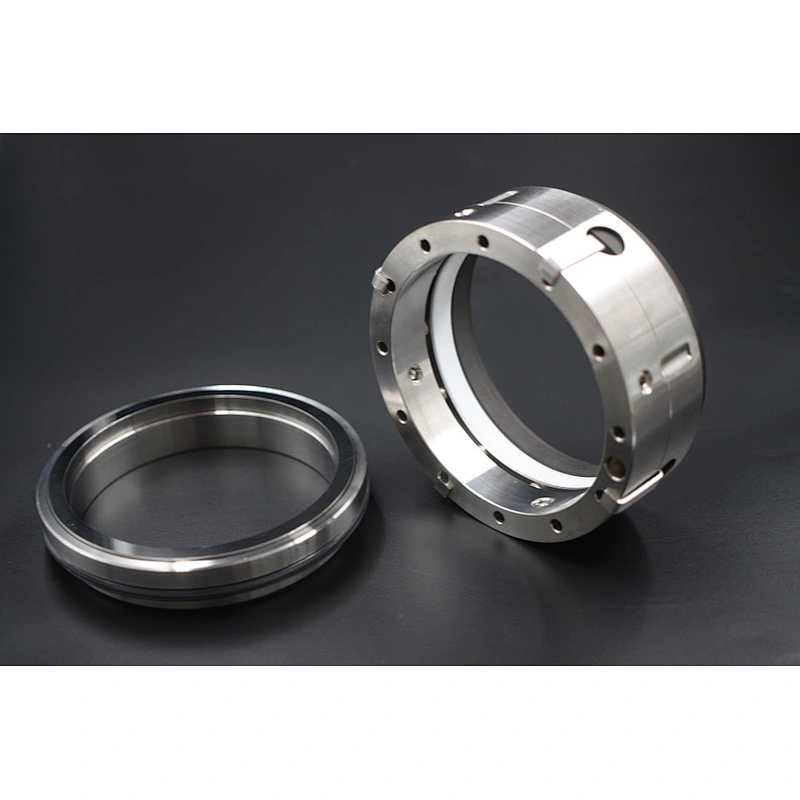

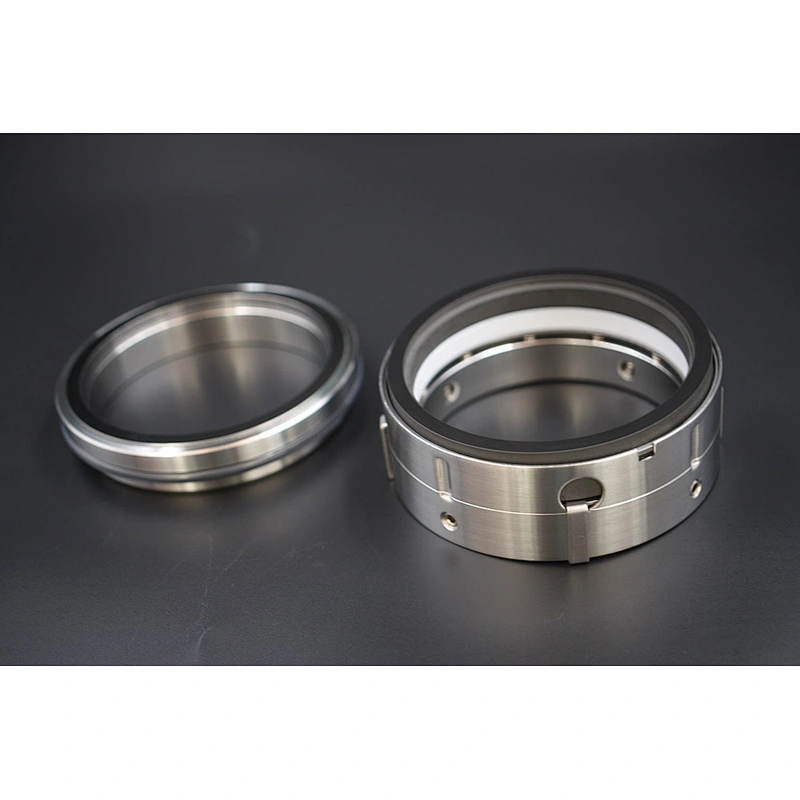

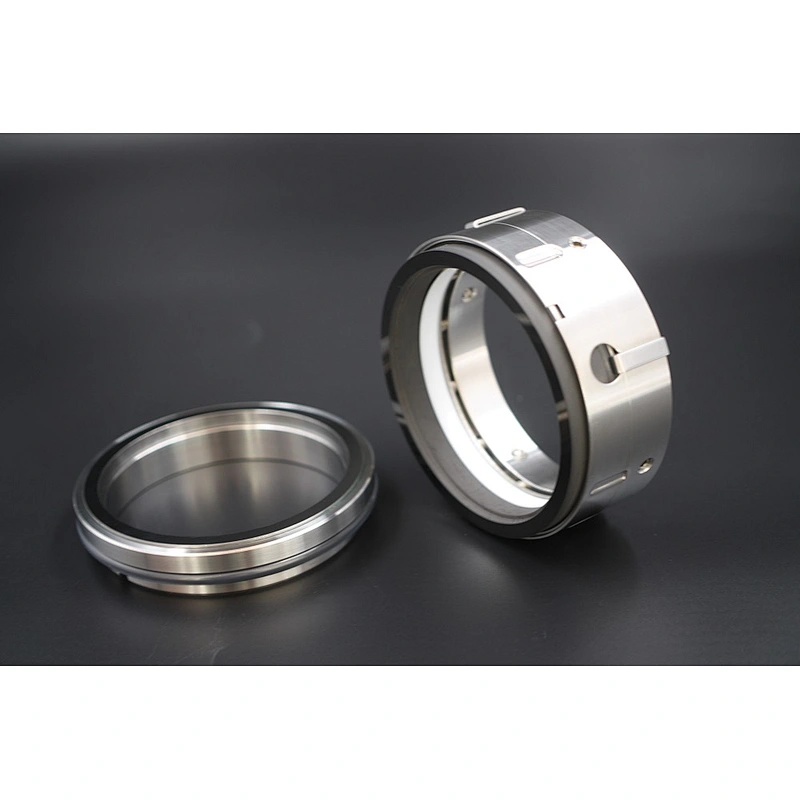

AS-P09

Suggested operating limits

Temperature: -20 - 250℃

Speed: ≤15 m/s

Pressure≤1.2 Mpa

Combined material

Rotary face: Carbon/Sic/TC

Stat Ring: Ceramic/Sic/TC

Features
1.PTFE Wedge secondary seal  provides almost  universal application opportunities.
2.Commonly used in Chemical and Petrochemical duties with a highly effcient multiple spring design
3.Frequently matched with the Type 25 clamped Stationary.

Description：
AS-P09  is standard Multiple Spring, Grub Screw Mechanical Seal. It is to replace Johncrane 9，AES M01, vulcan 1609，ROTEN 90, STERLING 290 seals
