SUGGESTED OPERATING LIMITS
Temperature:-20-180℃
Speed: ≤20m/s
Pressure:≤ 1.5Mpa
COMBINED MATERIAL
Rotary face: SUS/Carbon/SIC/TC
Stat Ring: Carbon/SIC/TC
Seat Type: Standard AS-S09, Alternative AS-S04/S06/S92/S13
Description

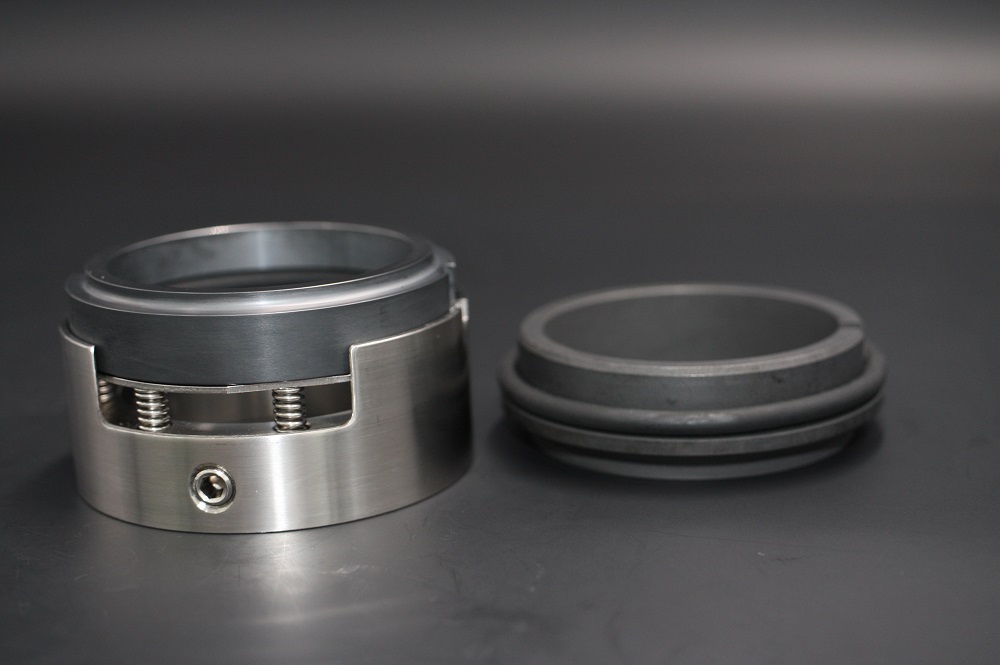

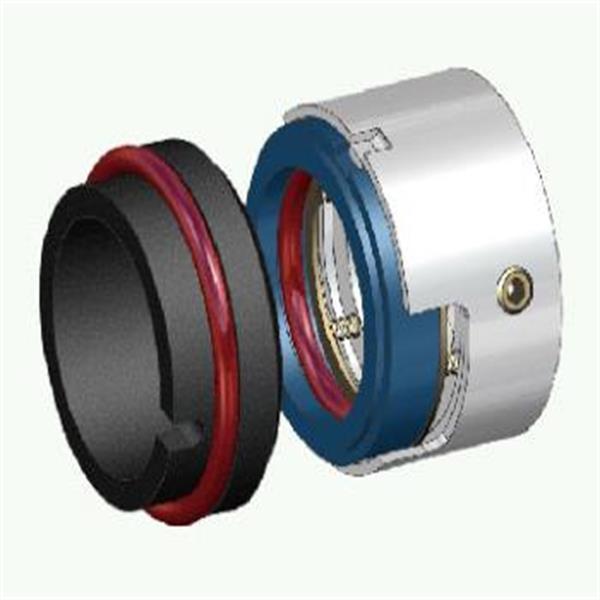

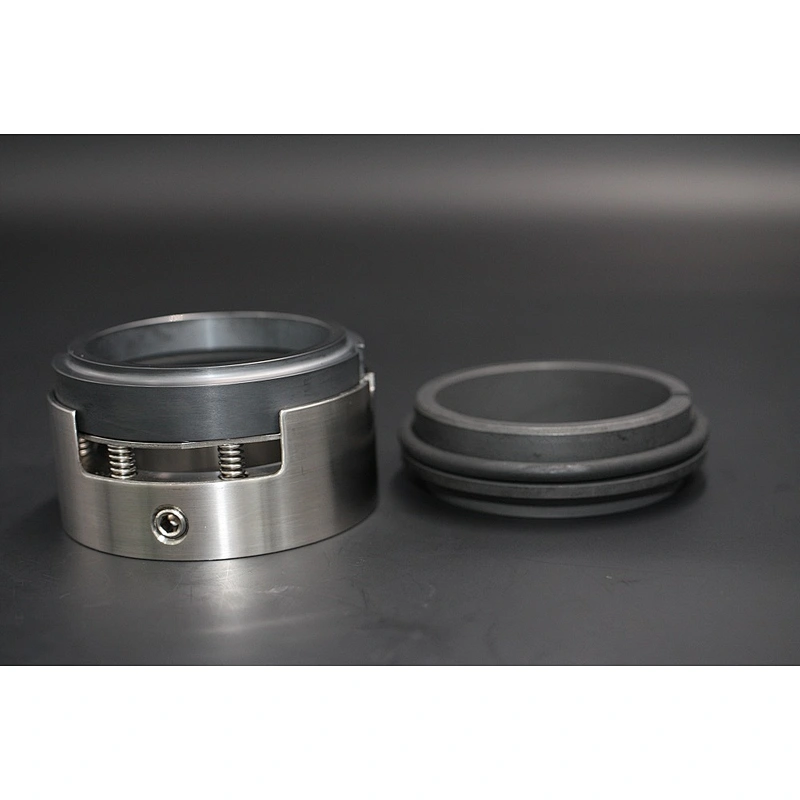

The M7 mechanical seal range is designed for universal application and ideal suited for standardisation. The loosely inserted seal faces are easily exchanged, permitting all combinations of materials and stock rationalisation. AS-R74N have pump ring design which called R74F.
