Suggested Operation Limits
Temperature:-20～180℃
Speed: ≤15m/s
Pressure:≤ 2.5Mpa
Combined Material
Rotary face: Carbon/SIC/TC
Stat Ring: Ceramic/SIC/TC
Seat Type: Standard AS-SBP, Alternative AS-SBO/SBC/SBD
Description：

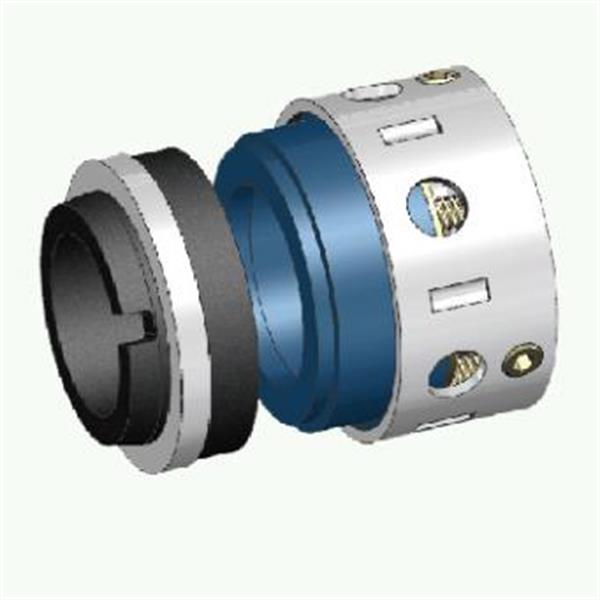

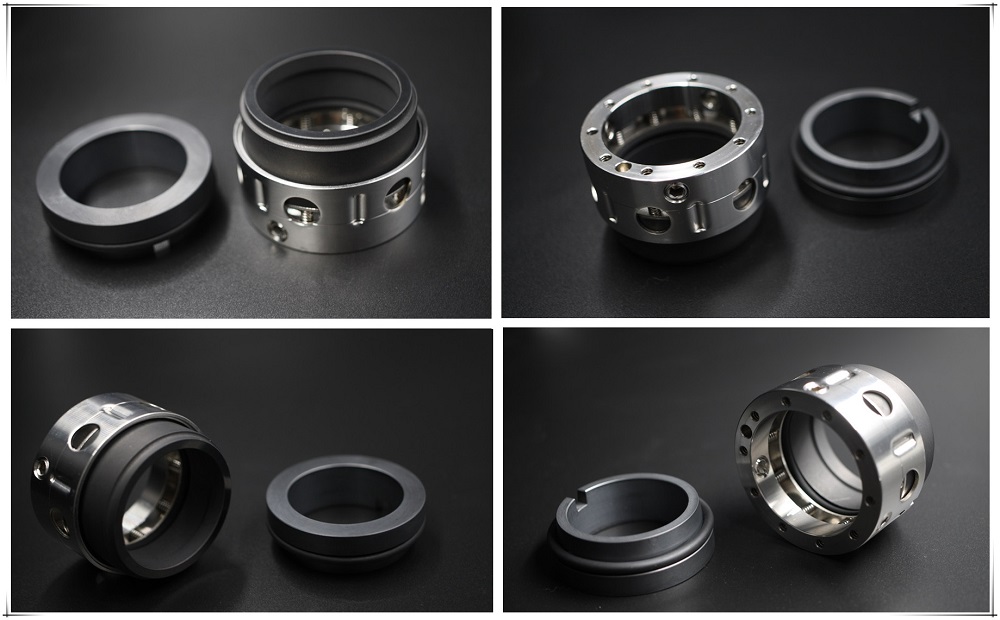

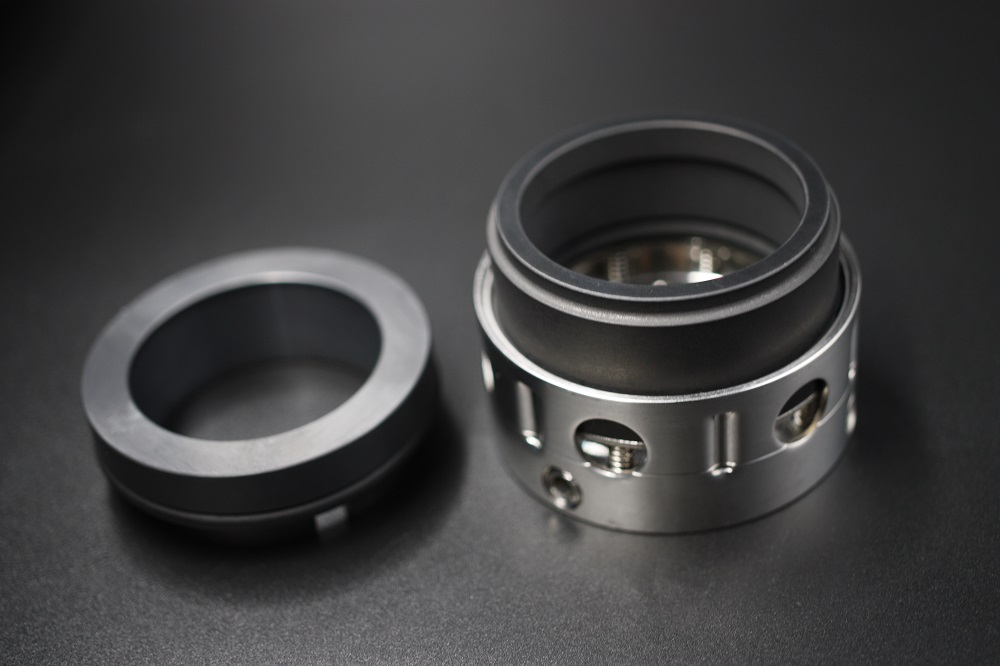

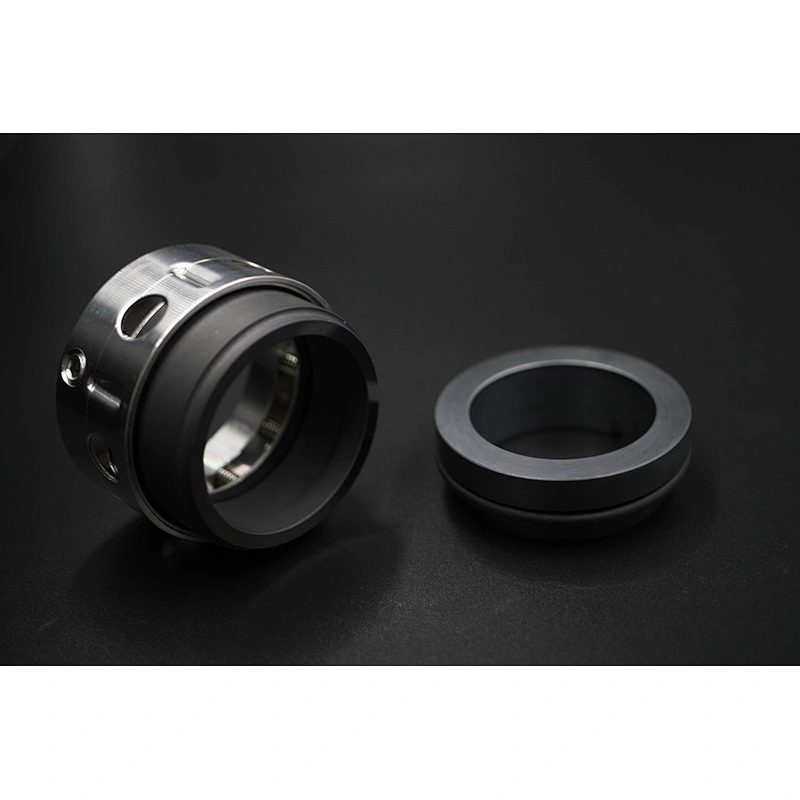

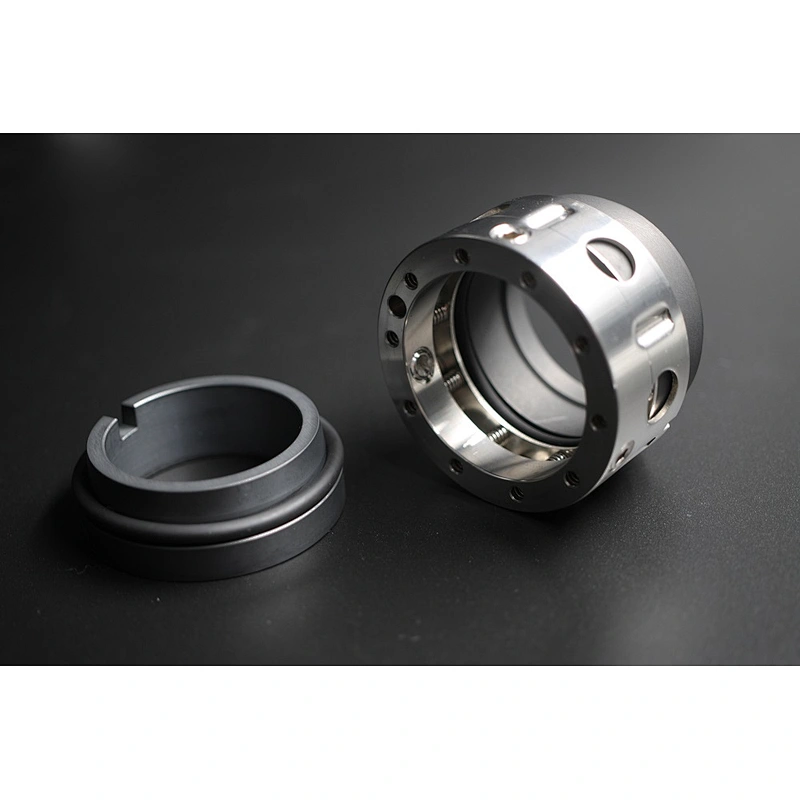

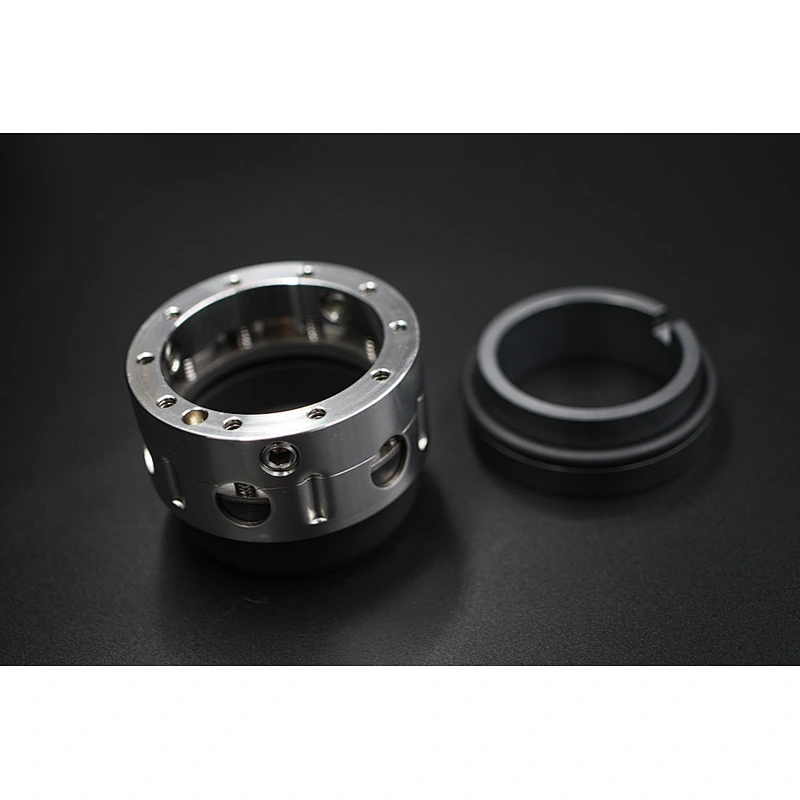

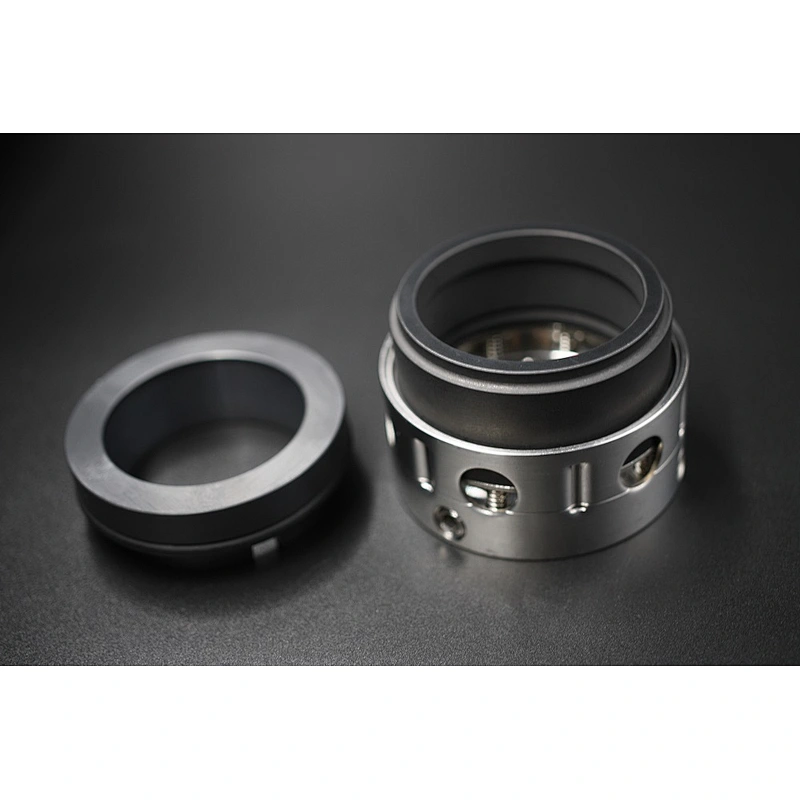

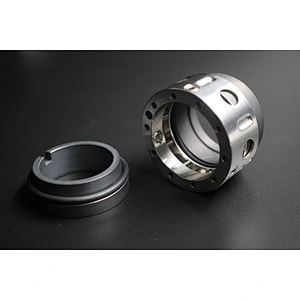

AS-R58B is General Purpose DIN Balanced, Multi-spring, High-pressure Elastomer O-ring pusher seal.It is to replace AES M04S,Vulcan 1659BS，Johncrane 58B，Sterling 259BS and Burgmann BT-C5KB seals.
Features：
A versatile design with multiple material options for the widest range of liquids and temperatures
For general low- to medium-pressure duties in the processing, refinery and petrochemical industries.
Recommended applications：
oils, solvents, water and refrigerants,a multitude of chemical solutions
