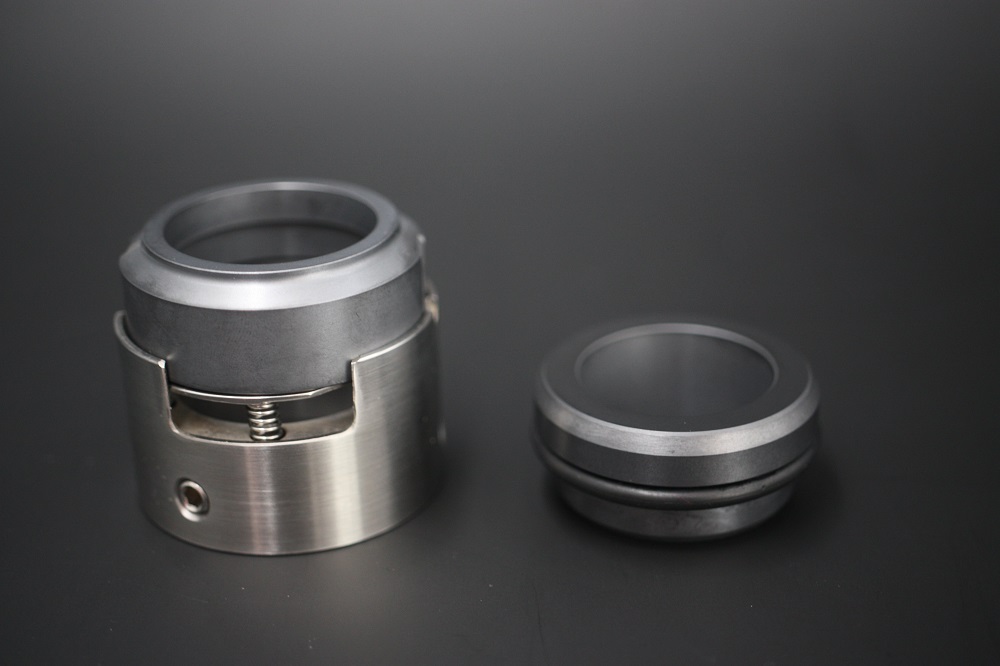

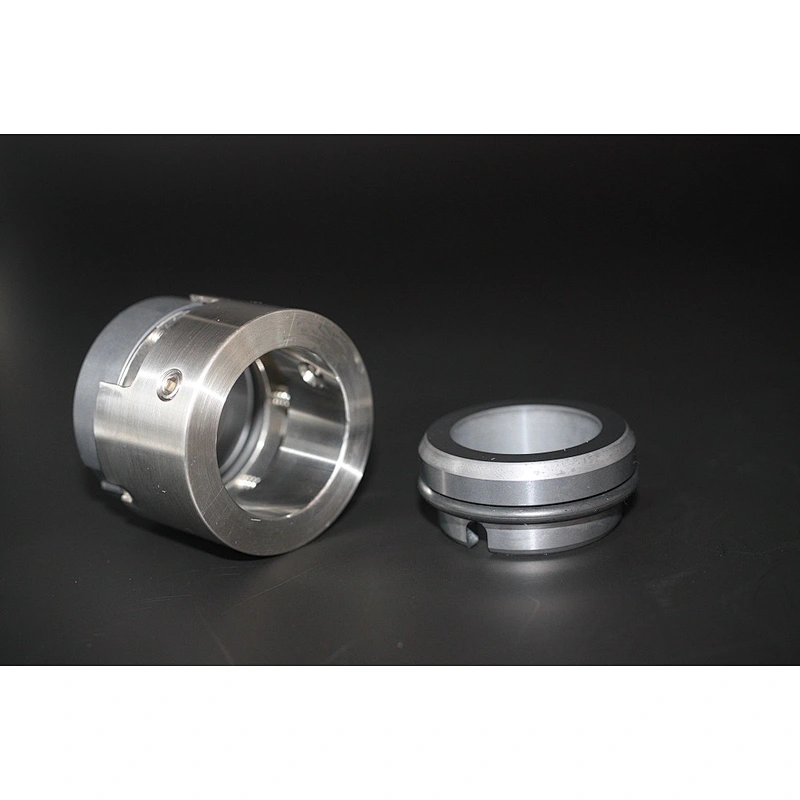

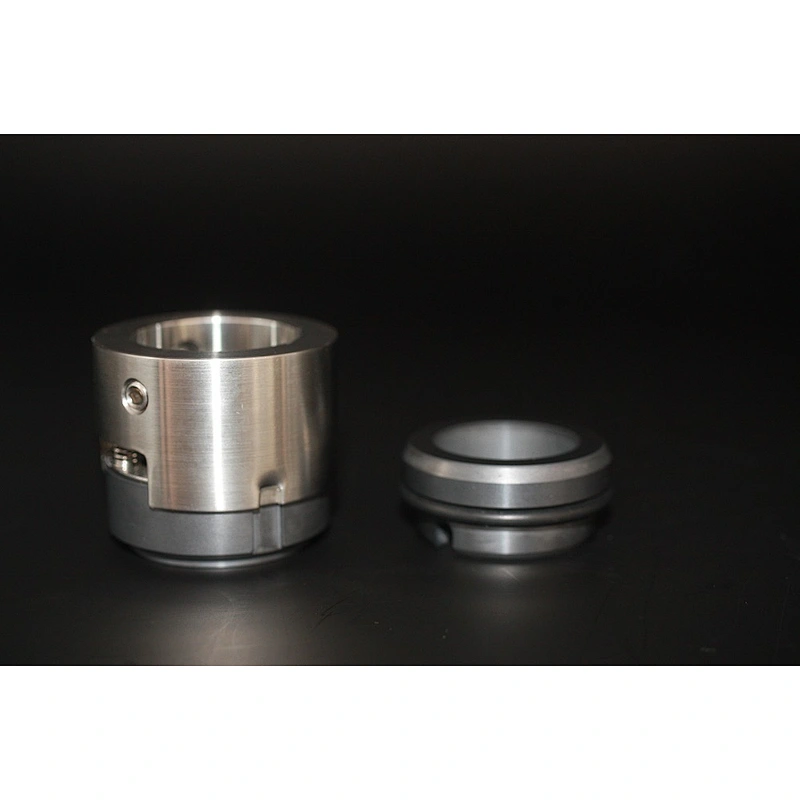

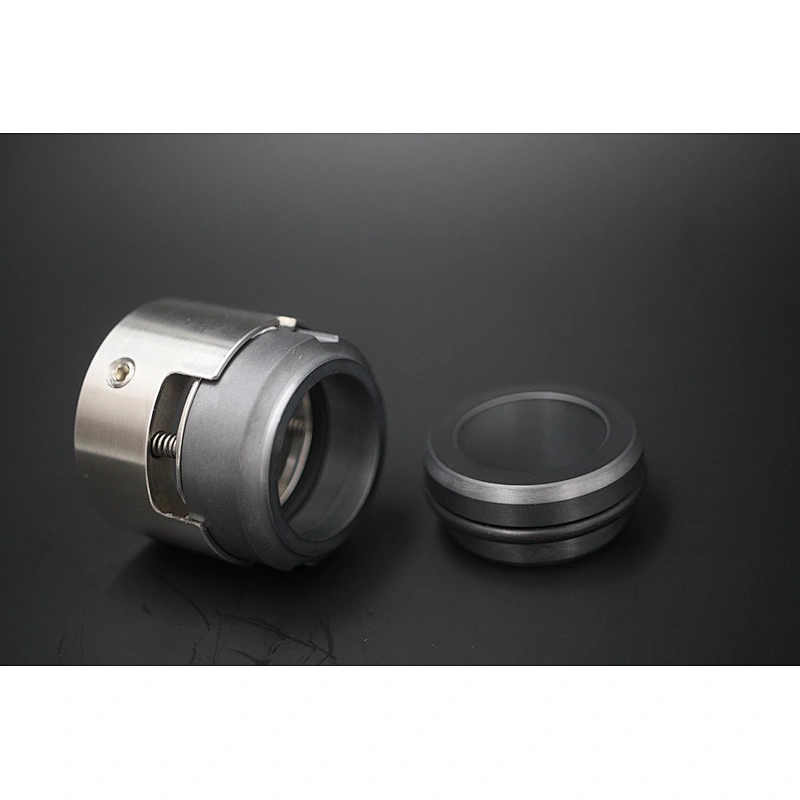

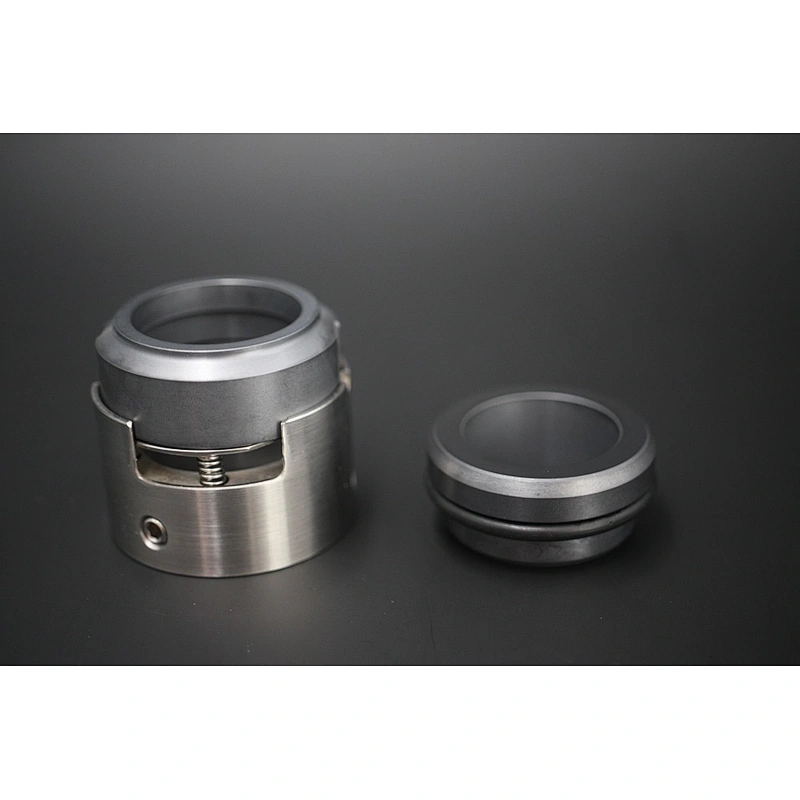

AS-RH74N multiple spring mechanical seal
AS-RH74N multiple spring mechanical seal
AS-RH74N multiple spring mechanical seal
AS-RH74N multiple spring mechanical seal
AS-RH74N multiple spring mechanical seal
AS-RH74N multiple spring mechanical seal
AS-RH74N multiple spring mechanical seal
AS-RH74N multiple spring mechanical seal
AS-RH74N multiple spring mechanical seal

AS-RH74N multiple spring mechanical seal

Model NO.
AS-RH74N
Quantity:

Suggested operating limits

Temperature:-20～180℃

Speed: ≤20m/s

Pressure:≤ 2.5Mpa


Combined material

Rotary face: SUS/Carbon/SIC/TC

Stat Ring: Carbon/SIC/TC

Seat Type: Standard AS-S09, Alternative AS-S04/S06/S92/S13


Description

The M7 mechanical seal range is designed for universal application and suited for standardisation perfectly. The loosely inserted seal faces are easily exchanged, permitting all materials combinations.

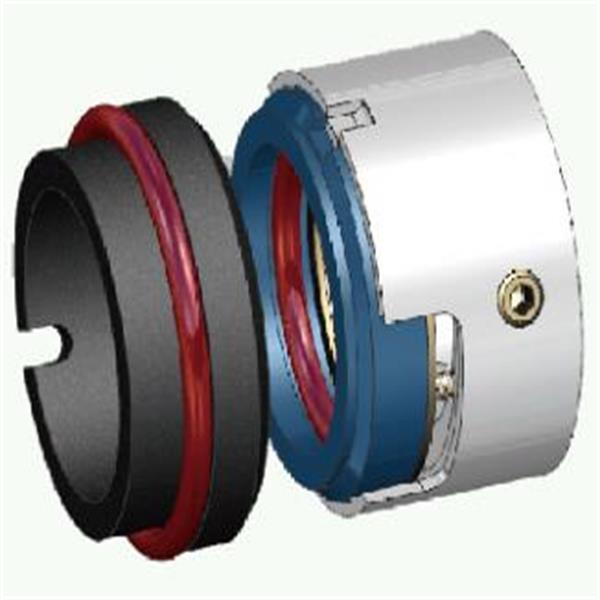

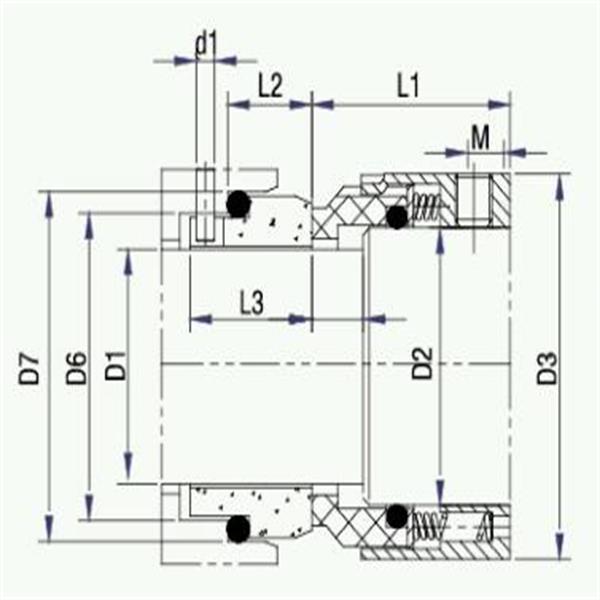

,Burgmann mechanical seals H74N (1).jpg ,Burgmann mechanical seals H74N (2).jpg

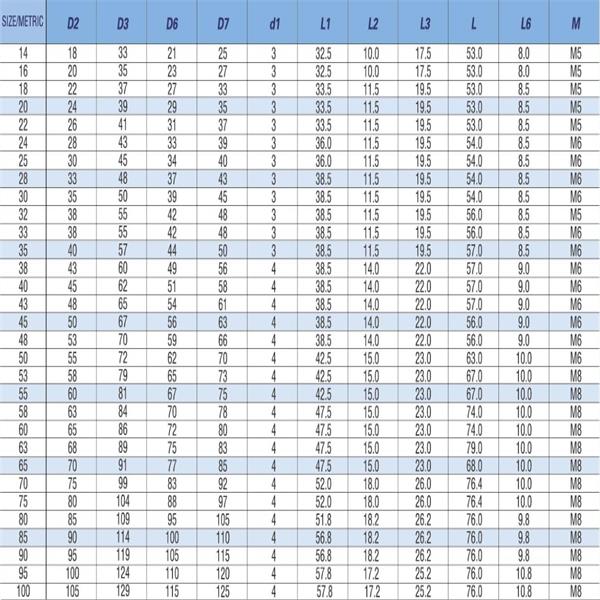

,Burgmann mechanical seals H74N (3).jpg
