SUGGESTED OPERATING LIMITS
Temperature:-20-250℃
Speed: ≤15m/s
Pressure:≤2.5Mpa
COMBINED MATERIAL
Rotary face: Carbon/SIC/TC
Stat Ring: Ceramic/SIC/TC
Seat Type: Standard AS-SA
Features：
Standard Multiple Spring, Grub Screw Mechanical Seal
Commonly used in duties in Chemical and Petrochemical industries
A PTFE backup ring is recommended to be specified for higher pressure ‘O’Ring applications
Description：

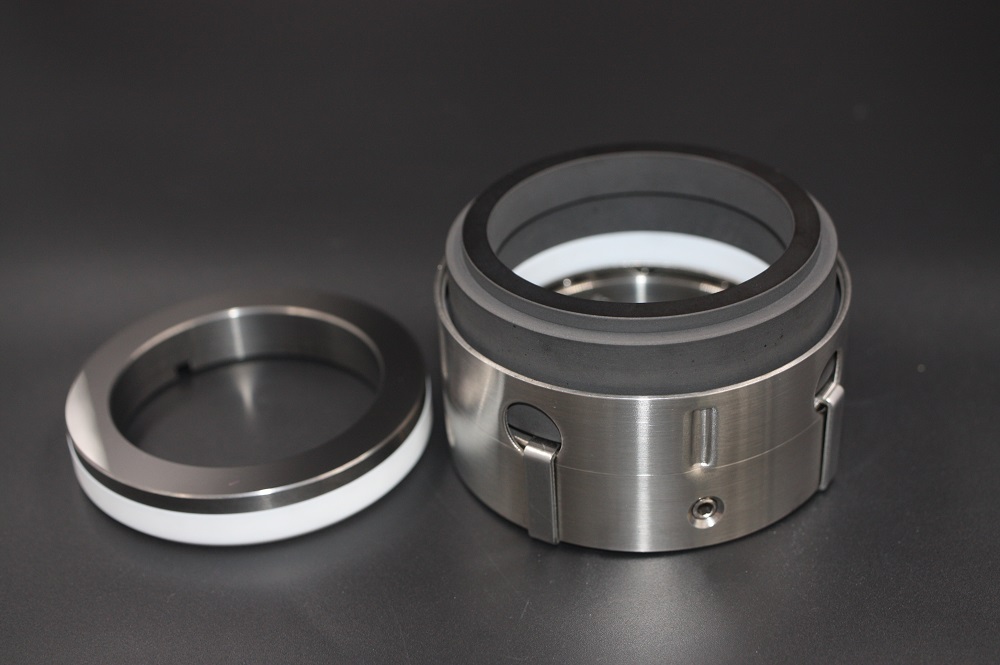

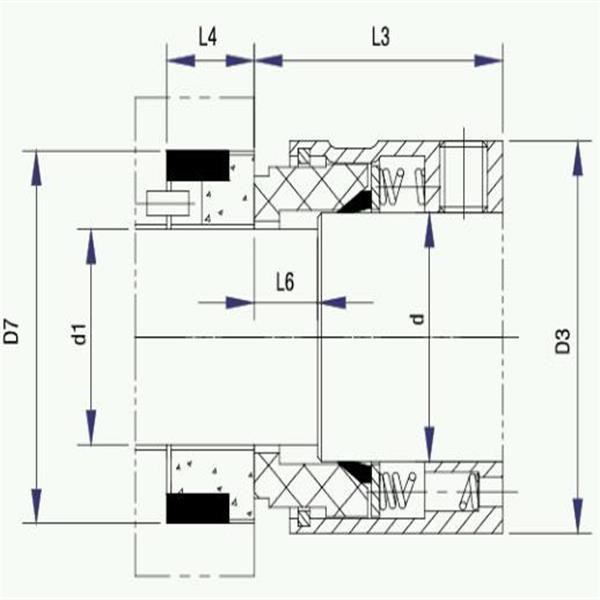

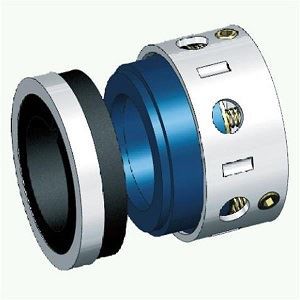

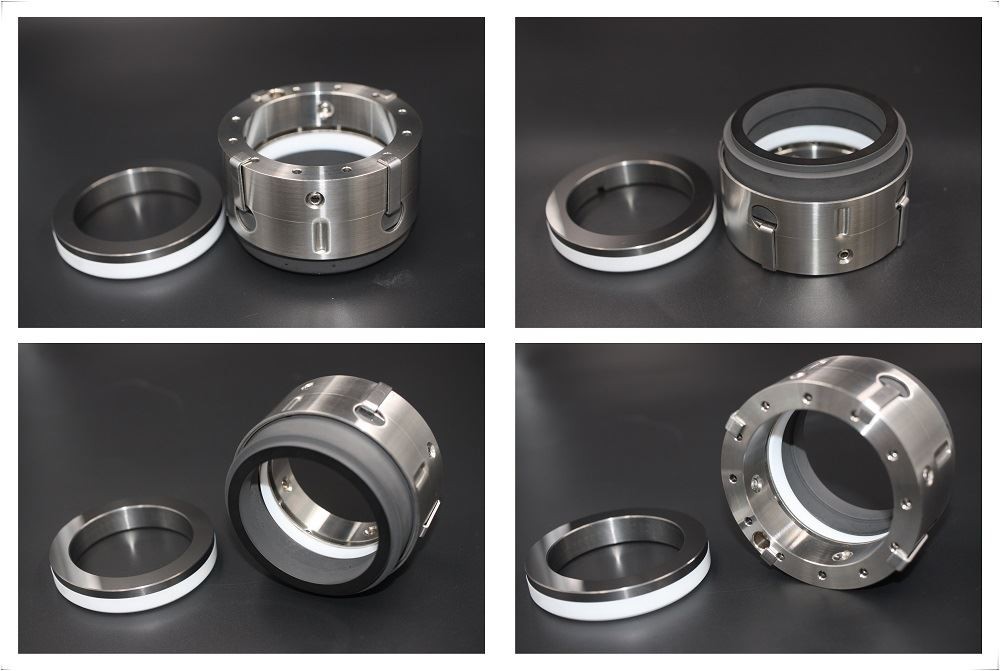

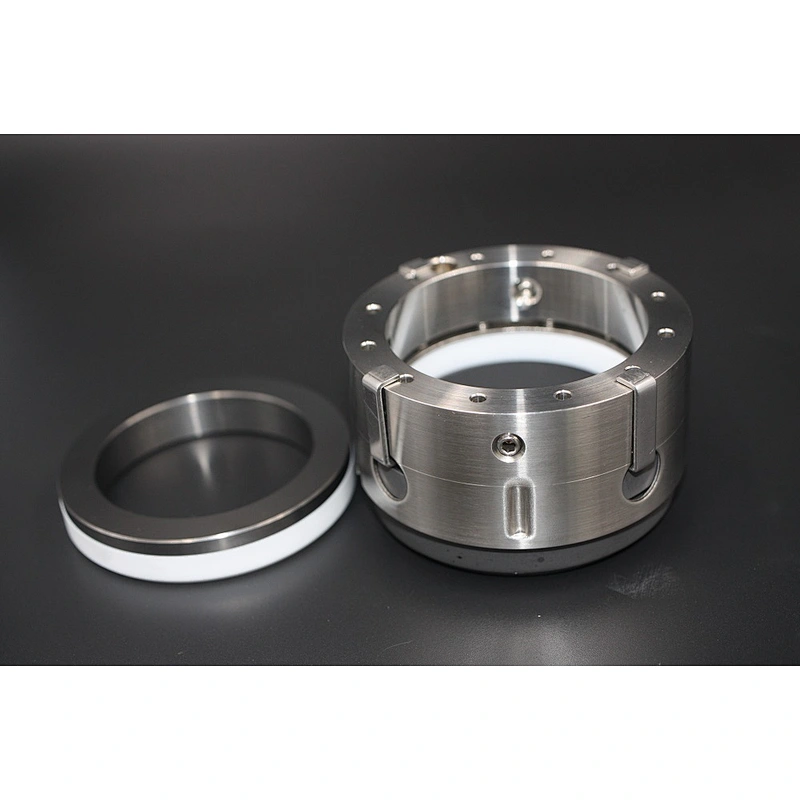

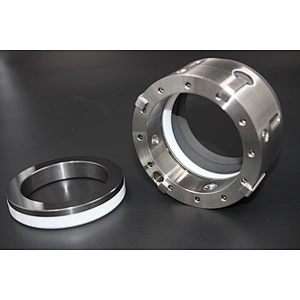

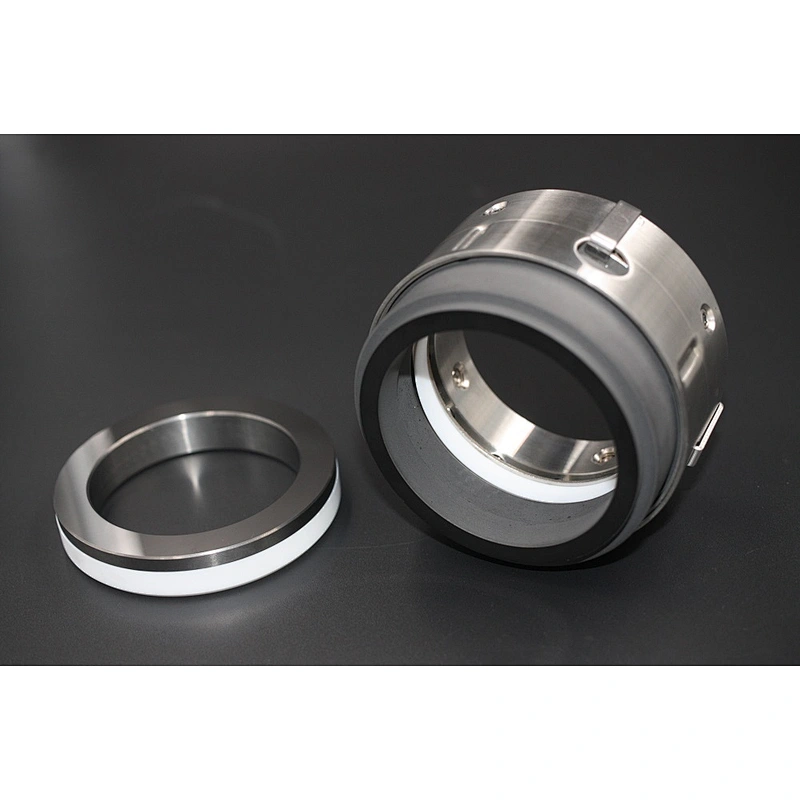

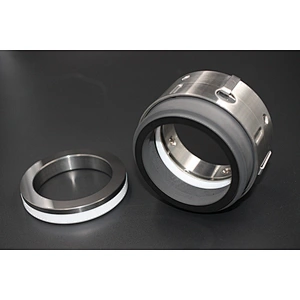

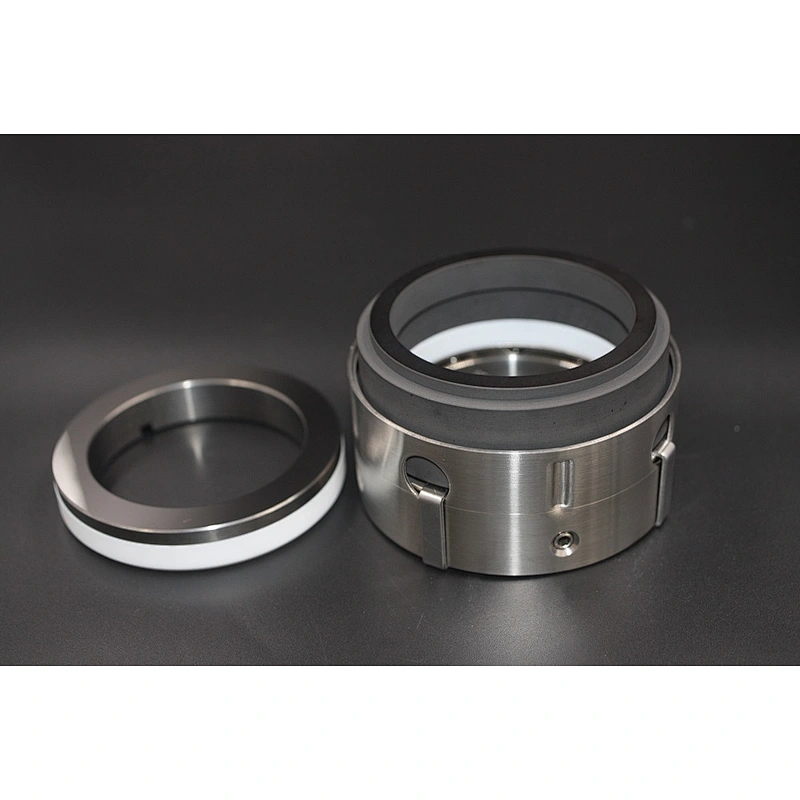

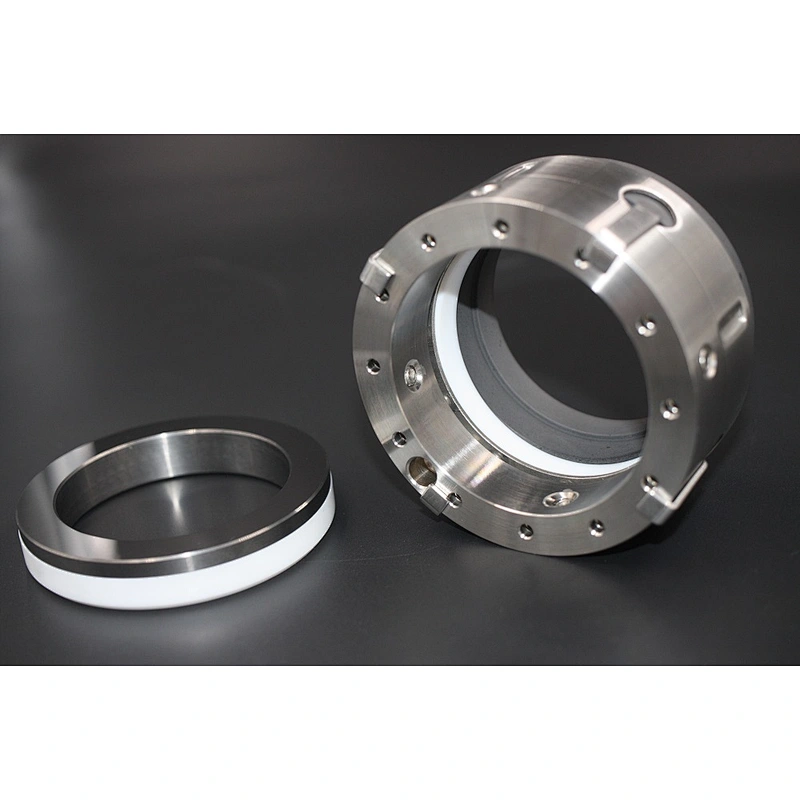

AS-P09B multiple spring mechanical Seal with stepped shaft is to replace Johncrane 9B，Vulcan 1609B，AES 02, Sterling 290 B.
