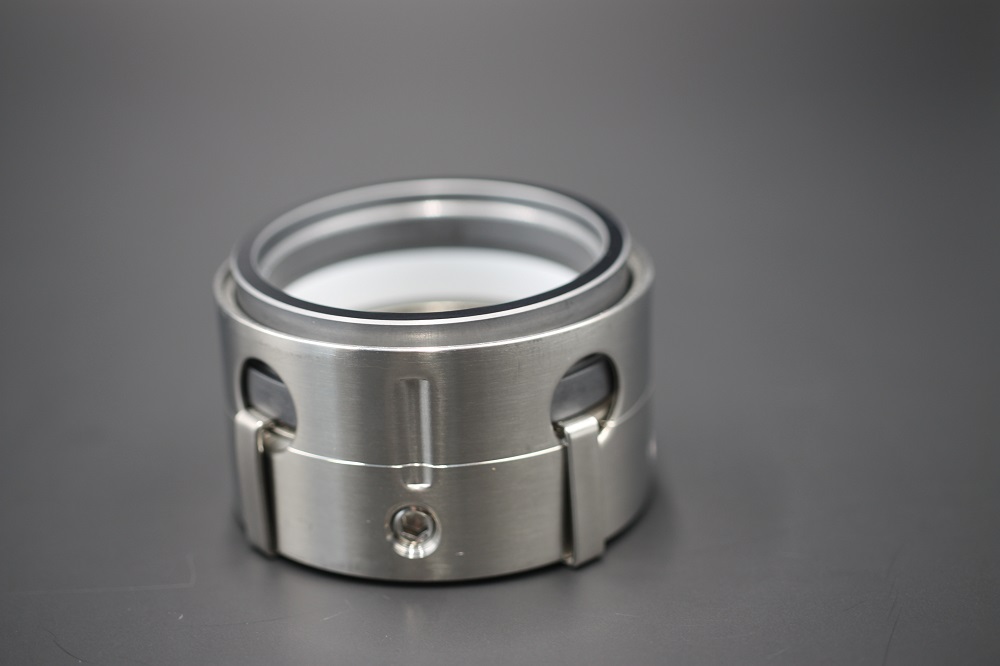

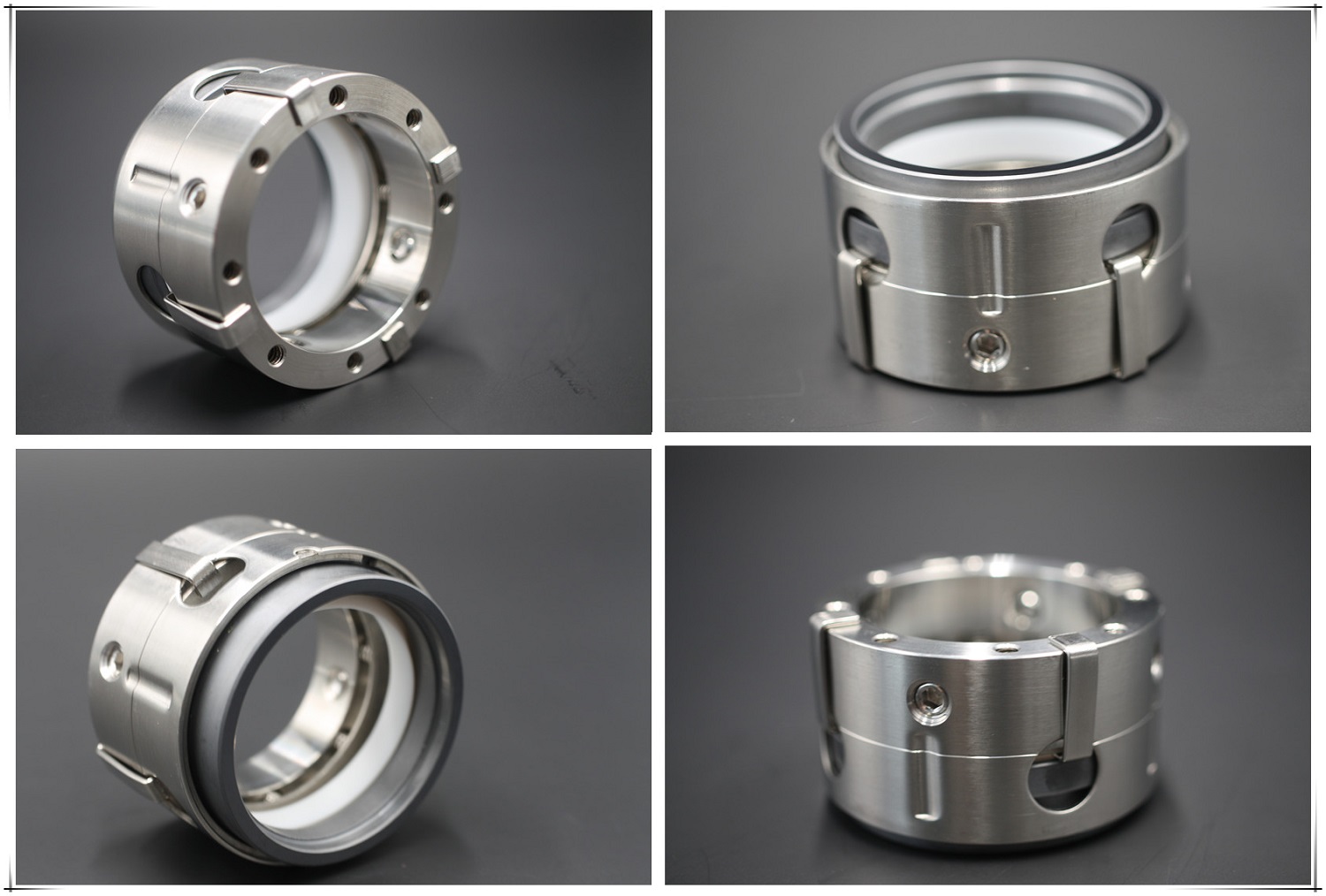

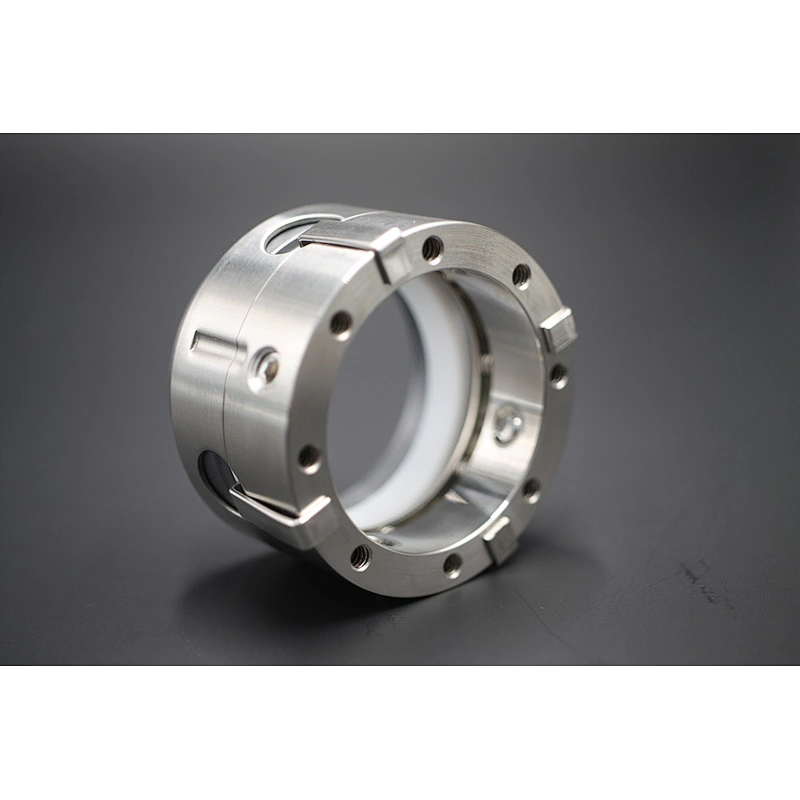

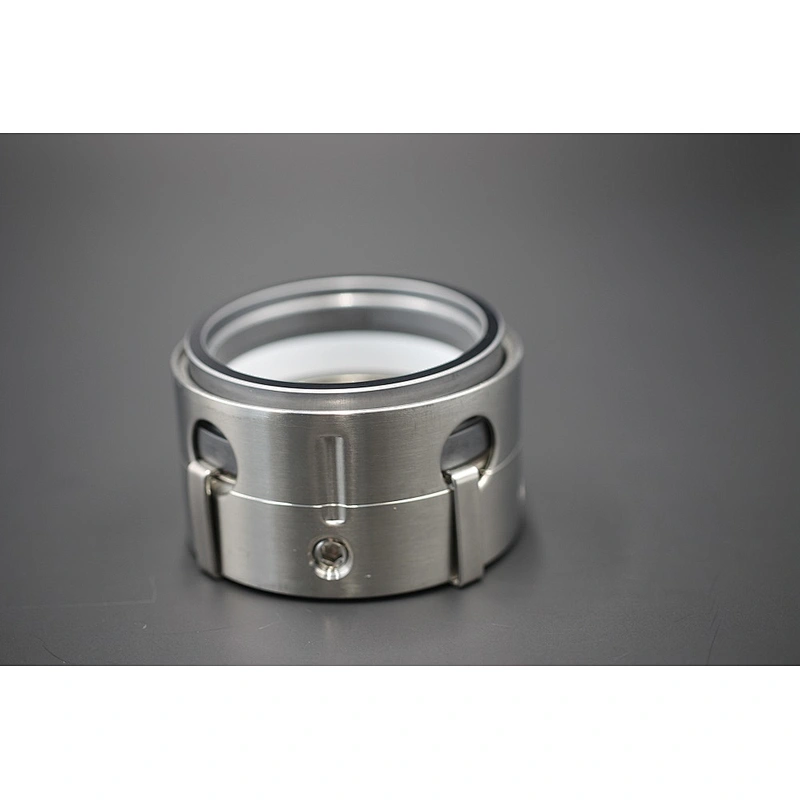

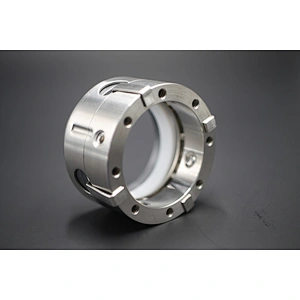

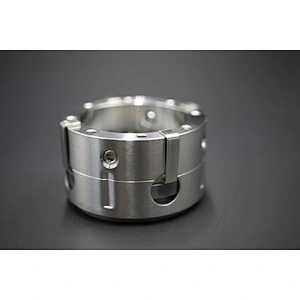

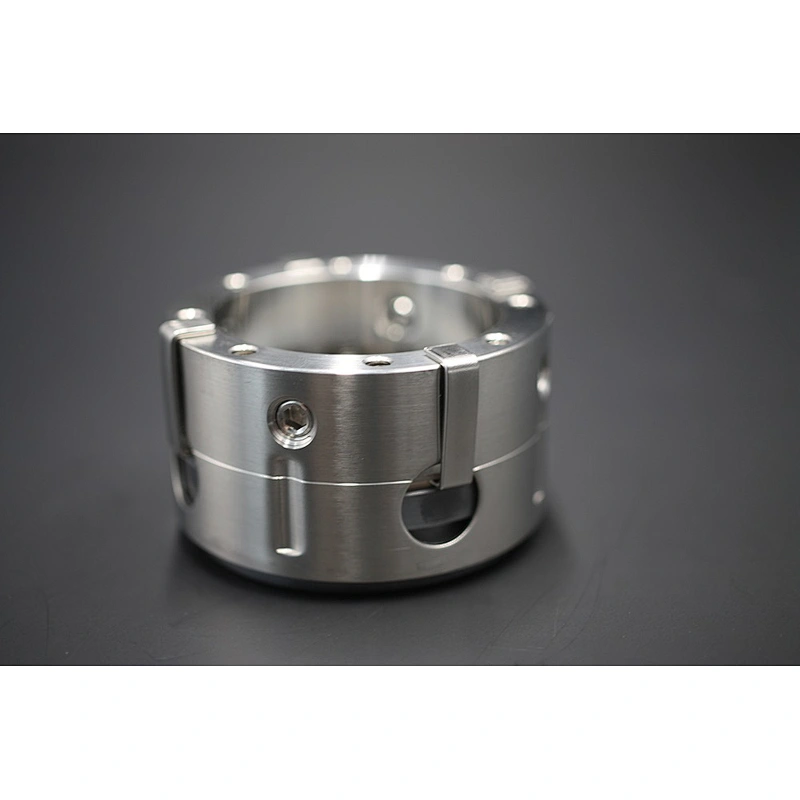

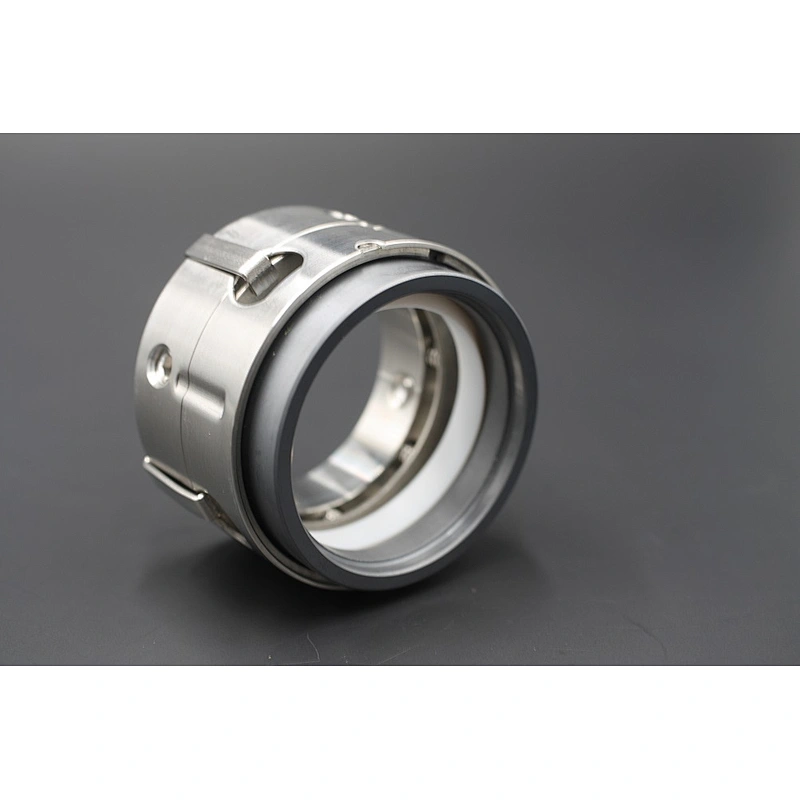

AS-P09T multiple spring mechanical seal

Suggested operating limits

Temperature:-20～250℃

Speed: ≤15m/s

Pressure:≤ 1.2Mpa

Combined material

Rotary face: Carbon/SIC/TC

Stat Ring: Ceramic/SIC/TC

Seat Type: AS-P09T standard with AS-SP seat, AS-P09T standard with AS-SA seat


Description:
AS-P09T is to replace Johncrane 9T, AES M05，Vulcan 1645，Sterling 294.
This seal  adopts a PTFE wedge secondary seal  recommended to used for higher pressure ‘O’-Ring applications.

Features
Narrow profile, Multiple Spring Mechanical Seal

.
