SUGGESTED OPERATING LIMITS
Temperature:-20-180℃
Speed: ≤15m/s
Pressure:≤ 1.2Mpa
COMBINED MATERIAL
Rotary face: Carbon/SIC/TC
Stat Ring: Ceramic/SIC/TC
Seat Type: Standard AS-SBO
Description：

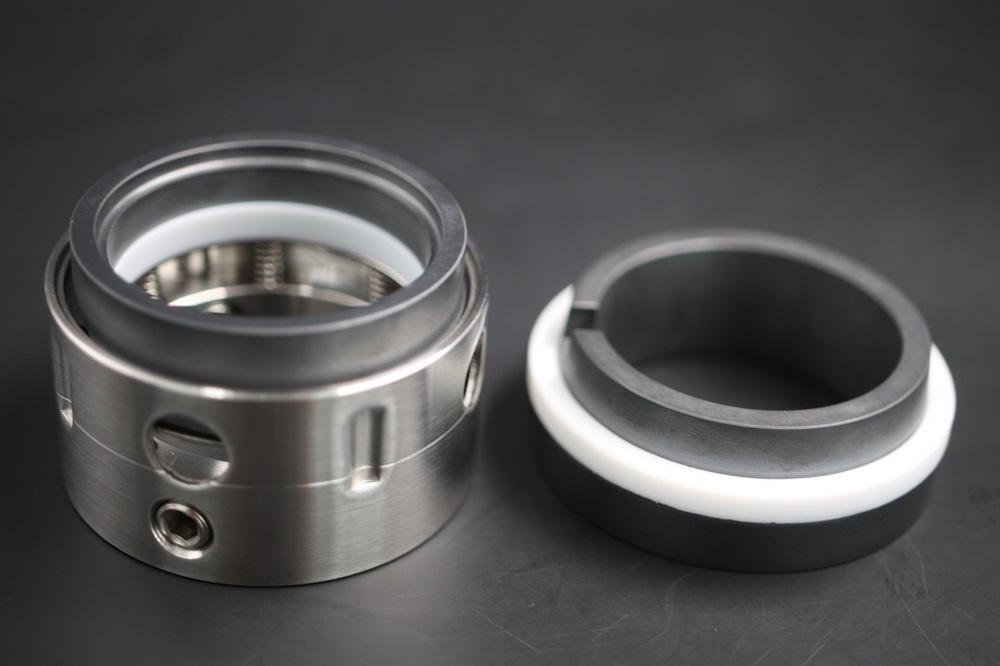

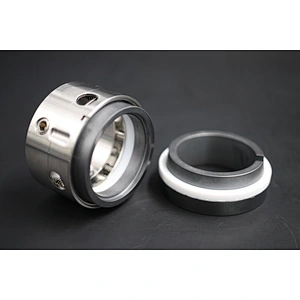

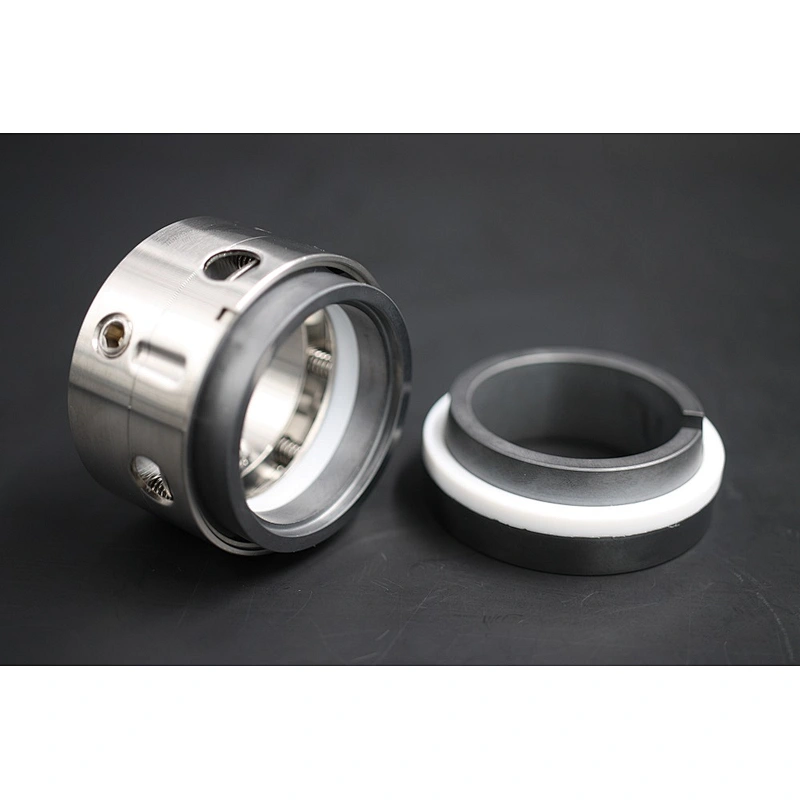

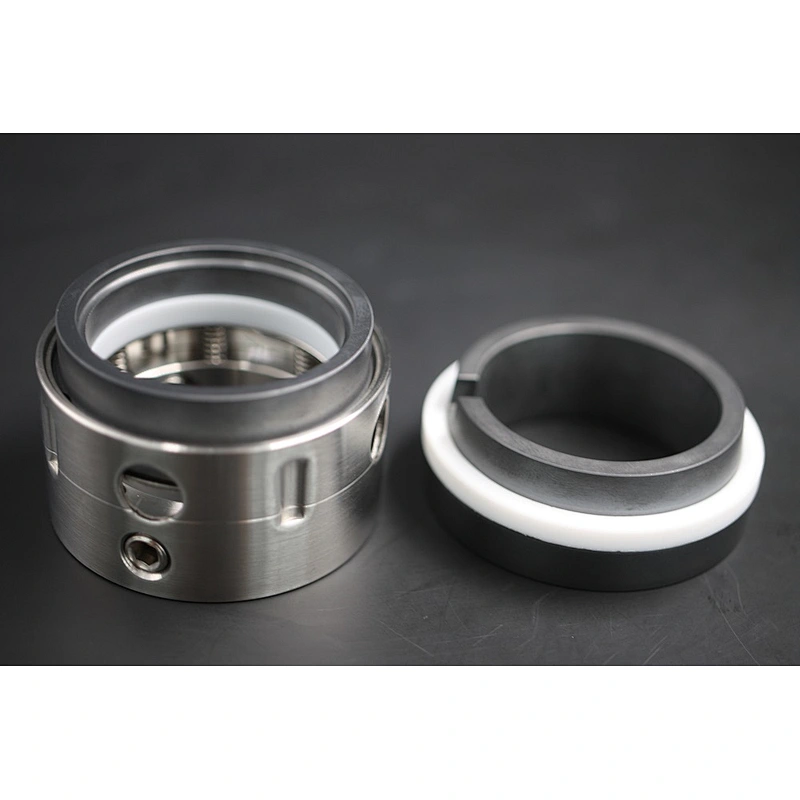

AS-P59U is general purpose DIN, Multi-spring, PTFE Wedge seal.It is to replace AES M03,Vulcan 1659，Johncrane 59U，Sterling 259 and Burgmann BT-C56KU seals.
Features
A versatile design with extended offer on materials for the widest range of temperatures & liquids
For general low- to medium-pressure duties in chemical, refinery, petrochemical & pharmaceutical industries.
Highly efficiently designed Narrow profile, metric shaft, multiple spring Mechanical Seal
Frequently fitted with Type 24 DIN Long 'O'-Ring stationary seals
A PTFE backup ring is recommended to be specified for higher pressure ‘O’-Ring applications.
Generally uesd on occasions of corrosion, cryogenic and high temperature.
