Suggested operating limits
Temperature:-20～180℃
Speed: ≤15m/s
Pressure:≤ 1.2Mpa
Combined material
Rotary face: Carbon/SIC/TC
Stat Ring: Ceramic/SIC/TC
Seat Type: Standard AS-SBO
Description：

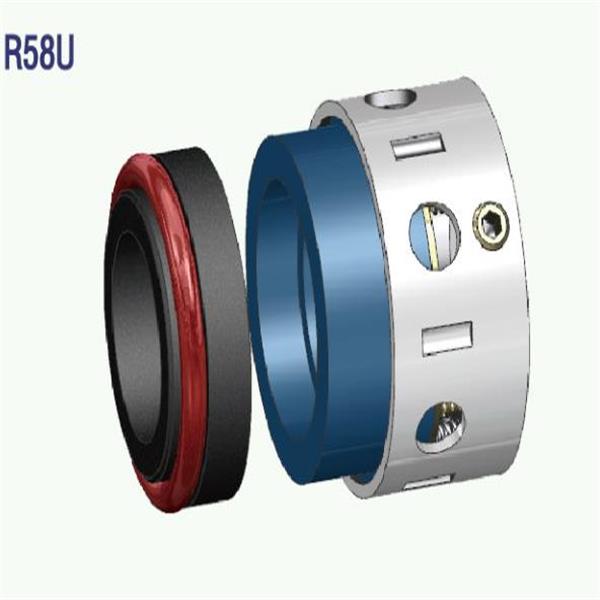

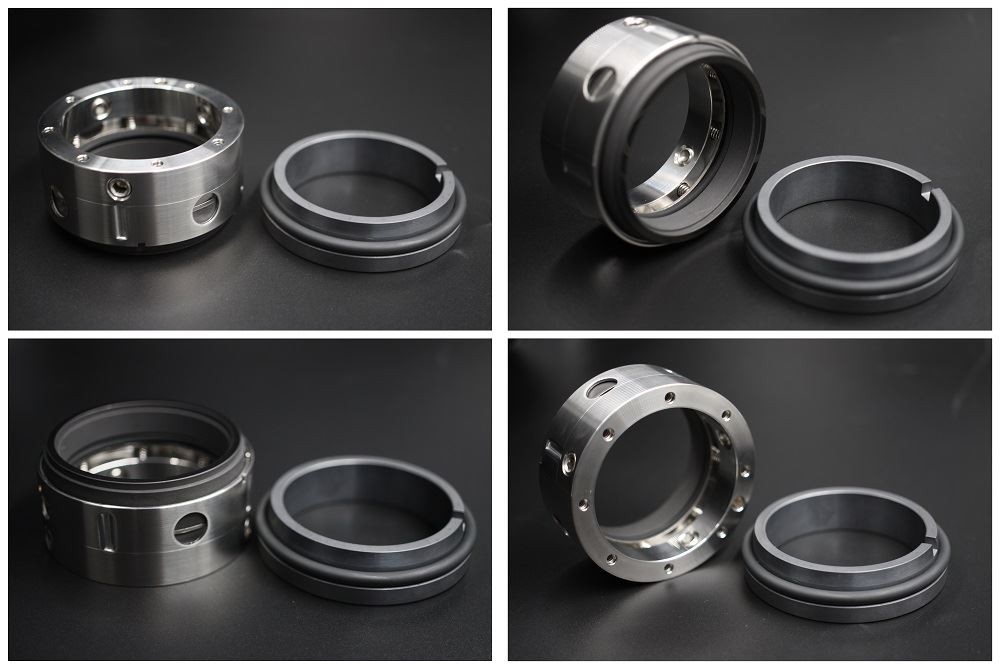

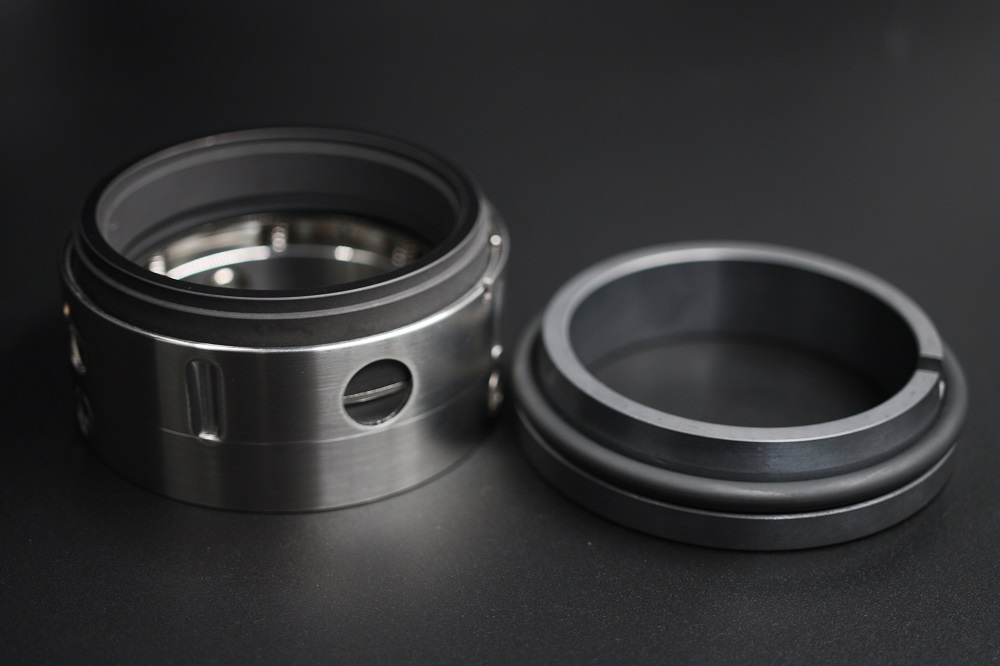

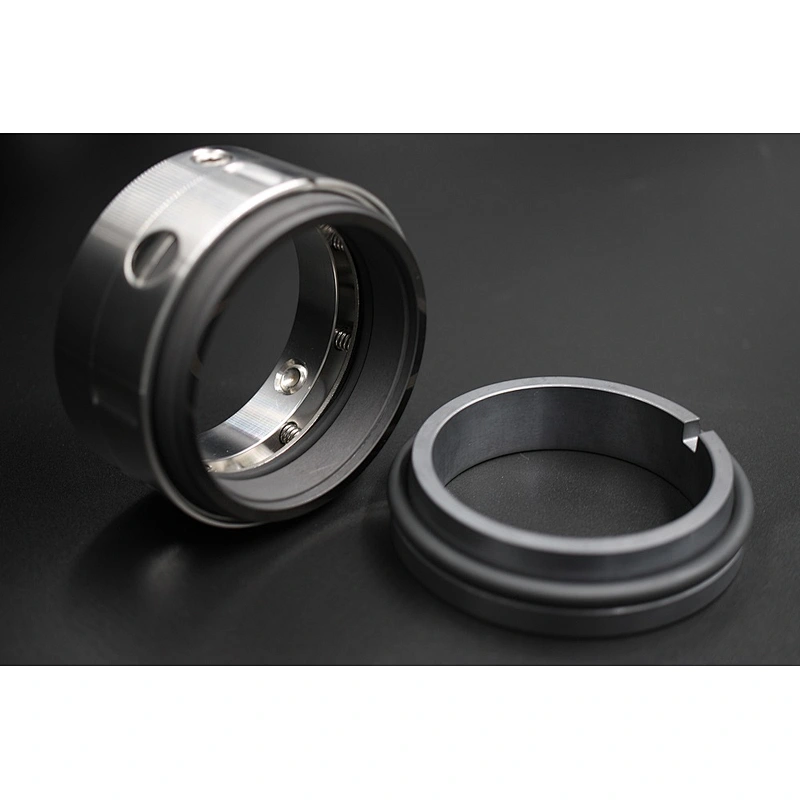

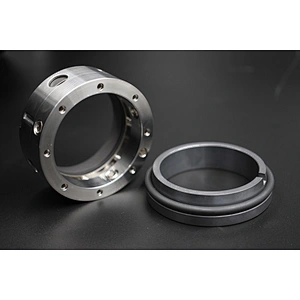

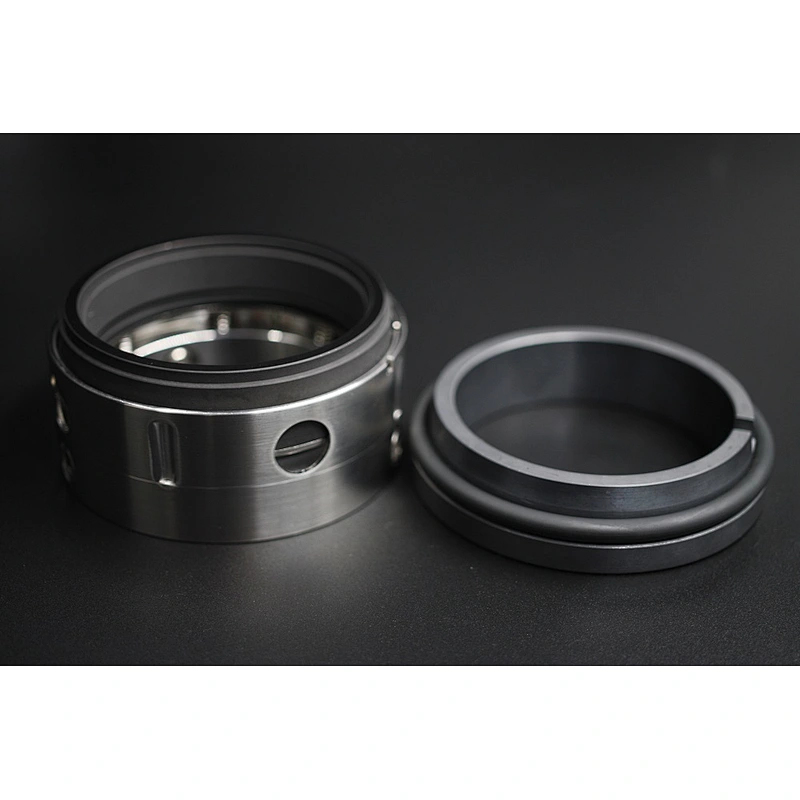

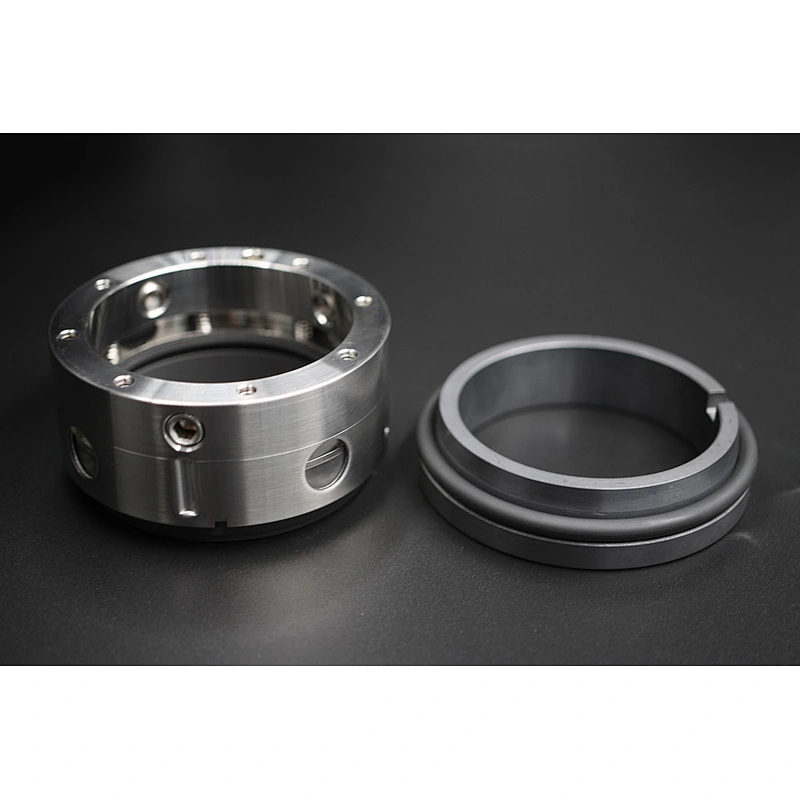

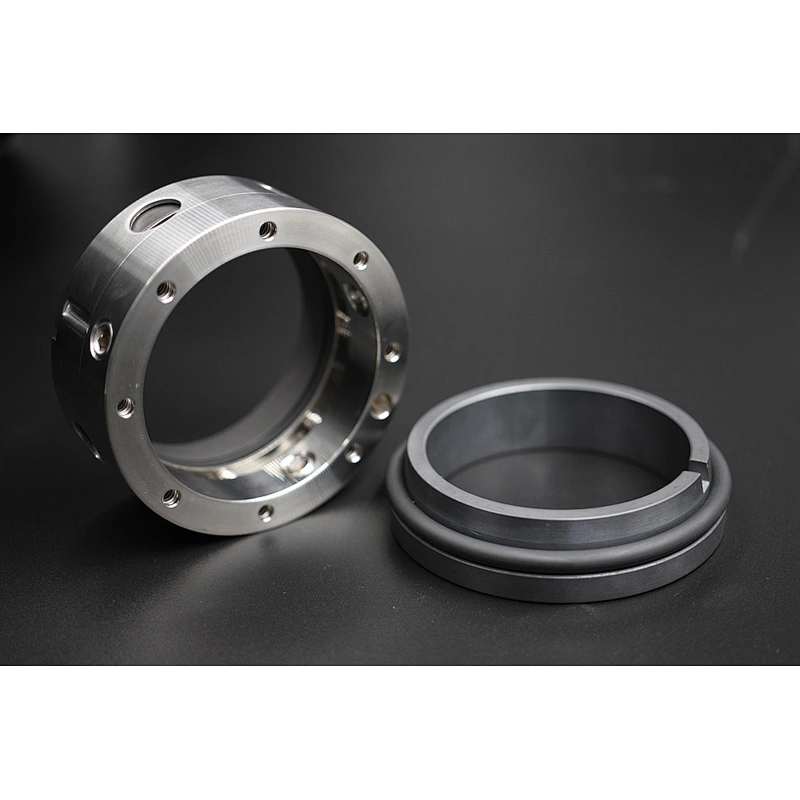

AS-R58U is general purpose DIN, Multi-spring, Elastomer O-ring Pusher seal.It is to replace AES M03S,Vulcan 1659S，Johncrane 58U，Sterling 259S and Burgmann BT-C5KU seals.
Features
A versatile design with multiple material options for the widest range of liquids and temperatures
For general low- to medium-pressure duties in the processing, refinery and petrochemical industries.
Narrow profile, metric shaft, multiple spring Mechanical Seal with a highly efficient design
Frequently fitted with Type 24 DIN Long 'O'-Ring stationary seals
A PTFE backup ring is recommended to be specified for higher pressure ‘O’-Ring applications.
Recommended applications：
Process Pumps（oils, solvents, water and refrigerants,a multitude of chemical solutions）
