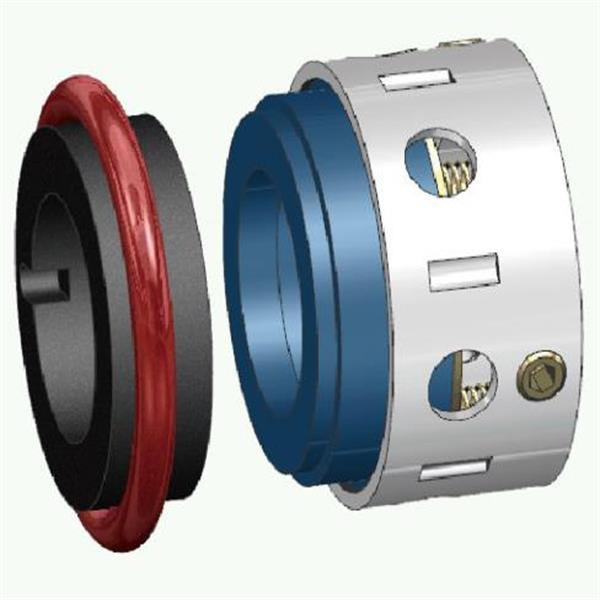

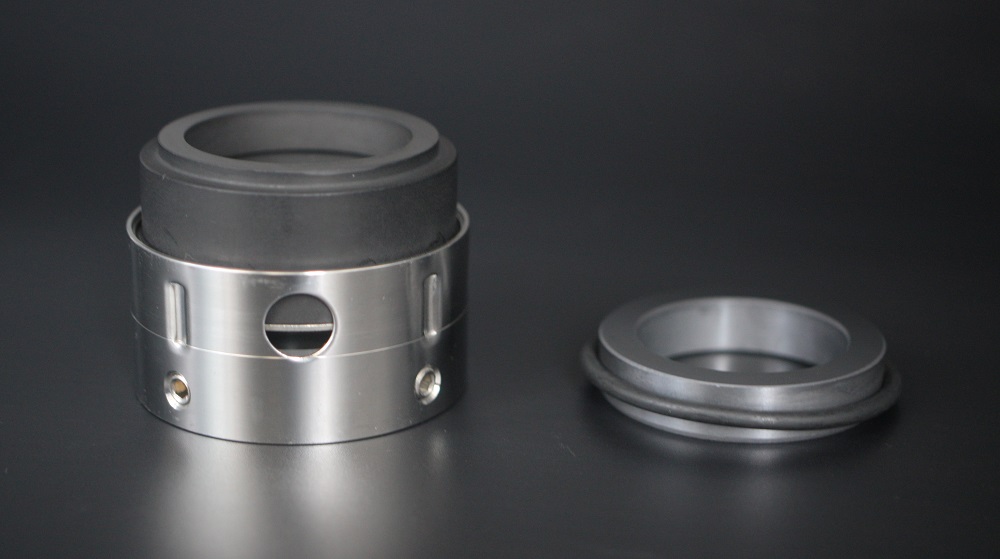

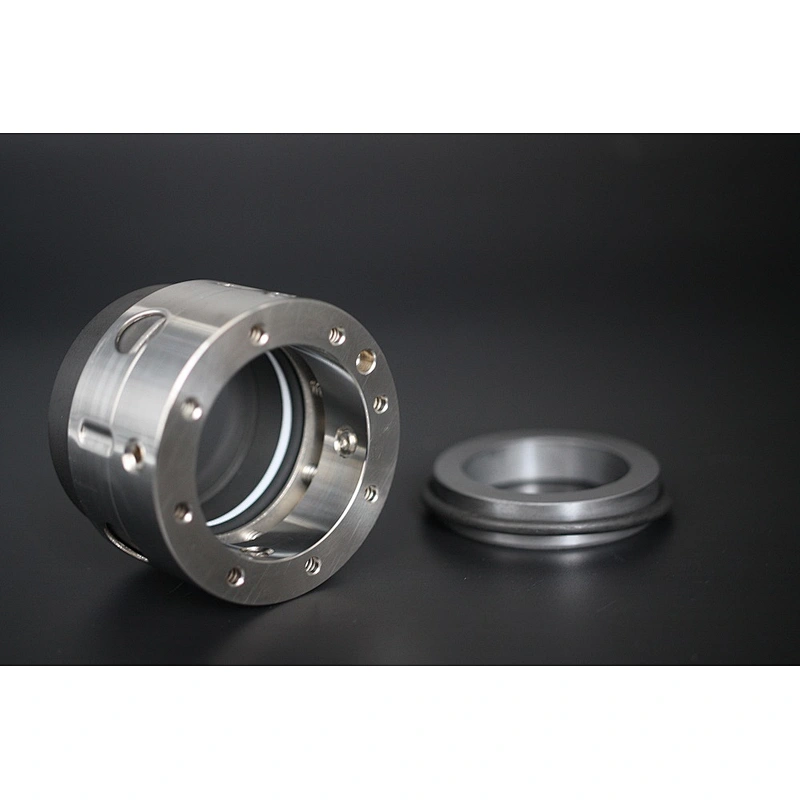

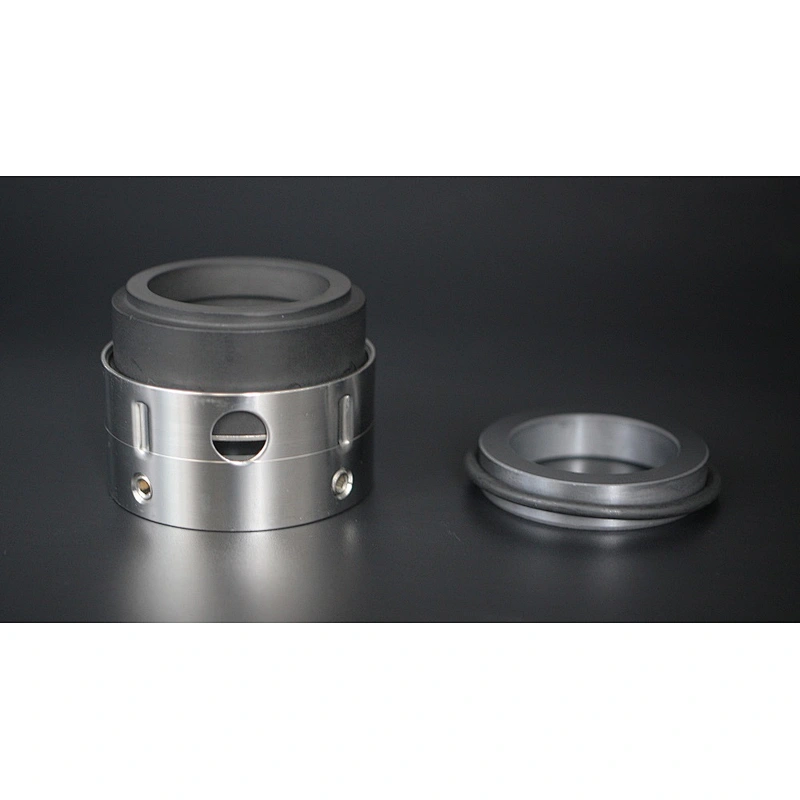

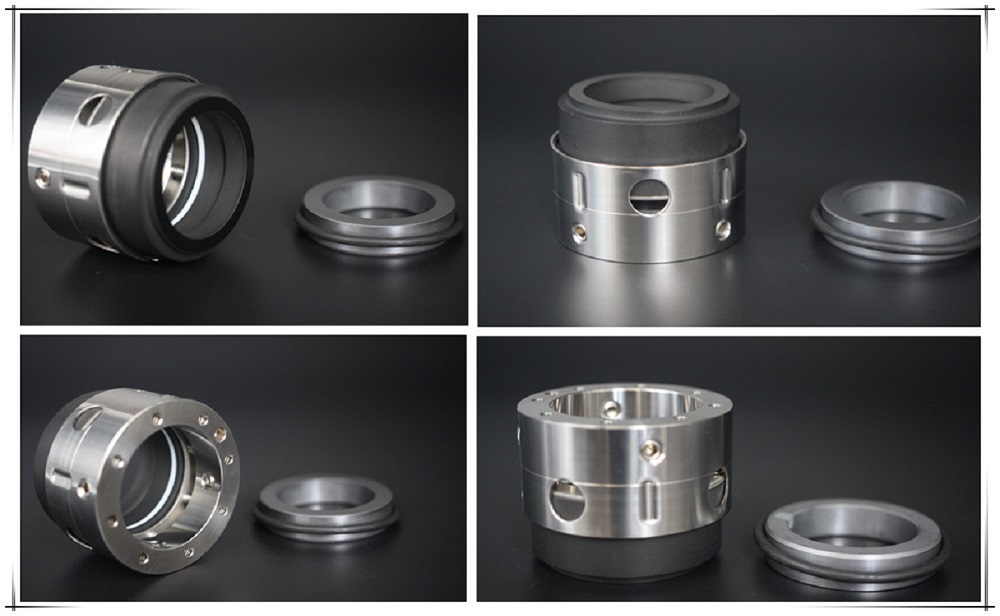

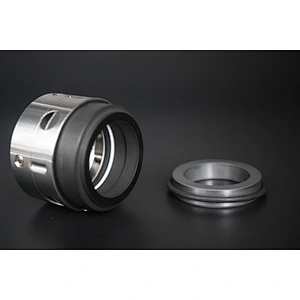

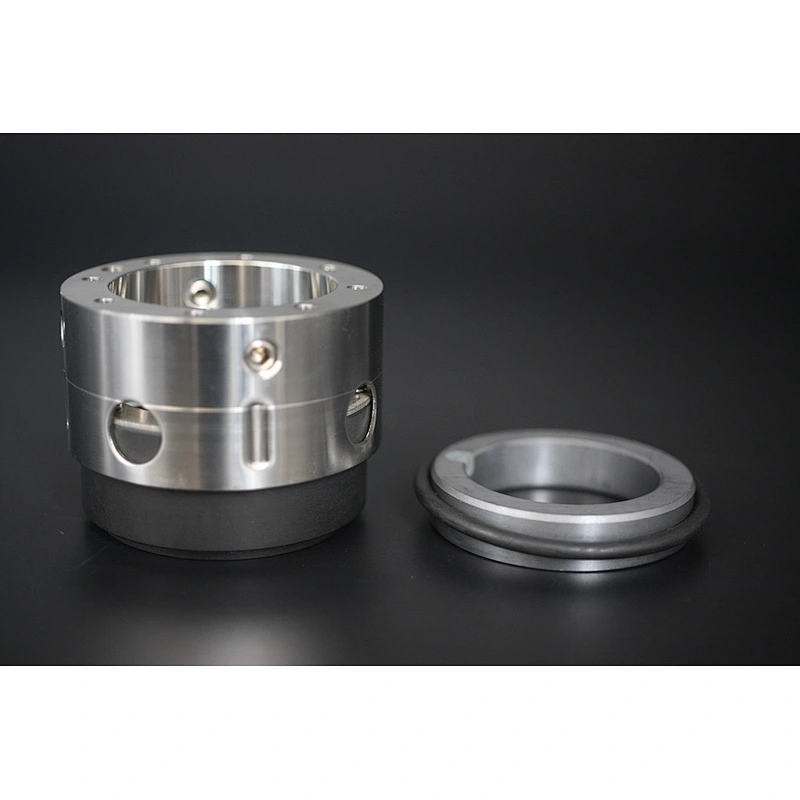

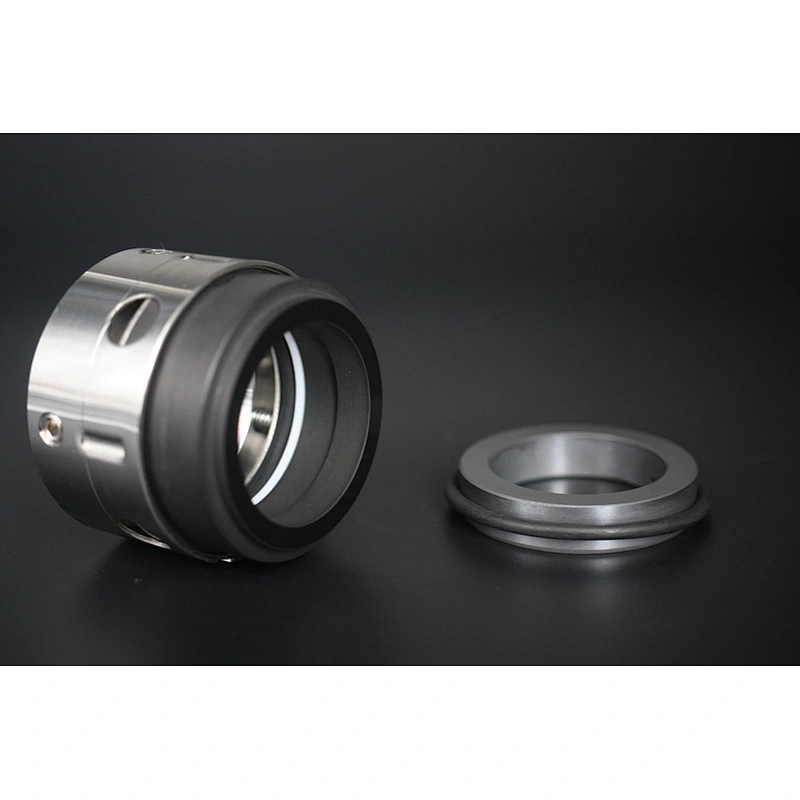

AS-R8BT is to replace Pump seal Johncrane 8BT
SUGGESTED OPERATING LIMITS
Temperature:-20-180℃
Speed: ≤15m/s
Pressure:≤ 2.5Mpa
COMBINED MATERIAL
Rotary face: Carbon/SIC/TC
Stat Ring: Ceramic/SIC/TC
Seat Type: Standard AS-SP, Alternative AS-ORSA
Description
Narrow profile, multiple spring seal, designed for the common American ANSI B73-1974 standard.
It is balanced designs for stepped-shafts.

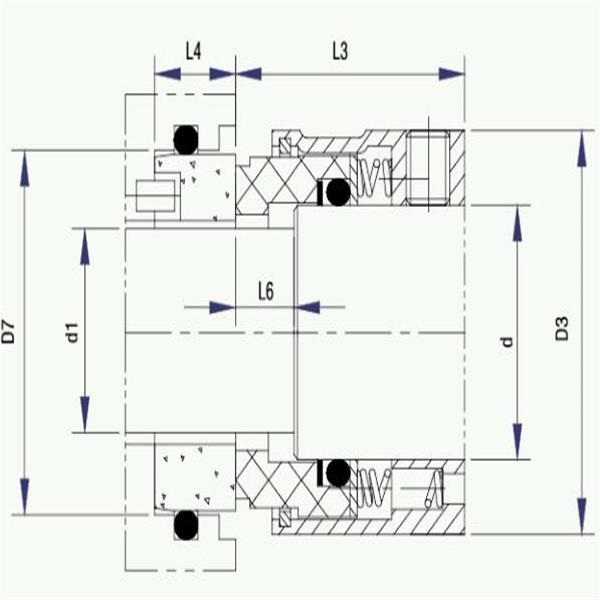

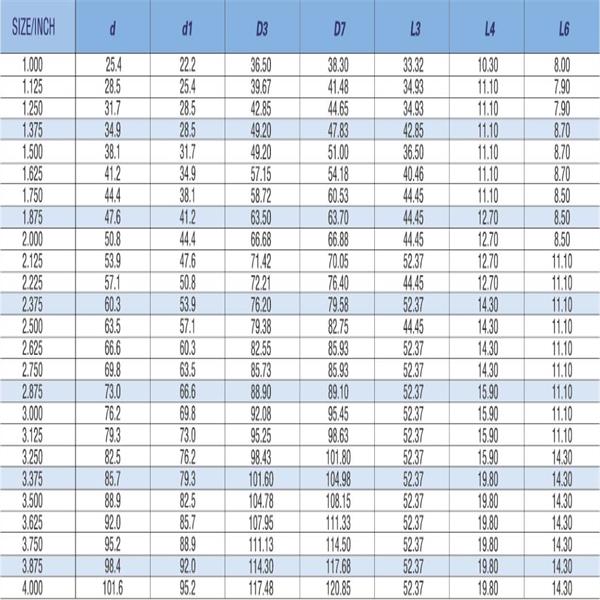

The stock size is always set by the shaft size under the seal body.
A PTFE backup ring is recommended to be specified for higher pressure ‘O’-Ring applications.
