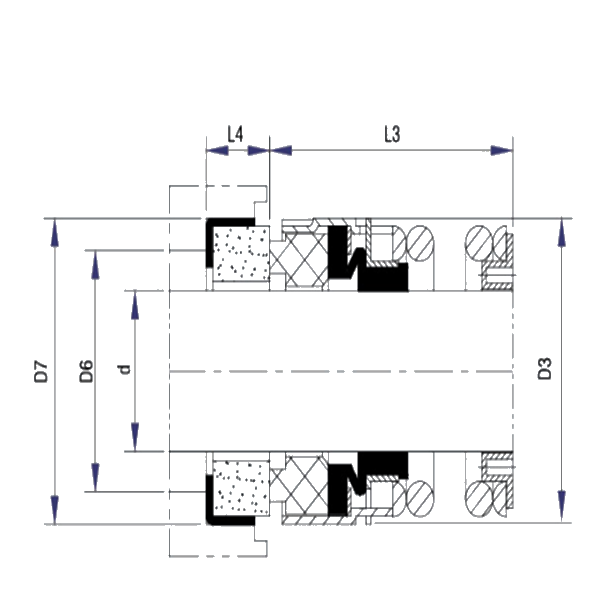

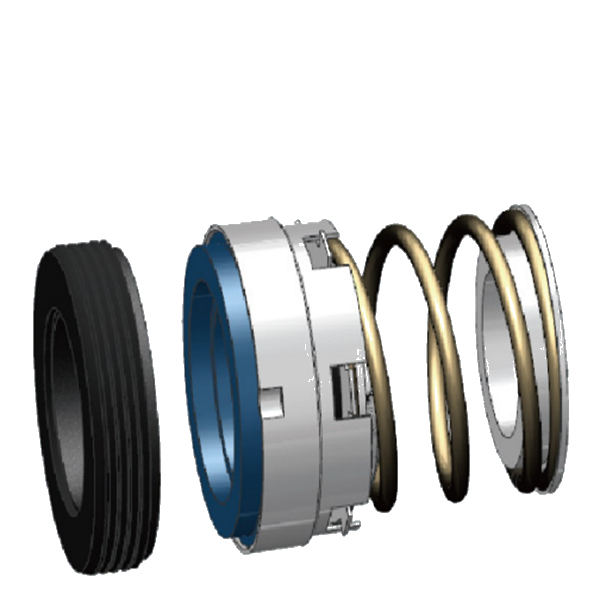

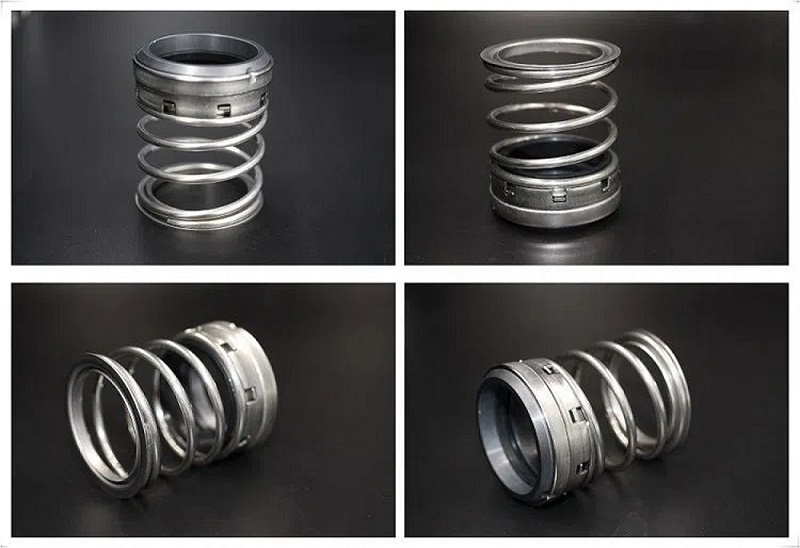

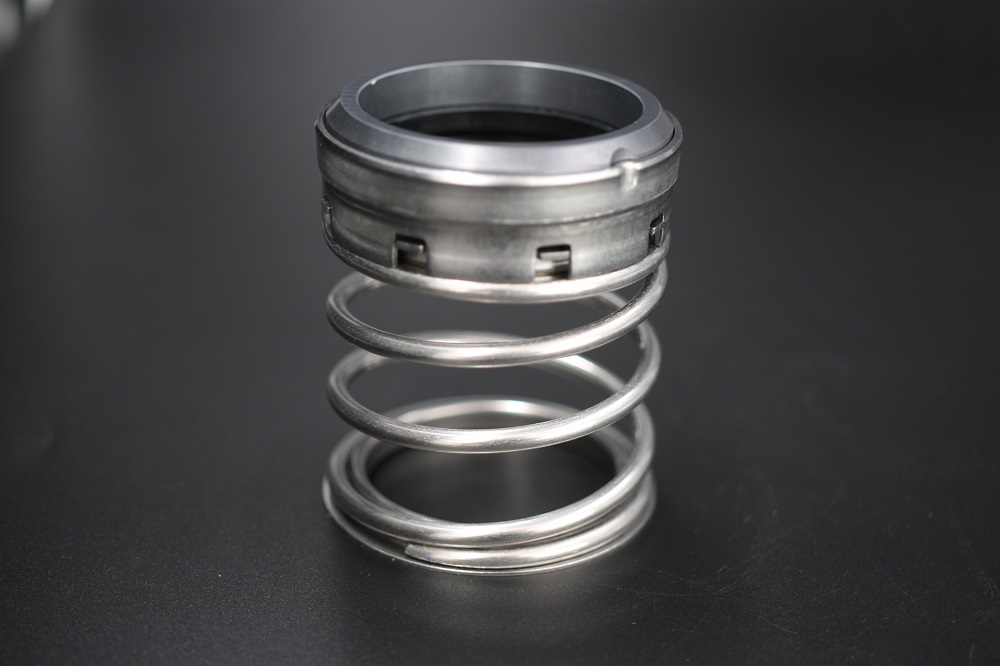

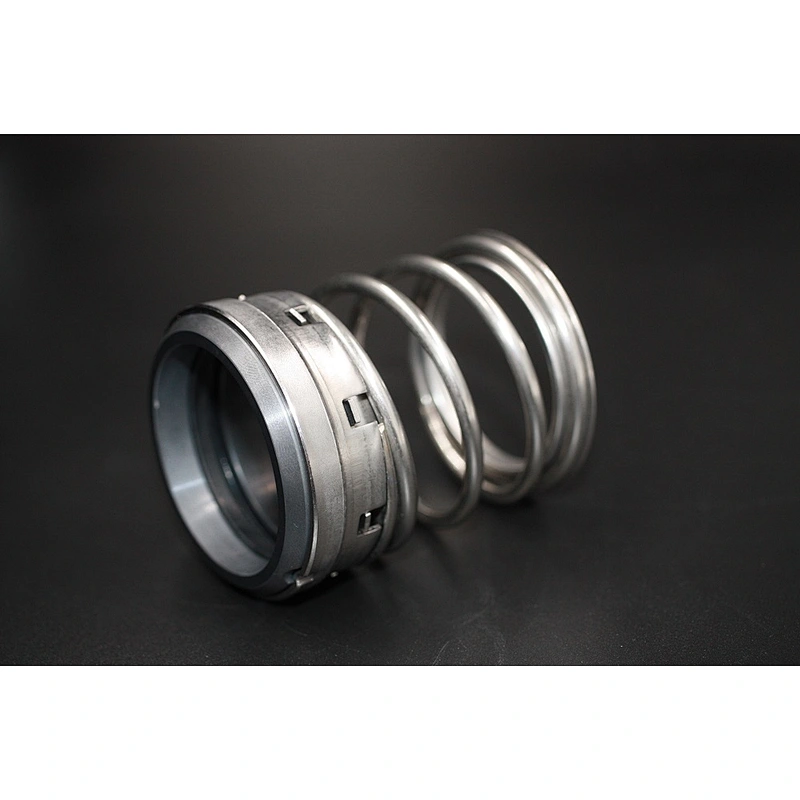

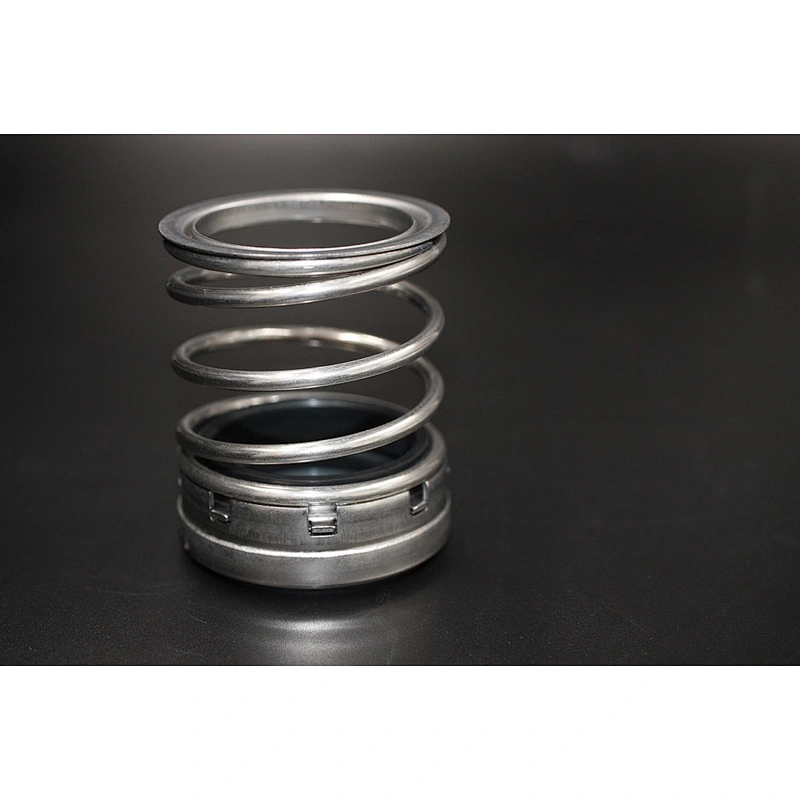

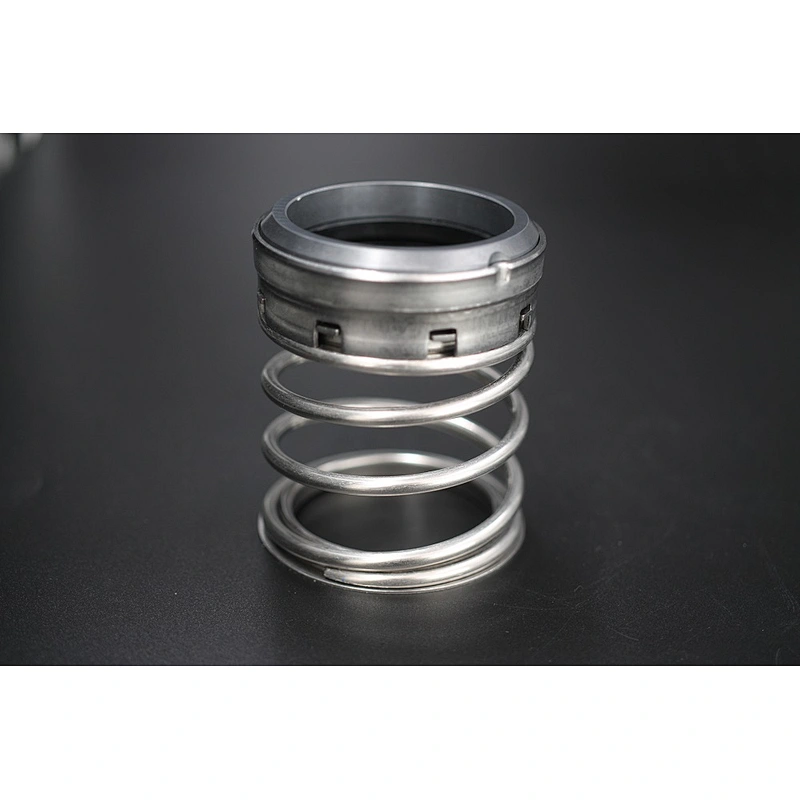

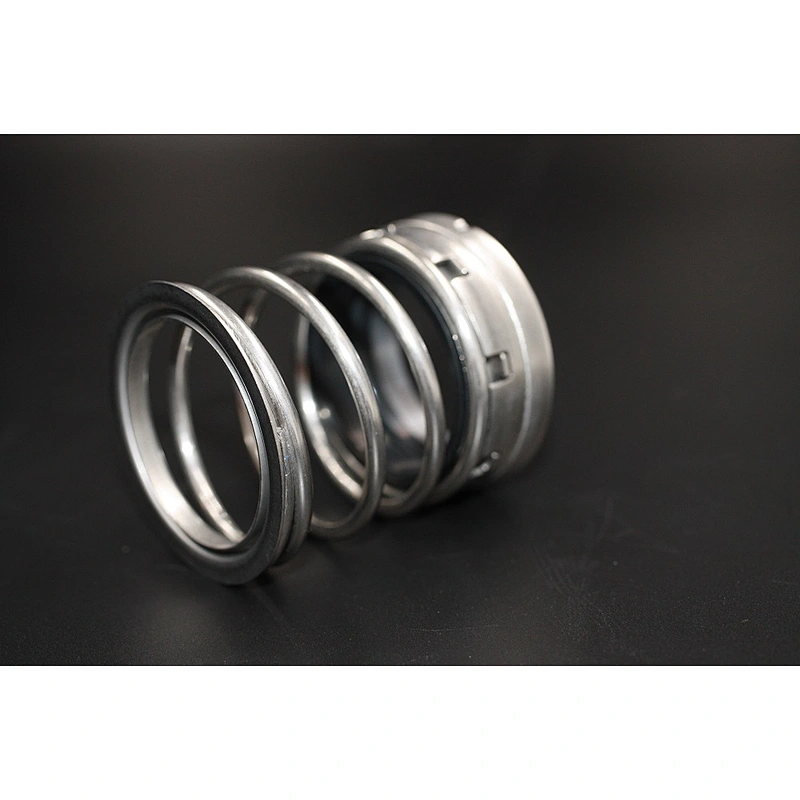

AS-E01 elastomer bellow seal

Suggested operating limits

Temperature: -20 ～120℃

Speed: ≤15m/s

Pressure≤1.4Mpa

Combined material

Rotary face: Carbon/Sic/TC

Stat Ring: Ceramic/Sic/TC

Features

⑴To absorb both breakout and running torque, the seal is designed with a drive band and drive notches that eliminate overstressing of bellows. Slippage is eliminated, protecting the shaft and sleeve from wear and scoring.

⑵Automatic adjustment compensates for abnormal shaft-end play, run-out, primary ring wear and equipment tolerances. Uniform spring pressure compensates for axial and radial shaft movement.

⑶Special balancing accommodates higher-pressure applications, greater operating speeds and lower wear.

⑷Non-clogging, single-coil spring allows for greater dependability than multiple spring designs. Will not run foul due to fluid contact

⑸Low drive torque improves performance and reliability.

Recommended Application

⑴Process Pumps

⑵Other Rotating Equipment
